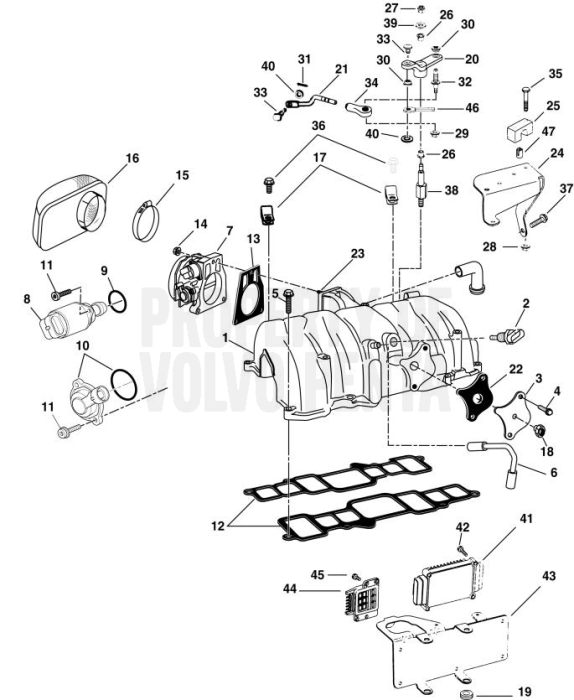

Intake Manifold, Upper


1.	Exhaust manifold, upper (3857685) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
2.	Sensor (3854527) Price: $167.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Cover, EGR opening (3857186) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
4.	Hexagon screw, EGR cover (3858499) Price: $10.90 SUGGESTED QTY:2 VIEW DETAILS
5.	Bolt, upper to lower intake (3857473) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Obsolete part VIEW DETAILS
6.	Tube (3857488) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
7.	Throttle body (3857691) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
8.	Iac valve (3843751) Price: $388.00 SUGGESTED QTY:1 VIEW DETAILS
9.	O-ring, IAC (3858054) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
10.	Sensor (3857487) Price: $198.00 SUGGESTED QTY:1 VIEW DETAILS
11.	Screw, IAC and TPS (3857693) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
12.	Gasket, upper to lower intake (3857475) Price: $97.40 SUGGESTED QTY:2 VIEW DETAILS
13.	Gasket, throttle body to intake (3857476) Price: $20.70 SUGGESTED QTY:1 VIEW DETAILS
14.	Nut, throttle body attachment (3857679) Price: $7.20 SUGGESTED QTY:3 VIEW DETAILS
15.	Hose clamp, flame arrestor (3852604) Price: $9.80 SUGGESTED QTY:1 VIEW DETAILS
16.	Flame shield (3856980) Price: $212.00 SUGGESTED QTY:1 VIEW DETAILS
17.	Clamp, fuel lines to plenum (3857437) This product has been discontinued Price: $233.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
18.	Fitting, pulse limiter elbow to EGR cover (3857436) Price: $6.20 SUGGESTED QTY:1 VIEW DETAILS
19.	Grommet, ECU bracket (941263) Price: $1.50 SUGGESTED QTY:2 VIEW DETAILS
20.	Intermediate lever (3854741) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
21.	Link, throttle lever to throttle body (3856974) Price: $9.55 SUGGESTED QTY:1 VIEW DETAILS
22.	Gasket, EGR cover (3857226) Price: $10.60 SUGGESTED QTY:1 VIEW DETAILS
23.	Stud, throttle body attachment (3857486) Price: $36.80 SUGGESTED QTY:3 VIEW DETAILS
24.	Bracket (3856983) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
25.	Anchor (3850266) Obsolete no longer made Price: $23.29 SUGGESTED QTY:1 VIEW DETAILS
26.	Bushing (3852094) Price: $5.80 SUGGESTED QTY:2 VIEW DETAILS
27.	Nut, throttle (3852005) Price: $4.40 SUGGESTED QTY:1 VIEW DETAILS
28.	Nut, throttle (3852118) Price: $7.10 SUGGESTED QTY:1 VIEW DETAILS
29.	Nut, throttle (3853729) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
30.	Nut, throttle (3854744) Price: $49.90 SUGGESTED QTY:3 VIEW DETAILS
31.	Split pin, throttle (3852052) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
32.	Pin, throttle (3857490) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
33.	Pin, throttle (3854743) Price: $22.70 SUGGESTED QTY:2 VIEW DETAILS
34.	Swivel, throttle (3857491) Price: $12.41 SUGGESTED QTY:1 VIEW DETAILS
35.	Screw, anchor (3852048) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
36.	Flange screw, engine oil cooler bracket to engine (3852115) Price: $7.90 SUGGESTED QTY:2 VIEW DETAILS
37.	Flange screw, engine oil cooler bracket to engine (3852115) Price: $7.90 SUGGESTED QTY:2 VIEW DETAILS
38.	Spacer, throttle lever (3856975) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
39.	Washer, throttle lever (3852189) Price: $4.80 SUGGESTED QTY:1 VIEW DETAILS
40.	Washer, throttle lever (3852193) Price: $6.70 SUGGESTED QTY:1 VIEW DETAILS
41.	Engine control modul (21242085) Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
41.	Engine control modul (21242085) Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
42.	Flange screw, ECU to bracket (3852053) Price: $7.90 SUGGESTED QTY:4 VIEW DETAILS
43.	Bracket, oil fill, ECU (3856949) This product has been discontinued Price: $56.85 SUGGESTED QTY:1 VIEW DETAILS
44.	Module (3854521) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
45.	Flange screw, knock module (3852115) Price: $7.90 SUGGESTED QTY:1 VIEW DETAILS
46.	Split pin, throttle (3852052) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
47.	Retainer, throttle cable (3852019) Obsolete no longer made Price: $4.71 SUGGESTED QTY:1 VIEW DETAILS

48 Items

Grouped product items
Product Name	Qty
Exhaust manifold, upper $99,999.00
Sensor $167.00
Cover, EGR opening $99,999.00
Hexagon screw, EGR cover $10.90
Bolt, upper to lower intake $99,999.00
Tube $99,999.00
Throttle body $99,999.00
Iac valve $388.00
O-ring, IAC $99,999.00
Sensor $198.00
Screw, IAC and TPS $99,999.00
Gasket, upper to lower intake $97.40
Gasket, throttle body to intake $20.70
Nut, throttle body attachment $7.20
Hose clamp, flame arrestor $9.80
Flame shield $212.00
Clamp, fuel lines to plenum $233.00
Fitting, pulse limiter elbow to EGR cover $6.20
Grommet, ECU bracket $1.50
Intermediate lever $99,999.00
Link, throttle lever to throttle body $9.55
Gasket, EGR cover $10.60
Stud, throttle body attachment $36.80
Bracket $99,999.00
Anchor $23.29
Bushing $5.80
Nut, throttle $4.40
Nut, throttle $7.10
Nut, throttle $99,999.00
Nut, throttle $49.90
Pin, throttle $99,999.00
Pin, throttle $22.70
Swivel, throttle $12.41
Screw, anchor $99,999.00
Flange screw, engine oil cooler bracket to engine $7.90
Spacer, throttle lever $99,999.00
Washer, throttle lever $4.80
Washer, throttle lever $6.70
Engine control modul $99,999.00
Engine control modul $99,999.00
Flange screw, ECU to bracket $7.90
Bracket, oil fill, ECU $56.85
Module $99,999.00
Flange screw, knock module $7.90
Split pin, throttle $1.00
Retainer, throttle cable $4.71
