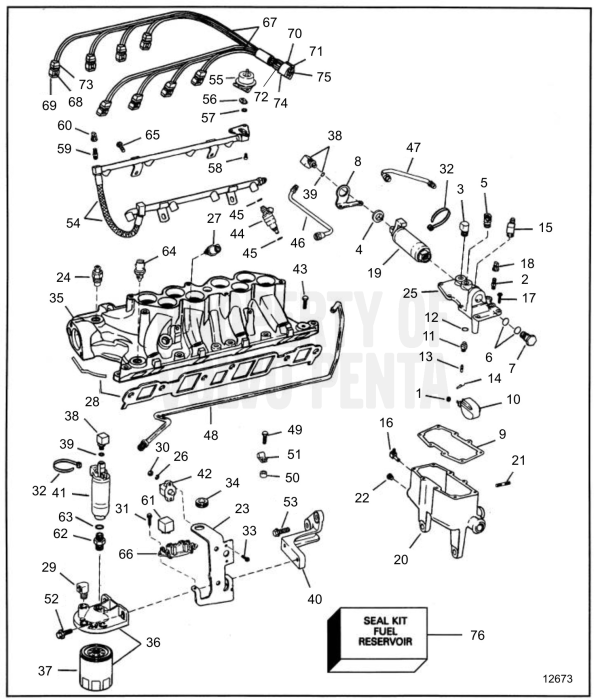

Fuel System & Lower Intake Manifold


1.	Retainer, float to pin (3852034) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
2.	Valve, reservoir assy (3854152) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
3.	Fitting, cover, reservoir assy, return (3852453) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
5.	Fitting, pump to reservoir (3852506) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Low pressure fu... VIEW DETAILS
7.	Retainer, fuel pump to cover (3853572) This product has been discontinued Price: $6.50 SUGGESTED QTY:1 Reservoir assy,... VIEW DETAILS
8.	Bracket, fuel pump grommet, reservoir assy (3853573) This product has been discontinued Price: $5.60 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
9.	Gasket, cover, reservoir assy (3857728) Price: $80.10 SUGGESTED QTY:1 VIEW DETAILS
10.	Float, reservoir assy (3853575) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
11.	Spring seat, float needle, reservoir assy (3853576) Obsolete no longer made Price: $18.30 SUGGESTED QTY:1 VIEW DETAILS
12.	Gasket, float needle seat, reservoir assy (3853577) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
13.	Needle, float, reservoir assy THIS PRODUCT HAS BEEN DISCONTINUED
16.	Elbow, reservoir to thermostat hsg (3852480) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
17.	Screw, cover to reservoir (3853606) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Obsolete part, ... VIEW DETAILS
18.	Protective cap, pressure valve (3853616) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
19.	Fuel pump, electric (3857650) Price: $443.00 SUGGESTED QTY:1 High pressure VIEW DETAILS
20.	Reservoir (3854149) Obsolete no longer made Price: $469.34 SUGGESTED QTY:1 VIEW DETAILS
22.	Plug, reservoir drain (3852167) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
23.	Bracket, support, fuel pump & relay mounting (3853544) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
24.	Breaker, water temperature (3854710) This product has been discontinued Price: $168.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
25.	Cardboard tube, reservoir (3854405) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
26.	Spring washer, circuit breaker terminals (3852001) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part, ... VIEW DETAILS
27.	Sensor, air charge temperature (3854158) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
28.	Intake gasket kit, intake manifold (3854406) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
29.	Elbow, inlet, fuel filter cover (3852013) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
30.	Nut, circuit breaker terminals (3852064) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part, ... VIEW DETAILS
31.	Screw, relay & cable assy (3852208) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 VIEW DETAILS
35.	Manifold (3854301) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
36.	Kit (3850861) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
37.	Fuel filter (3862228) Price: $17.80 SUGGESTED QTY:1 VIEW DETAILS
38.	Fitting, fuel pump THIS PRODUCT HAS BEEN DISCONTINUED
40.	Bracket, pump, filter, circuit breaker & support (3853570) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
41.	Fuel pump, low pressure (3857985) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
43.	Bolt, intake manifold (3853036) This product has been discontinued Price: $28.00 SUGGESTED QTY:1 VIEW DETAILS
44.	Injector, Fi, Fsi (3854136) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Obsolete part VIEW DETAILS
44.	Injector, Fsi (3850925) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Obsolete part, ... VIEW DETAILS
45.	O-ring (3853733) Price: $8.31 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
46.	Fuel pipe, reservoir to fuel line, feed (3854142) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
47.	Fuel pipe, regulator to reservoir (3854143) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
49.	Screw, clamp & spacer to valve cover (955514) Price: $1.10 SUGGESTED QTY:1 VIEW DETAILS
50.	Bushing, clamp, fuel line to volve cover (3853617) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
51.	Attaching clamp, fuel line to valve cover, port (3852231) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
52.	Flange screw, fuel pump cover (944429) Price: $3.80 SUGGESTED QTY:1 VIEW DETAILS
53.	Screw, flywheel hsg to engine (3853558) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
54.	Fuel pipe, fuel injectors to intake (3854141) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
55.	Regulator kit (3854237) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
56.	Gasket (3853737) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
57.	O-ring (3853738) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
58.	Screw (3853739) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:3 Obsolete part VIEW DETAILS
59.	Valve, reservoir assy (3854152) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
60.	Protective cap, pressure valve (3853616) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
61.	Relay, fuel pump (3857533) Price: $36.80 SUGGESTED QTY:1 VIEW DETAILS
64.	Sensor, coolant temperature (3854159) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
65.	Screw, fuel line assy to intake manifold (3852213) This product has been discontinued Price: $17.00 SUGGESTED QTY:4 Obsolete part, ... VIEW DETAILS
66.	Bracket, relay (3852210) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
67.	Wiring harness (3854150) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
68.	Connector, injector (3852260) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 VIEW DETAILS
70.	Connector (3853708) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
71.	Retainer (3853709) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
72.	Terminal (3853710) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
73.	Receptacle, injector (3853711) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Obsolete part VIEW DETAILS
74.	Plug, connector seal (3852230) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
75.	Terminal (3853740) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Obsolete part VIEW DETAILS
76.	Kit, fuel reservoir (3850374) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS

63 Items

Grouped product items
Product Name	Qty
Retainer, float to pin $99,999.00
Fitting, cover, reservoir assy, return $99,999.00
Fitting, pump to reservoir $99,999.00
O-ring, retainer, fuel pump $3.20
Retainer, fuel pump to cover $6.50
Bracket, fuel pump grommet, reservoir assy $5.60
Gasket, cover, reservoir assy $80.10
Float, reservoir assy $99,999.00
Spring seat, float needle, reservoir assy $18.30
Gasket, float needle seat, reservoir assy $99,999.00
Clip, needle to float, reservoir assy $3.60
Elbow, vent, reservoir to intake $24.80
Elbow, reservoir to thermostat hsg $99,999.00
Screw, cover to reservoir $99,999.00
Fuel pump, electric $443.00
Reservoir $469.34
Stud, bracket & cooler mount $32.60
Plug, reservoir drain $99,999.00
Bracket, support, fuel pump & relay mounting $99,999.00
Breaker, water temperature $168.00
Cardboard tube, reservoir $99,999.00
Spring washer, circuit breaker terminals $99,999.00
Sensor, air charge temperature $99,999.00
Intake gasket kit, intake manifold $99,999.00
Elbow, inlet, fuel filter cover $99,999.00
Nut, circuit breaker terminals $99,999.00
Screw, relay & cable assy $99,999.00
Cable tie, cable to fuel pump assy $0.50
Hexagon screw, circuit breaker to bracket $0.80
Grommet, fuel pump to cover, reservoir assy $6.20
Manifold $99,999.00
Kit $99,999.00
Fuel filter $17.80
O-ring, fitting $3.20
Bracket, pump, filter, circuit breaker & support $99,999.00
Fuel pump, low pressure $0.00
Automatic fuse, 20A, fuel pump $121.00
Bolt, intake manifold $28.00
Injector, Fi, Fsi $99,999.00
Injector, Fsi $99,999.00
O-ring $8.31
Fuel pipe, reservoir to fuel line, feed $99,999.00
Fuel pipe, regulator to reservoir $99,999.00
Fuel pipe, fuel pump to reservoir, low pressure $23.80
Screw, clamp & spacer to valve cover $1.10
Bushing, clamp, fuel line to volve cover $99,999.00
Attaching clamp, fuel line to valve cover, port $99,999.00
Flange screw, fuel pump cover $3.80
Screw, flywheel hsg to engine $99,999.00
Fuel pipe, fuel injectors to intake $99,999.00
Regulator kit $99,999.00
Gasket $99,999.00
O-ring $99,999.00
Screw $99,999.00
Valve, reservoir assy $99,999.00
Protective cap, pressure valve $99,999.00
Relay, fuel pump $36.80
Fitting, fuel pump to fuel filter cover $58.40
O-ring, fitting $3.60
Sensor, coolant temperature $99,999.00
Screw, fuel line assy to intake manifold $17.00
Bracket, relay $99,999.00
Wiring harness $99,999.00
Connector, injector $99,999.00
Terminal $1.10
Connector $99,999.00
Retainer $99,999.00
Terminal $99,999.00
Receptacle, injector $99,999.00
Plug, connector seal $99,999.00
Terminal $99,999.00
Kit, fuel reservoir $99,999.00
