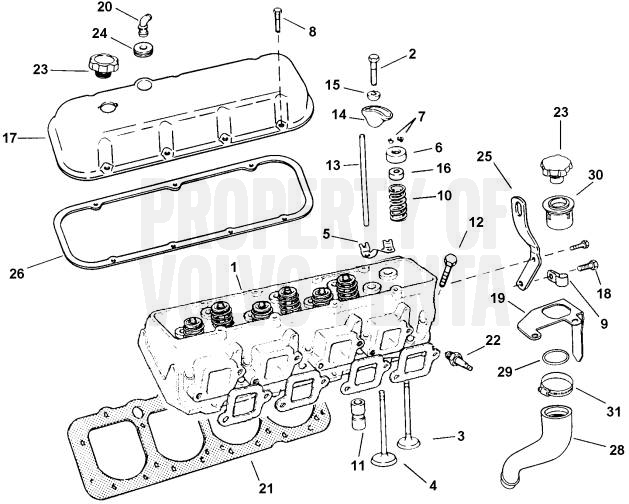

Cylinder Head


1.	Cylinder head (3854768) Price: $1,513.00 SUGGESTED QTY:2 VIEW DETAILS
4.	Valve, 0.030 in. os (3853490) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
4.	Valve, standard (3853487) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Obsolete part VIEW DETAILS
4.	Valve, 0.015 in. os (3853489) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
6.	Rotator, exhaust (3854078) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:8 Obsolete part VIEW DETAILS
9.	Clamp, steering hose (3852837) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
10.	Valve spring, valve (3854765) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:16 VIEW DETAILS
13.	Push rod, intake valve (3853483) Price: $20.23 SUGGESTED QTY:8 VIEW DETAILS
13.	Push rod, exhaust valve (3853484) This product has been discontinued Price: $42.20 SUGGESTED QTY:8 Obsolete part VIEW DETAILS
14.	Rocker arm, valve (3855980) Price: $49.90 SUGGESTED QTY:16 VIEW DETAILS
15.	Ball, rocker arm (3855978) Price: $8.00 SUGGESTED QTY:16 VIEW DETAILS
17.	Valve cover (3856028) Price: $21.50 SUGGESTED QTY:2 VIEW DETAILS
18.	Flange screw, lift bracket (944429) Price: $3.80 SUGGESTED QTY:1 VIEW DETAILS
19.	Bracket, oil fill & shift module to exhaust elbow (3854815) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
25.	Bracket, cylinder head (3854377) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 VIEW DETAILS
27.	Hose, oil fill (3857208) Price: $33.72 SUGGESTED QTY:3 VIEW DETAILS

16 Items

Grouped product items
Product Name	Qty
Cylinder head $1,513.00
Bolt, rocker arm $7.60
Valve, standard $77.90
Valve, standard $99,999.00
Valve, 0.015 in. os $99,999.00
Valve, 0.030 in. os $99,999.00
Guide, push rod $30.30
Valve spring washer, intake $24.90
Rotator, exhaust $99,999.00
Valve cotter, valve stem $4.70
Bolt, valve cover $11.20
Clamp, steering hose $99,999.00
Valve spring, valve $99,999.00
Valve tappet $37.90
Lock screw, cylinder head, short $8.90
Flange screw, cylinder head, long $7.80
Push rod, intake valve $20.23
Push rod, exhaust valve $42.20
Rocker arm, valve $49.90
Ball, rocker arm $8.00
Valve stem seal $27.00
Valve cover $21.50
Flange screw, lift bracket $3.80
Bracket, oil fill & shift module to exhaust elbow $99,999.00
Elbow, valve cover $11.90
Cylinder head gasket $116.00
Spark plug kit $21.10
Oil filler cap, oil , valve cover $21.90
Grommet, valve cover $23.60
Bracket, cylinder head $99,999.00
Gasket, valve cover $168.00
Hose, oil fill $33.72
O-ring, oil fill hose neck to bracket $1.75
Hose connection, to exhaust elbow bracket $30.40
Hose clamp, oil filler hose to neck $4.10
