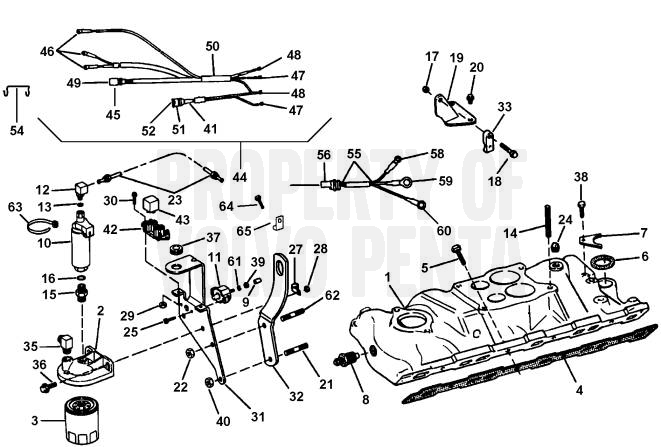

Fuel Pump and Intake Manifold
|
1. |
Inlet pipe (3853890)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
1. |
Shield, intake manifold (3856027)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
2. |
Kit (3850861)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
3. |
Fuel filter (3862228)
Price: $17.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Cover (3850835)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
5. |
Bolt, intake manifold to head (3854653)
Price: $3.92SUGGESTED QTY:12
VIEW DETAILS
|
|
|
8. |
Breaker, water temp, intake manifold (3854710)
Price: $168.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
9. |
Protective cap, breaker assy, fuel pump (3853537)
Price: $99,999.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
10. |
Fuel pump, low pressure (3857985)
Price: $0.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
Screw, anchor, throttle cable to bracket (3852048)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
19. |
Bracket, throttle cable to manifold (3850220)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
20. |
Screw, bracket, throttle anchor (3852086)
Price: $4.18SUGGESTED QTY:2
VIEW DETAILS
|
|
|
23. |
Fuel pipe, fuel pump to carburetor (3854073)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
28. |
Nut, clamp, oil withdrawal tube (3852129)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
29. |
Nut, relay to fuel pump mtg bracket (3852077)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
30. |
Screw, relay & cable assy (3852208)
Price: $99,999.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
31. |
Bracket, fuel filter and fuel pump (3854376)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
32. |
Bracket (3852649)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
33. |
Anchor, throttle cable (3850266)
Price: $23.29SUGGESTED QTY:1
VIEW DETAILS
|
|
|
33. |
Bracket, throttle cable anchor (3851989)
Price: $40.62SUGGESTED QTY:1
Not shown
VIEW DETAILS
|
|
|
34. |
Flange screw (3853419)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
35. |
Elbow, inlet, fuel filter cover (3852013)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
36. |
Flange screw, front mount bracket to engine (3855983)
Price: $4.60SUGGESTED QTY:6
VIEW DETAILS
|
|
|
38. |
Flange screw, distributor clamp to engine (3853557)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
39. |
Nut, circuit breaker (3852064)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
40. |
Nut (22746891)
Price: $4.30SUGGESTED QTY:6
SX, DP-S
VIEW DETAILS
|
|
|
41. |
Trunk, fuel pump (3853681)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
42. |
Bracket, relay (3852210)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
43. |
Relay (3857533)
Price: $36.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
44. |
Cable, fuel pump (3854088)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
46. |
Terminal (3852235)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
47. |
Terminal (3852246)
Price: $99,999.00SUGGESTED QTY:3
Obsolete part
VIEW DETAILS
|
|
|
48. |
Terminal (3852247)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
49. |
Terminal, pin (3852229)
Price: $12.50SUGGESTED QTY:3
Obsolete part
VIEW DETAILS
|
|
|
50. |
Kit (3852258)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
51. |
Connector, fuel pump (3852260)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
53. |
Retainer, cable (3852237)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
56. |
Terminal (3852257)
Price: $99,999.00SUGGESTED QTY:3
Obsolete part
VIEW DETAILS
|
|
|
57. |
Terminal (3852235)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
58. |
Connector (3852037)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
59. |
Spring washer, circuit breaker (3852001)
Price: $99,999.00SUGGESTED QTY:8
Obsolete part
VIEW DETAILS
|
41 Items
