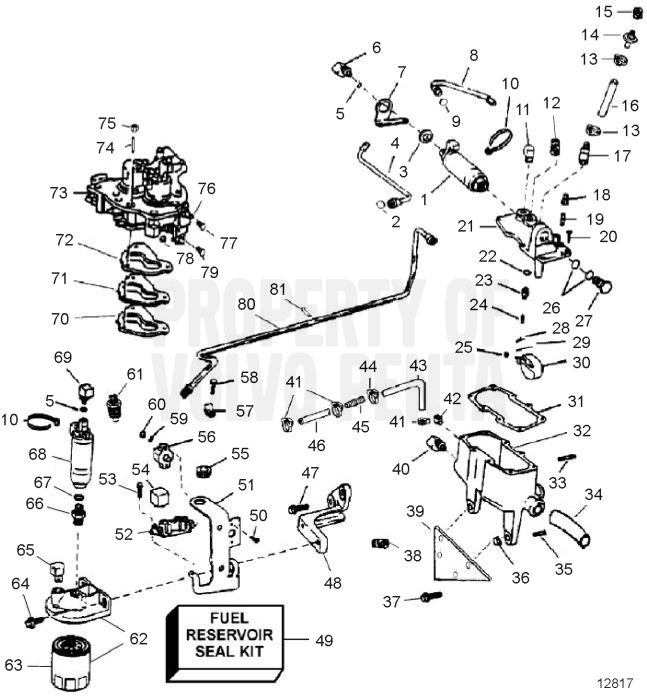

Fuel System
|
1. |
Fuel pump, electric, high pressure (3857650)
Price: $443.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
1. |
Seal (3853605)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
2. |
O-ring, 0.375 in (9.54 mm), fuel line to TBI (3850424)
Price: $3.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Grommet, fuel pump to cover, reservoir assy (3852481)
Price: $6.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
Fuel pipe, HP pump to TBI (3850277)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
5. |
O-ring, fitting (3850820)
Price: $3.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
6. |
Fitting, fuel line (3853494)
Price: $120.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
7. |
Bracket, fuel pump grommet (3853573)
Price: $5.60SUGGESTED QTY:1
Reservoir assy,...
VIEW DETAILS
|
|
|
8. |
Fuel pipe, tBI to reservoir (3850278)
Price: $99,999.00SUGGESTED QTY:1
Return, Obsolet...
VIEW DETAILS
|
|
|
9. |
O-ring, 0.312 in (7.94 mm), fuel line to TBI (3850423)
Price: $4.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
10. |
Cable tie, cable assy to fuel pump assy (3852158)
Price: $0.50SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
11. |
Adapter, fuel line (3852017)
Price: $7.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
12. |
Fitting, tBI to reservoir (3852462)
Price: $11.40SUGGESTED QTY:1
Return
VIEW DETAILS
|
|
|
12. |
Fitting, fuel pump outlet (3852453)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
13. |
Hose clamp, hose, pulse limiter (3852529)
Price: $1.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
14. |
Impulse limiter, reservoir to TBI adapter (3852225)
Price: $63.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
15. |
Elbow, oil pres. sender to adapter (3852503)
Price: $6.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
16. |
Hose, reservoir to pulse limiter (3850689)
Price: $28.43SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Elbow, vent, reservoir to intake (3853597)
Price: $24.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
Protective cap, pressure valve (3853616)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
19. |
Valve, reservoir assy (3854152)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
20. |
Screw, cover to reservoir (3853606)
Price: $99,999.00SUGGESTED QTY:8
Obsolete part
VIEW DETAILS
|
|
|
21. |
Cardboard tube, reservoir assy (3854405)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
22. |
Gasket, float needle seat (3853577)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part, ...
VIEW DETAILS
|
|
|
23. |
Spring seat, float needle (3853576)
Price: $18.30SUGGESTED QTY:1
Reservoir assy
VIEW DETAILS
|
|
|
24. |
Needle, float
THIS PRODUCT HAS BEEN DISCONTINUED
|
|
|
25. |
Retainer, float pin (3852034)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
26. |
O-ring, retainer, fuel pump (3853642)
Price: $3.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
27. |
Retainer, fuel pump to cover (3853572)
Price: $6.50SUGGESTED QTY:1
Obsolete part, ...
VIEW DETAILS
|
|
|
28. |
Clip, needle to float (3853579)
Price: $3.60SUGGESTED QTY:1
Reservoir assy
VIEW DETAILS
|
|
|
29. |
Pin, float hinge, reservoir (3853622)
Price: $1.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
30. |
Float (3853575)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
31. |
Gasket, cover (3857728)
Price: $80.10SUGGESTED QTY:1
Reservoir assy
VIEW DETAILS
|
|
|
32. |
Reservoir (3854149)
Price: $469.34SUGGESTED QTY:1
VIEW DETAILS
|
|
|
33. |
Split pin (3852052)
Price: $1.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
34. |
Hose, reservoir assy to oil cooler (3853580)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
35. |
Screw, reservoir to bracket (3853558)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
36. |
Nut, reservoir to bracket (3850657)
Price: $2.25SUGGESTED QTY:1
VIEW DETAILS
|
|
|
37. |
Flange screw (3853547)
Price: $5.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
38. |
Fitting, reservoir, port nipple (3856449)
Price: $9.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
39. |
Bracket, reservoir to flywheel hsg (3850271)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
40. |
Elbow, reservoir to thermostat hsg (3852480)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
41. |
Hose clamp (3852196)
Price: $1.90SUGGESTED QTY:3
VIEW DETAILS
|
|
|
42. |
Plug, reservoir drain (3852167)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
43. |
Hose (3850653)
Price: $132.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
44. |
Hose clamp (3854925)
Price: $2.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
45. |
Nipple (3850666)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
46. |
Hose (3850633)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
47. |
Flange screw, front mount bracket to engine (3855983)
Price: $4.60SUGGESTED QTY:6
VIEW DETAILS
|
|
|
48. |
Bracket, fuel filter (3853310)
Price: $123.63SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
49. |
Kit, fuel reservoir (3850374)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
50. |
Hexagon screw, circuit breaker to bracket (3853620)
Price: $0.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
51. |
Bracket, fuel pump & relay mounting (3853544)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
52. |
Bracket (3852210)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
53. |
Screw, relay & cable assy (3852208)
Price: $99,999.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
54. |
Relay, fuel pump (3857533)
Price: $36.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
55. |
Grommet, fuel pump to cover, reservoir assy (3852481)
Price: $6.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
56. |
Automatic fuse, 20A, fuel pump (3854163)
Price: $121.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
57. |
Attaching clamp, fuel line (3852231)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
58. |
Flange screw, fuel line clamp to bracket (3852115)
Price: $7.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
59. |
Spring washer (3852001)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
60. |
Nut, circuit breaker terminals (3852064)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part, ...
VIEW DETAILS
|
|
|
61. |
Sensor, water temperature (3852029)
Price: $40.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
62. |
Kit (3850861)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
63. |
Fuel filter (3862228)
Price: $17.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
64. |
Flange screw, fuel pump, support bracket, fuel filter (944429)
Price: $3.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
65. |
Elbow, inlet, fuel filter cover (3852013)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
66. |
Fitting, fuel pump to fuel filter cover (3853493)
Price: $58.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
67. |
O-ring, fitting (3850819)
Price: $3.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
68. |
Fuel pump, low pressure (3857985)
Price: $0.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
69. |
Fitting, fuel line (3853494)
Price: $120.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
70. |
Gasket, adapter to intake manifold (3850405)
Price: $11.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
71. |
Adapter, TBI to intake manifold (3850270)
Price: $264.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
71. |
Plug, adapter, TBI to intake manifold (3850740)
Price: $8.40SUGGESTED QTY:1
Not shown
VIEW DETAILS
|
|
|
72. |
Gasket, TBI to adapter (3850355)
Price: $31.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
73. |
Throttle body (3850354)
Price: $990.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
74. |
Stud, TBI to adapter (3852160)
Price: $6.50SUGGESTED QTY:3
VIEW DETAILS
|
|
|
75. |
Nut, stud, TBI to adapter (3852142)
Price: $5.50SUGGESTED QTY:3
VIEW DETAILS
|
|
|
76. |
Bracket, throttle cable to throttle body assy (3850297)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
77. |
Flange screw, lever & pin assy to throttle body (955524)
Price: $1.00SUGGESTED QTY:1
Upper
VIEW DETAILS
|
|
|
78. |
Nut retainer, shoulder screw, throttle lever to TBI (3854468)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
79. |
Shoulder screw, lever & pin assy to throttle body (3850411)
Price: $13.80SUGGESTED QTY:1
Lower
VIEW DETAILS
|
|
|
80. |
Fuel pipe, lp pump to reservoir (3850276)
Price: $68.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
81. |
Bracket, fuel iine & hose to intake manifold (3850275)
Price: $1,170.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
82. |
Cardboard tube, nipple, throttle body (3856766)
Price: $4.10SUGGESTED QTY:1
Front; not show...
VIEW DETAILS
|
85 Items
