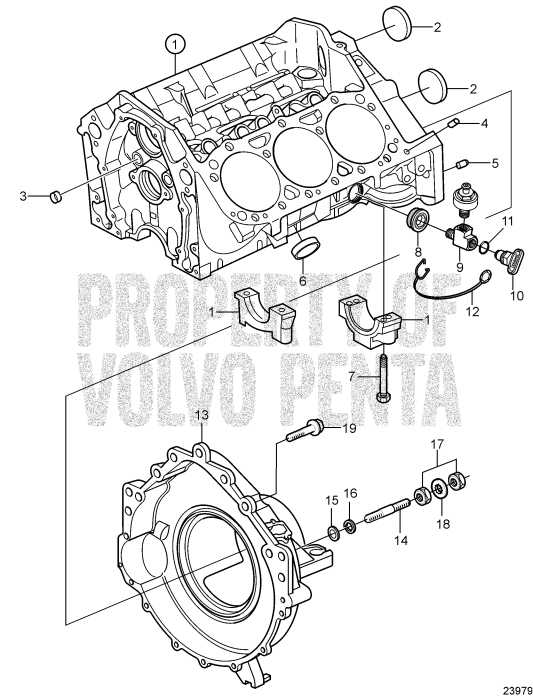

Cylinder Block and Flywheel Housing
|
1. |
Cylinder block (20451181)
Price: $24,060.00SUGGESTED QTY:1
Replaced by 204...
VIEW DETAILS
|
|
|
2. |
Core plug (3853209)
Price: $8.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
3. |
Cap plug (3853208)
Price: $7.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
4. |
Locating pin (3853114)
Price: $4.60SUGGESTED QTY:4
VIEW DETAILS
|
|
|
5. |
Pin (3856001)
Price: $13.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
6. |
Core plug (3852100)
Price: $19.00SUGGESTED QTY:8
VIEW DETAILS
|
|
|
7. |
Bolt (3862355)
Price: $22.70SUGGESTED QTY:10
VIEW DETAILS
|
|
|
8. |
Plug (3593585)
Price: $76.70SUGGESTED QTY:1
Port
VIEW DETAILS
|
|
|
9. |
Fitting (3593571)
Price: $53.00SUGGESTED QTY:1
Port
VIEW DETAILS
|
|
|
9. |
Adapter (3849477)
Price: $26.00SUGGESTED QTY:1
Starboard
VIEW DETAILS
|
|
|
10. |
Drain plug (21114522)
Price: $5.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
10. |
Plug (21114522)
Price: $5.60SUGGESTED QTY:2
Replaced by 211...
VIEW DETAILS
|
|
|
11. |
O-ring (976970)
Price: $9.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
12. |
Retainer (21114522)
Price: $5.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
13. |
Flywheel housing (22151121)
Price: $690.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
14. |
Stud (22287141)
Price: $18.30SUGGESTED QTY:2
VIEW DETAILS
|
|
|
15. |
Washer (980933)
Price: $2.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
16. |
Spring washer (3852046)
Price: $10.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
17. |
Hexagon nut (971071)
Price: $2.10SUGGESTED QTY:6
VIEW DETAILS
|
|
|
18. |
Toothed washer (982679)
Price: $0.70SUGGESTED QTY:4
VIEW DETAILS
|
|
|
19. |
Flange screw (965222)
Price: $5.30SUGGESTED QTY:2
L=65mm
VIEW DETAILS
|
|
|
19. |
Flange screw (946472)
Price: $0.00SUGGESTED QTY:2
L=30mm
VIEW DETAILS
|
22 Items
