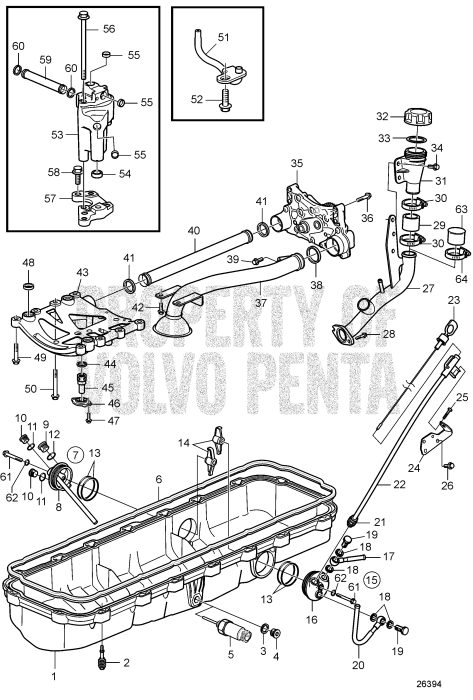

Lubricating System SN1009171203-


1.	Oil pan (23473522) Price: $1,002.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Flange screw (22859766) Price: $2.70 SUGGESTED QTY:18 VIEW DETAILS
3.	Gasket (11998) Price: $2.10 SUGGESTED QTY:1 VIEW DETAILS
4.	Plug (966144) Price: $17.60 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
5.	Contacts and Sensors (7513) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 D9A2A D9-425, D... VIEW DETAILS
6.	Sealing strip (20812484) Price: $51.40 SUGGESTED QTY:1 (8148213) VIEW DETAILS
7.	Cover flange (21152129) Price: $393.00 SUGGESTED QTY:1 VIEW DETAILS
9.	Plug (966143) Price: $8.00 SUGGESTED QTY:1 VIEW DETAILS
10.	Plug (945065) Price: $11.20 SUGGESTED QTY:2 VIEW DETAILS
11.	Gasket (969011) Price: $3.20 SUGGESTED QTY:1 VIEW DETAILS
12.	Gasket (11996) Price: $2.20 SUGGESTED QTY:1 VIEW DETAILS
13.	O-ring (967343) Price: $11.80 SUGGESTED QTY:4 VIEW DETAILS
14.	Wing nut (3812221) Price: $35.30 SUGGESTED QTY:2 VIEW DETAILS
15.	Cover flange (21442157) Price: $499.00 SUGGESTED QTY:1 VIEW DETAILS
16.	Cover (244678) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
17.	Oil pipe (844264) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 OBSOLETE PART VIEW DETAILS
18.	Gasket (982723) Price: $10.90 SUGGESTED QTY:4 VIEW DETAILS
19.	Hollow screw (991048) Price: $11.50 SUGGESTED QTY:2 VIEW DETAILS
20.	Oil pipe (844264) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 OBSOLETE PART VIEW DETAILS
21.	Nipple (3826430) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
22.	Pipe (21442388) Price: $79.50 SUGGESTED QTY:1 VIEW DETAILS
22.	Pipe (21442388) Price: $79.50 SUGGESTED QTY:1 VIEW DETAILS
23.	Oil dipstick (21641187) Price: $107.00 SUGGESTED QTY:1 VIEW DETAILS
24.	Bracket (21321143) Price: $82.00 SUGGESTED QTY:1 VIEW DETAILS
25.	6 point socket screw (975371) Price: $1.70 SUGGESTED QTY:1 VIEW DETAILS
26.	Flange screw (984733) Price: $1.10 SUGGESTED QTY:1 SN-186896 VIEW DETAILS
27.	Oil filler pipe (21275561) Price: $820.00 SUGGESTED QTY:1 VIEW DETAILS
28.	Flange screw (984735) Price: $1.30 SUGGESTED QTY:2 VIEW DETAILS
29.	Hose (22027365) Price: $78.40 SUGGESTED QTY:1 VIEW DETAILS
30.	Hose clamp (994562) Price: $2.00 SUGGESTED QTY:2 VIEW DETAILS
31.	Oil filler pipe (20808091) Price: $53.40 SUGGESTED QTY:1 VIEW DETAILS
32.	Oil filler cap (20807510) Price: $18.40 SUGGESTED QTY:1 VIEW DETAILS
33.	Rubber washer (20365079) Price: $8.70 SUGGESTED QTY:1 VIEW DETAILS
34.	Flange screw (984733) Price: $1.10 SUGGESTED QTY:1 SN-186896 VIEW DETAILS
35.	Oil pump (21736639) Price: $1,001.00 SUGGESTED QTY:1 VIEW DETAILS
36.	Flange screw (984738) Price: $1.20 SUGGESTED QTY:4 VIEW DETAILS
37.	Oil strainer (21118787) Price: $616.00 SUGGESTED QTY:1 VIEW DETAILS
38.	Sealing ring (22374837) Price: $14.40 SUGGESTED QTY:1 VIEW DETAILS
39.	Flange screw (949853) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
40.	Pressure pipe (21322636) Price: $78.40 SUGGESTED QTY:1 VIEW DETAILS
41.	Sealing ring (22275838) Price: $33.90 SUGGESTED QTY:2 VIEW DETAILS
42.	Hexagon screw (984877) Price: $0.80 SUGGESTED QTY:1 VIEW DETAILS
43.	Valve housing (22192190) Price: $376.00 SUGGESTED QTY:1 VIEW DETAILS
44.	Sealing ring (469846) Price: $4.70 SUGGESTED QTY:1 VIEW DETAILS
45.	Reduction valve (22416685) Price: $107.00 SUGGESTED QTY:1 VIEW DETAILS
46.	Cover (471648) Price: $9.90 SUGGESTED QTY:1 VIEW DETAILS
47.	Flange screw (984725) Price: $0.70 SUGGESTED QTY:2 VIEW DETAILS
48.	Sealing ring (469846) Price: $4.70 SUGGESTED QTY:1 VIEW DETAILS
49.	Flange screw (968163) Price: $2.70 SUGGESTED QTY:4 M10x50mm VIEW DETAILS
50.	Flange screw (975103) Price: $4.30 SUGGESTED QTY:4 M10x80mm VIEW DETAILS
51.	Piston cooling jet (8148129) Price: $20.80 SUGGESTED QTY:6 VIEW DETAILS
52.	Flange screw (966378) This product has been discontinued Price: $0.00 SUGGESTED QTY:23 VIEW DETAILS
53.	Intermediate housing (21105100) Price: $120.00 SUGGESTED QTY:1 VIEW DETAILS
54.	Sealing ring (20526428) Price: $5.50 SUGGESTED QTY:1 VIEW DETAILS
55.	Cap plug (955082) Price: $2.00 SUGGESTED QTY:3 VIEW DETAILS
56.	Flange screw (969225) Price: $5.10 SUGGESTED QTY:2 VIEW DETAILS
57.	Adapter (20862692) Price: $47.50 SUGGESTED QTY:1 VIEW DETAILS
58.	Flange screw (984734) Price: $2.00 SUGGESTED QTY:1 VIEW DETAILS
59.	Connection pipe (20951326) Price: $17.50 SUGGESTED QTY:1 VIEW DETAILS
60.	Sealing ring (1677370) Price: $7.50 SUGGESTED QTY:2 VIEW DETAILS
61.	Flange screw (984740) Price: $5.50 SUGGESTED QTY:1 VIEW DETAILS
62.	O-ring (990058) Price: $9.50 SUGGESTED QTY:2 VIEW DETAILS
63.	Rubber cap (837651) Price: $120.00 SUGGESTED QTY:1 VIEW DETAILS
64.	Hose clamp (994561) Price: $1.90 SUGGESTED QTY:1 VIEW DETAILS

64 Items

Grouped product items
Product Name	Qty
Oil pan $1,002.00
Flange screw $2.70
Gasket $2.10
Plug $17.60
Contacts and Sensors Starting at $0.00
Sealing strip $51.40
Cover flange $393.00
Plug $8.00
Plug $11.20
Gasket $3.20
Gasket $2.20
O-ring $11.80
Wing nut $35.30
Cover flange $499.00
Cover $99,999.00
Gasket $10.90
Hollow screw $11.50
Oil pipe $99,999.00
Nipple $99,999.00
Pipe $79.50
Pipe $79.50
Oil dipstick $107.00
Bracket $82.00
6 point socket screw $1.70
Oil filler pipe $820.00
Flange screw $1.30
Hose $78.40
Hose clamp $2.00
Oil filler pipe $53.40
Oil filler cap $18.40
Rubber washer $8.70
Flange screw $1.10
Oil pump $1,001.00
Flange screw $1.20
Oil strainer $616.00
Sealing ring $14.40
Flange screw $0.00
Pressure pipe $78.40
Sealing ring $33.90
Hexagon screw $0.80
Valve housing $376.00
Reduction valve $107.00
Cover $9.90
Flange screw $0.70
Sealing ring $4.70
Flange screw $2.70
Flange screw $4.30
Piston cooling jet $20.80
Flange screw $0.00
Intermediate housing $120.00
Sealing ring $5.50
Cap plug $2.00
Flange screw $5.10
Adapter $47.50
Flange screw $2.00
Connection pipe $17.50
Sealing ring $7.50
Flange screw $5.50
O-ring $9.50
Rubber cap $120.00
Hose clamp $1.90
