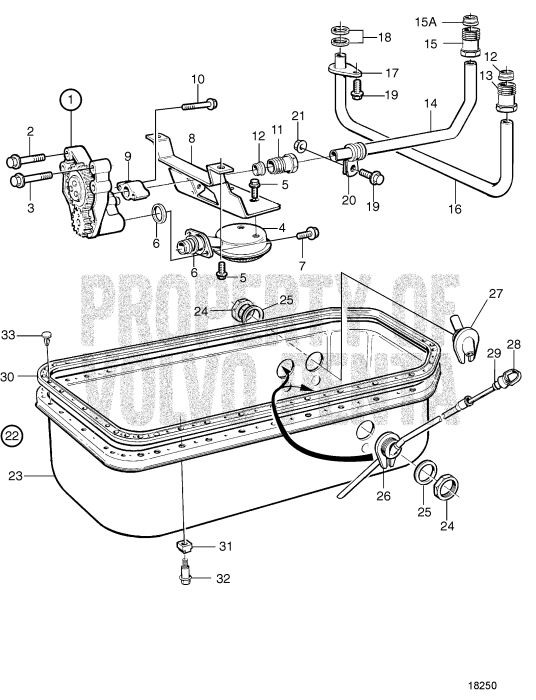

Lubricating System 10° Inclination for IRM 220V-LD/ZF 220IV, MG5062V
|
1. |
Oil pump (477547)
Price: $1,180.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
1. |
Oil Pump, Components: 471733 (1036)
SUGGESTED QTY:1
TAMD63L-A, TAMD...
VIEW DETAILS
|
|
|
2. |
Flange nut (471513)
Price: $6.40SUGGESTED QTY:8
VIEW DETAILS
|
|
|
3. |
Flange screw (471734)
Price: $2.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
4. |
Oil strainer (848941)
Price: $670.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
5. |
Flange screw (946440)
Price: $1.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
6. |
Sealing ring (470383)
Price: $7.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
7. |
Flange screw (965183)
Price: $1.60SUGGESTED QTY:1
M8x90mm
VIEW DETAILS
|
|
|
8. |
Baffle plate (848076)
Price: $62.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
9. |
Spacer (465846)
Price: $110.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
10. |
Flange screw (968553)
Price: $11.30SUGGESTED QTY:2
(973080)
VIEW DETAILS
|
|
|
11. |
Oil feed pipe (471588)
Price: $27.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
12. |
Ferrule (980786)
Price: $8.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13. |
Pressure pipe connec (471595)
Price: $20.60SUGGESTED QTY:1
(471588)
VIEW DETAILS
|
|
|
14. |
Oil pressure pipe (420994)
Price: $285.00SUGGESTED QTY:1
(864765)
VIEW DETAILS
|
|
|
15. |
Pressure pipe connec (471595)
Price: $20.60SUGGESTED QTY:1
(471588)
VIEW DETAILS
|
|
|
15A. |
Ferrule (980786)
Price: $8.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
16. |
Oil pressure pipe (4772187)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
17. |
Clamp (471746)
Price: $7.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
Gasket (471956)
Price: $15.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
19. |
Flange screw (946440)
Price: $1.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
20. |
Attaching clamp (1545433)
Price: $18.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
21. |
Flange nut (990940)
Price: $0.90SUGGESTED QTY:2
(968862)
VIEW DETAILS
|
|
|
23. |
Sump (865755)
Price: $842.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
24. |
Hexagon nut (468948)
Price: $36.00SUGGESTED QTY:3
VIEW DETAILS
|
|
|
25. |
Rubber washer (468947)
Price: $7.90SUGGESTED QTY:3
VIEW DETAILS
|
|
|
26. |
Pipe (3818664)
Price: $194.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
27. |
Pipe (3839159)
Price: $195.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
28. |
Dipstick (866746)
Price: $85.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
29. |
O-ring (925054)
Price: $5.30SUGGESTED QTY:2
VIEW DETAILS
|
|
|
30. |
Gasket (420941)
Price: $212.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
31. |
Rubber cushion (420991)
Price: $4.90SUGGESTED QTY:34
VIEW DETAILS
|
|
|
32. |
Shoulder screw (1556083)
Price: $7.50SUGGESTED QTY:34
VIEW DETAILS
|
|
|
33. |
Plastic rivet (943353)
Price: $0.70SUGGESTED QTY:20
VIEW DETAILS
|
34 Items
