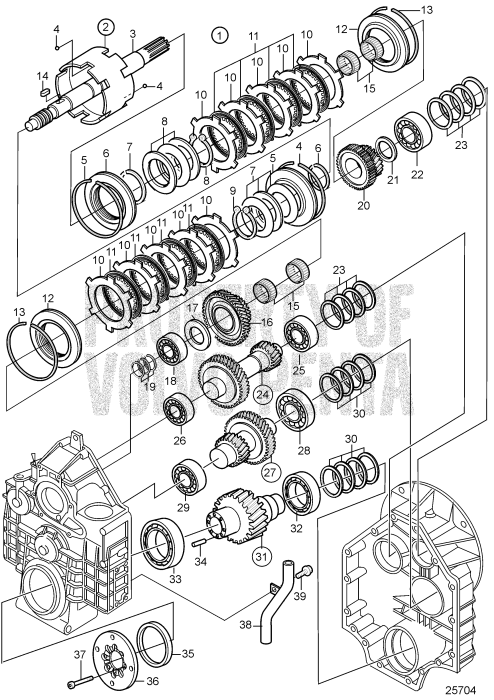

Reverse Gear HS63IV-A, Components: Ratio 2.48:1


1.	Reversing gear (21107113) Price: $17,100.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Input shaft (3584030) Price: $6,670.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Input shaft (3584028) Price: $3,360.00 SUGGESTED QTY:1 VIEW DETAILS
4.	Ball (3582113) Price: $8.80 SUGGESTED QTY:1 VIEW DETAILS
5.	Piston ring (3817769) Price: $342.00 SUGGESTED QTY:2 VIEW DETAILS
6.	Piston (3817768) Price: $474.00 SUGGESTED QTY:2 VIEW DETAILS
7.	Ring (3582111) Price: $157.00 SUGGESTED QTY:2 VIEW DETAILS
8.	Spring disc (3817767) Price: $43.00 SUGGESTED QTY:6 VIEW DETAILS
9.	Snap ring (3582116) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
10.	Steel disc (3817765) Price: $131.00 SUGGESTED QTY:10 VIEW DETAILS
11.	Disc (21388176) Price: $236.00 SUGGESTED QTY:8 VIEW DETAILS
12.	End disc (3817764) Price: $1,022.00 SUGGESTED QTY:2 VIEW DETAILS
13.	Snap ring (3582103) Price: $70.60 SUGGESTED QTY:2 VIEW DETAILS
14.	Key (3582089) Price: $14.50 SUGGESTED QTY:1 VIEW DETAILS
15.	Bearing (3582177) Price: $119.00 SUGGESTED QTY:2 VIEW DETAILS
16.	Gear (3582079) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
17.	Friction washer (3582080) Price: $338.00 SUGGESTED QTY:1 VIEW DETAILS
18.	Bearing (3582084) Price: $437.00 SUGGESTED QTY:1 VIEW DETAILS
19.	Piston ring (3582087) Price: $88.00 SUGGESTED QTY:3 VIEW DETAILS
20.	Gear (3582242) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
21.	Friction washer (3582080) Price: $338.00 SUGGESTED QTY:1 VIEW DETAILS
22.	Roller bearing (183648) Price: $111.00 SUGGESTED QTY:1 VIEW DETAILS
23.	Shim (3582097) Price: $35.30 SUGGESTED QTY:1 TH=0,50mm VIEW DETAILS
23.	Shim (3582091) Price: $36.40 SUGGESTED QTY:1 TH=0.10mm VIEW DETAILS
23.	Shim (3582093) Price: $39.80 SUGGESTED QTY:1 TH=0.15mm VIEW DETAILS
23.	Shim (3582094) Price: $36.40 SUGGESTED QTY:1 TH=0,20mm VIEW DETAILS
24.	Intermedi.shaft kit (3582244) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
25.	Roller bearing (184083) Price: $202.00 SUGGESTED QTY:2 (3582082) VIEW DETAILS
26.	Roller bearing (18473) Price: $240.00 SUGGESTED QTY:1 VIEW DETAILS
27.	Intermedi.shaft kit (3582247) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
28.	Roller bearing (183648) Price: $111.00 SUGGESTED QTY:1 VIEW DETAILS
29.	Roller bearing (18458) Price: $319.00 SUGGESTED QTY:1 VIEW DETAILS
30.	Shim (3582232) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
30.	Shim (3582233) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
30.	Shim (3582234) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
30.	Shim (3582231) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
31.	Output shaft (3582249) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
32.	Roller bearing (184620) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 VIEW DETAILS
33.	Roller bearing (184678) Price: $298.00 SUGGESTED QTY:1 VIEW DETAILS
34.	Locating pin (3582235) Price: $26.50 SUGGESTED QTY:1 VIEW DETAILS
35.	Sealing ring (3582228) Price: $407.00 SUGGESTED QTY:1 VIEW DETAILS
36.	Flange (23370753) Price: $932.00 SUGGESTED QTY:1 VIEW DETAILS
37.	Hex. socket screw (40005874) Price: $3.50 SUGGESTED QTY:8 VIEW DETAILS
38.	Suction pipe (3809161) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
39.	Hex. socket screw (942001) Price: $1.70 SUGGESTED QTY:1 VIEW DETAILS

45 Items

Grouped product items
Product Name	Qty
Reversing gear $17,100.00
Input shaft $6,670.00
Input shaft $3,360.00
Ball $8.80
Piston ring $342.00
Piston $474.00
Ring $157.00
Spring disc $43.00
Snap ring $99,999.00
Steel disc $131.00
Disc $236.00
End disc $1,022.00
Snap ring $70.60
Key $14.50
Bearing $119.00
Gear $99,999.00
Bearing $437.00
Piston ring $88.00
Gear $99,999.00
Friction washer $338.00
Shim $36.40
Shim $36.40
Shim $35.30
Shim $39.80
Intermedi.shaft kit $99,999.00
Roller bearing $202.00
Roller bearing $240.00
Intermedi.shaft kit $99,999.00
Roller bearing $111.00
Roller bearing $319.00
Shim $99,999.00
Shim $99,999.00
Shim $99,999.00
Shim $99,999.00
Output shaft $99,999.00
Roller bearing $99,999.00
Roller bearing $298.00
Locating pin $26.50
Sealing ring $407.00
Flange $932.00
Hex. socket screw $3.50
Suction pipe $99,999.00
Hex. socket screw $1.70
