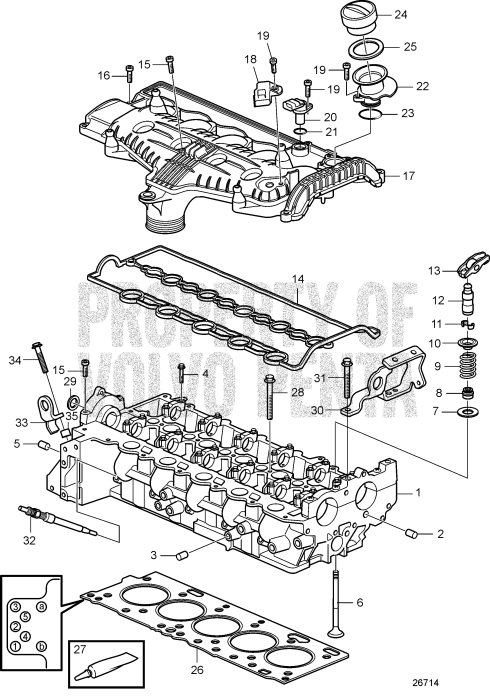

Cylinder Head SNA201254-
|
1. |
Cylinder head, exch (3801563)
Price: $6,390.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Cap plug (24426721)
Price: $4.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Cap plug (946779)
Price: $4.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
4. |
Flange screw (982761)
Price: $3.20SUGGESTED QTY:24
M6x35mm
VIEW DETAILS
|
|
|
5. |
Plug (981713)
Price: $7.70SUGGESTED QTY:3
VIEW DETAILS
|
|
|
6. |
Inlet valve (8631650)
Price: $35.80SUGGESTED QTY:10
VIEW DETAILS
|
|
|
6. |
Exhaust valve (8631651)
Price: $138.00SUGGESTED QTY:10
VIEW DETAILS
|
|
|
7. |
Valve spring washer, lower (8631655)
Price: $1.10SUGGESTED QTY:20
VIEW DETAILS
|
|
|
8. |
Valve stem seal (8631652)
Price: $8.90SUGGESTED QTY:20
VIEW DETAILS
|
|
|
9. |
Valve spring (31258132)
Price: $8.90SUGGESTED QTY:20
VIEW DETAILS
|
|
|
10. |
Valve spring washer, upper (8631654)
Price: $6.80SUGGESTED QTY:20
VIEW DETAILS
|
|
|
11. |
Valve collet (9454613)
Price: $6.80SUGGESTED QTY:40
VIEW DETAILS
|
|
|
12. |
Pivot (31251885)
Price: $31.90SUGGESTED QTY:20
VIEW DETAILS
|
|
|
13. |
Tappet (8670045)
Price: $27.60SUGGESTED QTY:20
VIEW DETAILS
|
|
|
14. |
Gasket (31430317)
Price: $120.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
15. |
6 point socket screw (987740)
Price: $4.40SUGGESTED QTY:5
VIEW DETAILS
|
|
|
16. |
Flange screw (987494)
Price: $4.40SUGGESTED QTY:12
VIEW DETAILS
|
|
|
17. |
Valve cover (31430316)
Price: $472.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
Pressure sensor (31216308)
Price: $217.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
19. |
6 point socket screw (986072)
Price: $2.20SUGGESTED QTY:2
M6x25mm
VIEW DETAILS
|
|
|
20. |
Sensor (8658726)
Price: $173.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
21. |
O-ring (30756062)
Price: $14.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
22. |
Oil filler pipe (31330189)
Price: $44.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
23. |
O-ring (30757159)
Price: $3.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
24. |
Oil filler cap (3819129)
Price: $48.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
25. |
O-ring (30677740)
Price: $23.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
26. |
Cylinder head gasket (31392321)
Price: $110.00SUGGESTED QTY:1
Hole 5 and b, C...
VIEW DETAILS
|
|
|
26. |
Cylinder head gasket (31392322)
Price: $121.00SUGGESTED QTY:1
Hole 4, 5 and b...
VIEW DETAILS
|
|
|
26. |
Cylinder head gasket (31392323)
Price: $121.00SUGGESTED QTY:1
Hole 3, 4, 5 an...
VIEW DETAILS
|
|
|
26. |
Cylinder head gasket (31392324)
Price: $121.00SUGGESTED QTY:1
Hole 2, 3, 4, 5...
VIEW DETAILS
|
|
|
26. |
Cylinder head gasket (31392325)
Price: $119.00SUGGESTED QTY:1
Hole 1, 5 and b...
VIEW DETAILS
|
|
|
27. |
Sealing compound (22618326)
Price: $98.30SUGGESTED QTY:1
Needed when ord...
VIEW DETAILS
|
|
|
28. |
Flange screw (30777636)
Price: $10.00SUGGESTED QTY:12
M12x197mm
VIEW DETAILS
|
|
|
29. |
Sealing ring (8631561)
Price: $27.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
30. |
Lifting eye
THIS PRODUCT HAS BEEN DISCONTINUED
|
|
|
31. |
Flange screw (965181)
Price: $4.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
32. |
Glow plug (8631607)
Price: $84.80SUGGESTED QTY:5
12V, SOLAS
VIEW DETAILS
|
|
|
33. |
Lifting eye (21146441)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
34. |
Flange screw (984850)
SUGGESTED QTY:1
VIEW DETAILS
|
|
|
35. |
Spacer sleeve (1678297)
Price: $5.10SUGGESTED QTY:1
VIEW DETAILS
|
40 Items
