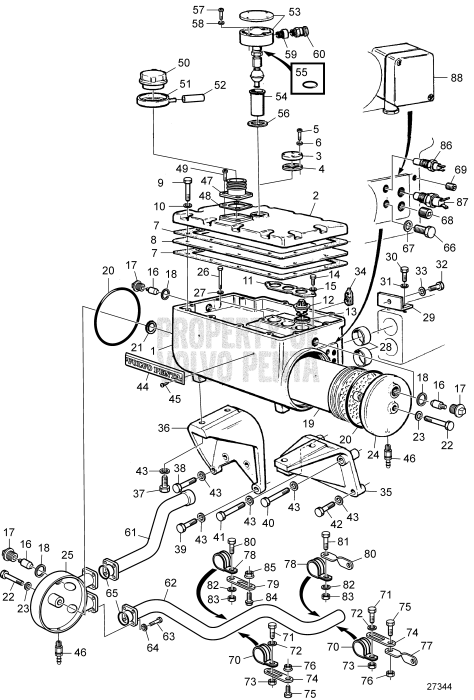

Heat Exchanger, Classifiable. Later produktion


1.	Housing (837183) Price: $7,320.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Cardboard tube (3828611) Price: $2,030.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Cardboard tube (843760) Price: $172.00 SUGGESTED QTY:1 VIEW DETAILS
4.	Gasket (863715) Price: $45.20 SUGGESTED QTY:1 VIEW DETAILS
5.	6 point socket screw (969405) Price: $1.30 SUGGESTED QTY:2 VIEW DETAILS
6.	Spring washer (941905) Price: $0.40 SUGGESTED QTY:1 VIEW DETAILS
7.	Gasket (3827401) Price: $136.00 SUGGESTED QTY:1 VIEW DETAILS
8.	Plate (3825402) Price: $484.00 SUGGESTED QTY:1 SN1101051559/XX... VIEW DETAILS
9.	Hexagon screw (955525) Price: $1.20 SUGGESTED QTY:2 VIEW DETAILS
10.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:24 VIEW DETAILS
11.	Plate (824134) Price: $310.00 SUGGESTED QTY:1 VIEW DETAILS
12.	Thermostat kit (3831424) Price: $66.30 SUGGESTED QTY:3 81°C VIEW DETAILS
13.	Sealing ring (416033) Price: $8.00 SUGGESTED QTY:3 VIEW DETAILS
14.	Hexagon screw (942342) Price: $14.20 SUGGESTED QTY:4 VIEW DETAILS
15.	Washer (941670) Price: $0.40 SUGGESTED QTY:4 VIEW DETAILS
16.	Zinc anode (823661) Price: $25.80 SUGGESTED QTY:4 VIEW DETAILS
17.	Plug (823662) Price: $64.00 SUGGESTED QTY:4 VIEW DETAILS
18.	Gasket (836169) Price: $5.20 SUGGESTED QTY:4 VIEW DETAILS
19.	Heat exchanger eleme (3825963) Price: $11,400.00 SUGGESTED QTY:1 SN1101051559/XX... VIEW DETAILS
20.	O-ring (400797) Price: $30.80 SUGGESTED QTY:4 VIEW DETAILS
21.	O-ring (925057) Price: $3.90 SUGGESTED QTY:2 VIEW DETAILS
22.	Screw (823279) Price: $161.00 SUGGESTED QTY:2 VIEW DETAILS
24.	End cover (820715) Price: $1,500.00 SUGGESTED QTY:1 VIEW DETAILS
25.	End cover (864309) Price: $1,897.00 SUGGESTED QTY:1 VIEW DETAILS
26.	Hex. socket screw (942232) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:6 Obsolete part VIEW DETAILS
27.	Washer (942551) Price: $1.80 SUGGESTED QTY:6 VIEW DETAILS
28.	Sealing ring (846923) Price: $27.60 SUGGESTED QTY:2 VIEW DETAILS
29.	Anchorage (846739) Price: $106.00 SUGGESTED QTY:1 VIEW DETAILS
31.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
32.	Hexagon screw (955560) Price: $2.30 SUGGESTED QTY:1 VIEW DETAILS
35.	Bracket (820730) This product has been discontinued Price: $677.00 SUGGESTED QTY:1 VIEW DETAILS
36.	Bracket (823036) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
40.	Hexagon screw (955543) Price: $4.60 SUGGESTED QTY:1 L=95mm VIEW DETAILS
41.	Hexagon screw (940156) Price: $4.40 SUGGESTED QTY:4 VIEW DETAILS
42.	Hexagon screw (955539) Price: $3.40 SUGGESTED QTY:2 VIEW DETAILS
43.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
44.	Sign (820232) Price: $230.00 SUGGESTED QTY:1 VIEW DETAILS
45.	Cross recessed screw (969409) Price: $1.60 SUGGESTED QTY:2 M5x25 VIEW DETAILS
46.	Shut-off cock (966871) Price: $85.90 SUGGESTED QTY:3 VIEW DETAILS
47.	Filler neck (3825064) Price: $301.00 SUGGESTED QTY:1 VIEW DETAILS
48.	Gasket (842137) Price: $9.60 SUGGESTED QTY:1 VIEW DETAILS
49.	Cross recessed sunk (950158) Price: $4.70 SUGGESTED QTY:4 VIEW DETAILS
50.	Pressure cap (1674083) Price: $43.50 SUGGESTED QTY:1 SN1101051559/XX... VIEW DETAILS
51.	Rubber collar (3828863) Price: $38.20 SUGGESTED QTY:1 SN1101051559/XX... VIEW DETAILS
52.	Hose (192618) Price: $8.90 SUGGESTED QTY:1 L=1000mm VIEW DETAILS
53.	Level guard (872315) Price: $1,224.00 SUGGESTED QTY:1 VIEW DETAILS
54.	Tube (863711) Price: $538.00 SUGGESTED QTY:1 SN1101021148/XX... VIEW DETAILS
55.	Gasket (863715) Price: $45.20 SUGGESTED QTY:1 VIEW DETAILS
56.	Gasket (863715) Price: $45.20 SUGGESTED QTY:1 VIEW DETAILS
57.	Hex. socket screw (941460) Price: $1.40 SUGGESTED QTY:4 VIEW DETAILS
58.	Spring washer (941905) Price: $0.40 SUGGESTED QTY:1 VIEW DETAILS
59.	Reduction sleeve (843906) Price: $12.50 SUGGESTED QTY:1 Early type VIEW DETAILS
60.	Grommet (3888619) Price: $13.10 SUGGESTED QTY:1 VIEW DETAILS
61.	Coolant pipe, intercooler (3825372) Price: $1,960.00 SUGGESTED QTY:1 SN1101051737/XX... VIEW DETAILS
62.	Coolant pipe, reverse gear (3825383) Price: $1,920.00 SUGGESTED QTY:1 SN1101051737/XX... VIEW DETAILS
64.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:24 VIEW DETAILS
65.	Gasket (843584) Price: $46.30 SUGGESTED QTY:2 VIEW DETAILS
68.	Plug, 1/2-NPTF (968146) Price: $5.30 SUGGESTED QTY:1 VIEW DETAILS
70.	Clamp (32447) Price: $35.00 SUGGESTED QTY:2 SN-1101049922/2... VIEW DETAILS
72.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
73.	Hexagon nut (955827) Price: $0.60 SUGGESTED QTY:1 VIEW DETAILS
74.	Bracket (965535) Price: $3.80 SUGGESTED QTY:2 VIEW DETAILS
75.	Flange screw (946544) Price: $0.70 SUGGESTED QTY:1 VIEW DETAILS
76.	Flange nut (945407) Price: $0.60 SUGGESTED QTY:2 VIEW DETAILS
77.	Bracket (354842) Price: $14.90 SUGGESTED QTY:1 SN-11010449922/... VIEW DETAILS
78.	Clamp (32447) Price: $35.00 SUGGESTED QTY:2 SN-1101049922/2... VIEW DETAILS
79.	Bracket (965535) Price: $3.80 SUGGESTED QTY:2 VIEW DETAILS
80.	Bracket (847350) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 SN11010449923/2... VIEW DETAILS
82.	Spring washer (942336) Price: $0.30 SUGGESTED QTY:3 VIEW DETAILS
83.	Hexagon nut (955827) Price: $0.60 SUGGESTED QTY:1 VIEW DETAILS
84.	Flange screw (946544) Price: $0.70 SUGGESTED QTY:1 VIEW DETAILS
85.	Flange nut (945407) Price: $0.60 SUGGESTED QTY:2 VIEW DETAILS
87.	Thermo monitor (831625) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 12V VIEW DETAILS

73 Items

Grouped product items
Product Name	Qty
Housing $7,320.00
Cardboard tube $2,030.00
Cardboard tube $172.00
6 point socket screw $1.30
Gasket $136.00
Plate $484.00
Hexagon screw $1.20
Plate $310.00
Thermostat kit $66.30
Sealing ring $8.00
Hexagon screw $14.20
Washer $0.40
Zinc anode $25.80
Plug $64.00
Gasket $5.20
Heat exchanger eleme $11,400.00
O-ring $30.80
O-ring $3.90
Screw $161.00
End cover $1,500.00
End cover $1,897.00
Hex. socket screw $99,999.00
Washer $1.80
Sealing ring $27.60
Anchorage $106.00
Hexagon screw $1.60
Hexagon screw $2.30
Spring washer $1.10
Seal $26.10
Bracket $677.00
Bracket $99,999.00
Hexagon screw $1.50
Hexagon screw $3.90
Hexagon screw $2.00
Hexagon screw $4.60
Hexagon screw $4.40
Hexagon screw $3.40
Sign $230.00
Cross recessed screw $1.60
Shut-off cock $85.90
Filler neck $301.00
Gasket $9.60
Cross recessed sunk $4.70
Pressure cap $43.50
Rubber collar $38.20
Hose $8.90
Level guard $1,224.00
Tube $538.00
Gasket $45.20
Hex. socket screw $1.40
Spring washer $0.40
Reduction sleeve $12.50
Grommet $13.10
Coolant pipe, intercooler $1,960.00
Coolant pipe, reverse gear $1,920.00
Hexagon screw $2.70
Spring washer $0.70
Gasket $46.30
Plug $5.90
Gasket $2.20
Plug, 1/2-NPTF $5.30
Plug, 1/4-NPTF $3.00
Bracket $14.90
Clamp $35.00
Bracket $3.80
Bracket $99,999.00
Hexagon screw $3.30
Spring washer $0.30
Hexagon nut $0.60
Flange screw $0.70
Flange nut $0.60
Thermo monitor $99,999.00
