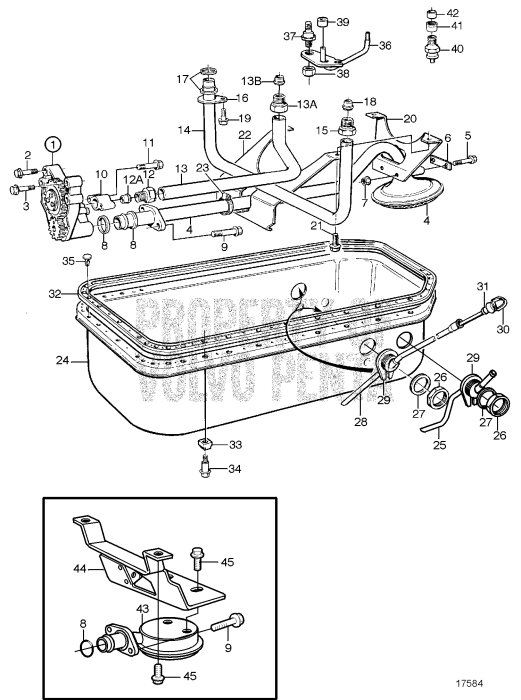

Lubricating System


1.	Oil Pump, Components (1537) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 TAMD74A, TAMD74... VIEW DETAILS
5.	Flange screw (994388) Price: $4.50 SUGGESTED QTY:2 VIEW DETAILS
7.	Flange nut (990940) Price: $0.90 SUGGESTED QTY:1 VIEW DETAILS
9.	Flange screw (965184) Price: $2.00 SUGGESTED QTY:2 VIEW DETAILS
10.	Spacer (465846) Price: $110.00 SUGGESTED QTY:1 VIEW DETAILS
11.	Flange screw (968999) This product has been discontinued Price: $0.00 SUGGESTED QTY:2 VIEW DETAILS
19.	Flange screw (946440) Price: $1.00 SUGGESTED QTY:1 L=16mm VIEW DETAILS
21.	Flange screw (946173) Price: $1.10 SUGGESTED QTY:2 VIEW DETAILS
29.	Retainer (20381153) Price: $46.30 SUGGESTED QTY:3 VIEW DETAILS
30.	Dipstick (3827182) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Oil dipstick id... VIEW DETAILS
45.	Flange screw (946440) Price: $1.00 SUGGESTED QTY:1 L=16mm VIEW DETAILS

11 Items

Grouped product items
Product Name	Qty
Oil Pump, Components Starting at $1.60
Oil pump $1,517.00
Flange nut $6.40
Flange screw $2.20
Suction pipe $570.00
Flange screw $4.50
Square washer $5.30
Flange nut $0.90
Sealing ring $7.50
Flange screw $2.00
Spacer $110.00
Flange screw $0.00
Oil feed pipe $27.20
Oil pressure pipe $127.00
Oil pressure pipe, piston cooling $129.00
Pressure pipe connec $20.60
Clamp $7.40
Gasket $15.50
Bracket $127.00
Flange screw $1.10
Baffle plate $203.00
Hose clamp $3.60
Sump $2,767.00
Pipe $280.00
Hexagon nut $36.00
Rubber washer $7.90
Pipe $194.00
Retainer $46.30
Dipstick $99,999.00
Dipstick $47.60
O-ring $5.30
Gasket $193.00
Rubber cushion $4.90
Shoulder screw $7.50
Plastic rivet $0.70
Piston cooling jet $65.10
Stud $9.60
Lock nut $0.80
Sealing ring $3.00
Reduction valve $284.00
Tube $142.00
Ferrule $8.00
Oil strainer $670.00
Baffle plate $484.00
Flange screw $1.00
