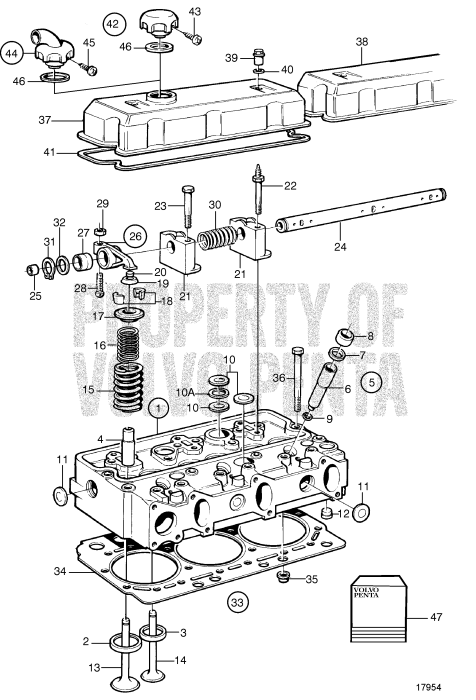

Cylinder Head: TAMD71B (AUX)


3.	Valve seat, exhaust (466307) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:6 O.S=0,20mm VIEW DETAILS
28.	Ball stud (422993) Price: $14.30 SUGGESTED QTY:12 VIEW DETAILS

2 Items

Grouped product items
Product Name	Qty
Cylinder head $8,780.00
Valve seat, intake $87.40
Valve seat, intake $93.70
Valve seat, exhaust $95.90
Valve seat, exhaust $99,999.00
Valve guide $28.50
Copper sleeve kit, fuel injector $75.00
Sealing ring $7.50
Ring $21.70
O-ring $7.50
Gasket $1.30
Expansion plug $9.20
Expansion plug $18.20
Jet $30.50
Inlet valve, Nimonic $203.00
Exhaust valve $181.00
Valve spring $10.30
Valve spring $8.00
Valve spring washer $27.60
Valve cotter $4.40
Protecting ring $6.00
Valve cap $16.10
Bearing bracket $77.30
Stud $20.10
Flange nut $6.40
Rocker arm shaft $345.00
Cap plug $7.40
Rocker arm $174.00
Bushing $43.50
Ball stud $14.30
Hexagon nut $2.50
Spring $28.30
Snap ring $1.10
Washer $2.10
Cylinder head gasket $148.00
Sealing ring $10.30
Sealing ring $23.40
Sealing ring $6.20
Flange screw $19.40
Valve cover, with oil filler cap $195.00
Valve cover $219.00
Cap nut $20.10
Sealing ring $4.20
Gasket $36.30
Oil filler cap $26.30
Oil filler cap $399.00
Cross recessed screw $0.70
Gasket $12.50
Gasket kit $250.00
