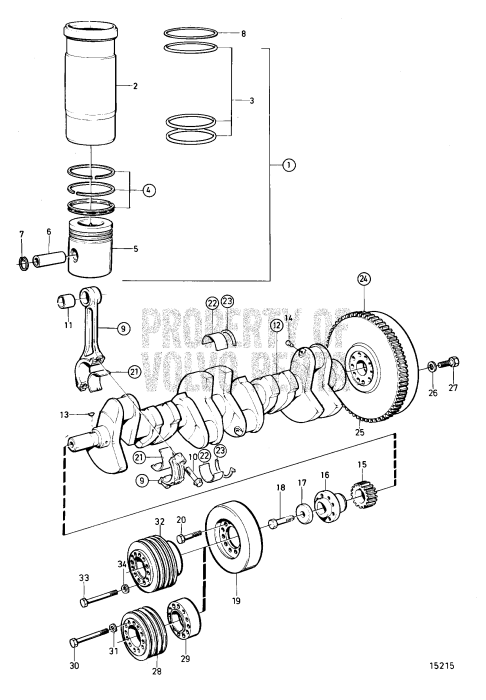

Crank Mechanism


1.	Cylinder liner kit (877347) Price: $1,823.00 SUGGESTED QTY:6 VIEW DETAILS
3.	Sealing ring kit (271157) Price: $59.70 SUGGESTED QTY:1 VIEW DETAILS
4.	Piston ring kit (276851) Price: $160.00 SUGGESTED QTY:1 VIEW DETAILS
5.	Piston (3855743) Obsolete no longer made Price: $99,999.00 SUGGESTED QTY:1 O.S=0.50mm VIEW DETAILS
6.	Piston pin (8194586) Price: $82.90 SUGGESTED QTY:1 VIEW DETAILS
7.	Snap ring (914529) Price: $1.50 SUGGESTED QTY:2 VIEW DETAILS
8.	Adjusting washer (422619) Price: $16.50 SUGGESTED QTY:1 Shims to adjust... VIEW DETAILS
8.	Adjusting washer (422620) Price: $16.60 SUGGESTED QTY:1 Shims to adjust... VIEW DETAILS
8.	Adjusting washer (422621) Price: $16.80 SUGGESTED QTY:1 Shims to adjust... VIEW DETAILS
9.	Connecting rod (3830826) Price: $3,340.00 SUGGESTED QTY:6 Classified VIEW DETAILS
10.	Flange screw (1545479) Price: $23.30 SUGGESTED QTY:2 VIEW DETAILS
11.	Bushing (8194039) Price: $105.00 SUGGESTED QTY:1 VIEW DETAILS
12.	Crankshaft (3808687) Price: $15,490.00 SUGGESTED QTY:1 Classified VIEW DETAILS
13.	Woodruff key (422253) Price: $22.70 SUGGESTED QTY:1 VIEW DETAILS
14.	Plug (978130) Price: $6.30 SUGGESTED QTY:6 VIEW DETAILS
15.	Gear (423080) Price: $448.00 SUGGESTED QTY:1 VIEW DETAILS
16.	Hub (470595) Price: $1,293.00 SUGGESTED QTY:1 VIEW DETAILS
17.	Washer (422124) Price: $59.40 SUGGESTED QTY:1 VIEW DETAILS
18.	Hexagon screw (941494) Price: $19.30 SUGGESTED QTY:1 VIEW DETAILS
19.	Vibration damper (849622) Price: $4,123.00 SUGGESTED QTY:1 Use double vibr... VIEW DETAILS
20.	Hex. socket screw (956601) Price: $9.50 SUGGESTED QTY:12 VIEW DETAILS
21.	Big-end bearing kit (270125) Price: $58.00 SUGGESTED QTY:6 U.S=0,25mm VIEW DETAILS
21.	Big-end bearing kit (270126) Price: $58.00 SUGGESTED QTY:6 U.S=0.50mm VIEW DETAILS
21.	Big-end bearing kit (270127) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:6 Obsolete part, ... VIEW DETAILS
21.	Big-end bearing kit (270128) Price: $58.00 SUGGESTED QTY:6 U.S=1,00mm VIEW DETAILS
21.	Big-end bearing kit (270129) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:6 Obsolete part, ... VIEW DETAILS
21.	Big-end bearing kit (270124) Price: $49.90 SUGGESTED QTY:6 Std D VIEW DETAILS
22.	Main bearing kit (270441) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:7 Obsolete part, ... VIEW DETAILS
22.	Main bearing kit (270442) Price: $70.30 SUGGESTED QTY:7 U.S=1,00mm VIEW DETAILS
22.	Main bearing kit (270443) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:7 Obsolete part, ... VIEW DETAILS
22.	Main bearing kit (270438) Price: $59.90 SUGGESTED QTY:7 Std D VIEW DETAILS
22.	Main bearing kit (270439) Price: $70.30 SUGGESTED QTY:7 U.S=0,25mm VIEW DETAILS
22.	Main bearing kit (270440) Price: $59.90 SUGGESTED QTY:7 U.S=0.50mm VIEW DETAILS
23.	Thrust washer kit (276758) Price: $81.20 SUGGESTED QTY:1 Std D VIEW DETAILS
23.	Thrust washer kit (276759) Price: $80.90 SUGGESTED QTY:1 O.S=0,10mm VIEW DETAILS
23.	Thrust washer kit (276760) Price: $220.00 SUGGESTED QTY:1 O.S=0,20mm VIEW DETAILS
23.	Thrust washer kit (276761) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
24.	Flywheel (864997) Price: $3,583.00 SUGGESTED QTY:1 VIEW DETAILS
25.	Ring gear (420794) Price: $733.00 SUGGESTED QTY:1 VIEW DETAILS
26.	Washer (467773) Price: $1.30 SUGGESTED QTY:14 VIEW DETAILS
27.	Hexagon screw (478717) Price: $7.40 SUGGESTED QTY:14 VIEW DETAILS
28.	Pulley (823082) Price: $1,389.00 SUGGESTED QTY:1 3-grooves, 158m... VIEW DETAILS
29.	Spacer ring (823083) Price: $605.00 SUGGESTED QTY:1 VIEW DETAILS
30.	Hexagon screw (959804) Price: $10.50 SUGGESTED QTY:12 VIEW DETAILS
31.	Spring washer (941909) Price: $0.50 SUGGESTED QTY:12 VIEW DETAILS
32.	Pulley (837476) Price: $1,389.00 SUGGESTED QTY:1 4-grooves, 182m... VIEW DETAILS
33.	Hex. socket screw (959188) Price: $68.50 SUGGESTED QTY:12 VIEW DETAILS
34.	Spring washer (941909) Price: $0.50 SUGGESTED QTY:12 VIEW DETAILS

48 Items

Grouped product items
Product Name	Qty
Cylinder liner kit $1,823.00
Sealing ring kit $59.70
Piston ring kit $160.00
Piston $99,999.00
Piston pin $82.90
Snap ring $1.50
Adjusting washer $16.80
Adjusting washer $16.50
Adjusting washer $16.60
Connecting rod $3,340.00
Flange screw $23.30
Bushing $105.00
Crankshaft $15,490.00
Woodruff key $22.70
Plug $6.30
Gear $448.00
Hub $1,293.00
Washer $59.40
Hexagon screw $19.30
Vibration damper $4,123.00
Hex. socket screw $9.50
Big-end bearing kit $58.00
Big-end bearing kit $58.00
Big-end bearing kit $99,999.00
Big-end bearing kit $49.90
Big-end bearing kit $99,999.00
Big-end bearing kit $58.00
Main bearing kit $70.30
Main bearing kit $70.30
Main bearing kit $59.90
Main bearing kit $99,999.00
Main bearing kit $59.90
Main bearing kit $99,999.00
Thrust washer kit $80.90
Thrust washer kit $220.00
Thrust washer kit $81.20
Thrust washer kit $99,999.00
Flywheel $3,583.00
Ring gear $733.00
Washer $1.30
Hexagon screw $7.40
Pulley $1,389.00
Spacer ring $605.00
Hexagon screw $10.50
Pulley $1,389.00
Hex. socket screw $68.50
Spring washer $0.50
