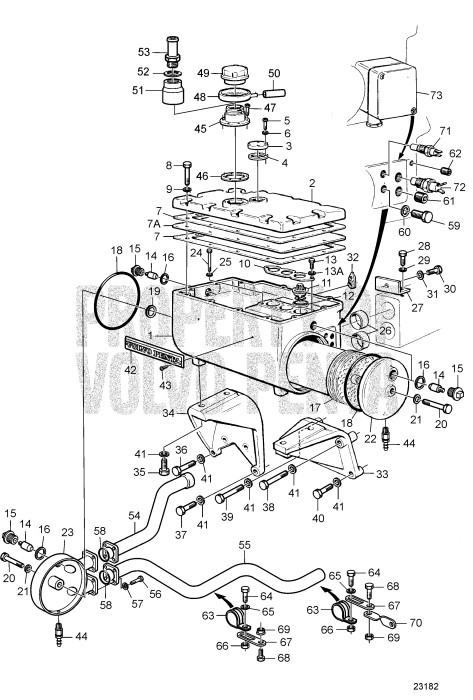

Heat Exchanger. Classifiable: TAMD103A-A AUX
|
1. |
Housing (837183)
Price: $7,320.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Cardboard tube (3828611)
Price: $2,030.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Cardboard tube (843760)
Price: $172.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
Gasket (863715)
Price: $45.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
5. |
6 point socket screw (969405)
Price: $1.30SUGGESTED QTY:4
VIEW DETAILS
|
|
|
6. |
Spring washer (941905)
Price: $0.40SUGGESTED QTY:4
VIEW DETAILS
|
|
|
7. |
Gasket (3827401)
Price: $136.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
7A. |
Plate (3825402)
Price: $484.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
8. |
Hexagon screw (955525)
Price: $1.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
9. |
Spring washer (941907)
Price: $0.70SUGGESTED QTY:24
VIEW DETAILS
|
|
|
10. |
Plate (824134)
Price: $310.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
11. |
Thermostat kit (3831424)
Price: $66.30SUGGESTED QTY:3
81°C
VIEW DETAILS
|
|
|
12. |
Sealing ring (416033)
Price: $8.00SUGGESTED QTY:3
VIEW DETAILS
|
|
|
13. |
Hexagon screw (942342)
Price: $14.20SUGGESTED QTY:4
VIEW DETAILS
|
|
|
13A. |
Washer (941670)
Price: $0.40SUGGESTED QTY:4
VIEW DETAILS
|
|
|
14. |
Zinc anode (823661)
Price: $25.80SUGGESTED QTY:4
VIEW DETAILS
|
|
|
15. |
Plug (823662)
Price: $64.00SUGGESTED QTY:4
VIEW DETAILS
|
|
|
16. |
Gasket (836169)
Price: $5.20SUGGESTED QTY:4
VIEW DETAILS
|
|
|
17. |
Heat exchanger eleme (3825963)
Price: $11,400.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
O-ring (400797)
Price: $30.80SUGGESTED QTY:4
VIEW DETAILS
|
|
|
19. |
O-ring (925057)
Price: $3.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
20. |
Screw (823279)
Price: $161.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
21. |
Gasket (11996)
Price: $2.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
22. |
End cover (820715)
Price: $1,500.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
23. |
End cover (864309)
Price: $1,897.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
24. |
Hex. socket screw (942232)
Price: $99,999.00SUGGESTED QTY:6
Obsolete part
VIEW DETAILS
|
|
|
25. |
Washer (942551)
Price: $1.80SUGGESTED QTY:6
VIEW DETAILS
|
|
|
26. |
Sealing ring (846923)
Price: $27.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
27. |
Anchorage (846739)
Price: $106.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
28. |
Hexagon screw (940114)
Price: $1.60SUGGESTED QTY:3
VIEW DETAILS
|
|
|
29. |
Spring washer (942336)
Price: $0.30SUGGESTED QTY:3
VIEW DETAILS
|
|
|
30. |
Hexagon screw (955560)
Price: $2.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
31. |
Spring washer (940280)
Price: $1.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
32. |
Seal (479260)
Price: $26.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
33. |
Bracket (820730)
Price: $677.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
34. |
Bracket (823036)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
35. |
Hexagon screw (940162)
Price: $1.50SUGGESTED QTY:10
L=38mm
VIEW DETAILS
|
|
|
36. |
Hexagon screw (955541)
Price: $3.90SUGGESTED QTY:2
L=76mm
VIEW DETAILS
|
|
|
37. |
Hexagon screw (955535)
Price: $2.00SUGGESTED QTY:4
VIEW DETAILS
|
|
|
38. |
Hexagon screw (955543)
Price: $4.60SUGGESTED QTY:1
L=95mm
VIEW DETAILS
|
|
|
39. |
Hexagon screw (940156)
Price: $4.40SUGGESTED QTY:4
VIEW DETAILS
|
|
|
40. |
Hexagon screw (955539)
Price: $3.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
41. |
Spring washer (942336)
Price: $0.30SUGGESTED QTY:3
VIEW DETAILS
|
|
|
42. |
Sign (820232)
Price: $230.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
43. |
Cross recessed screw (950105)
Price: $99,999.00SUGGESTED QTY:3
VIEW DETAILS
|
|
|
44. |
Shut-off cock (966871)
Price: $85.90SUGGESTED QTY:3
VIEW DETAILS
|
|
|
45. |
Filler neck (3825064)
Price: $301.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
46. |
Gasket (842137)
Price: $9.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
47. |
Cross recessed sunk (950158)
Price: $4.70SUGGESTED QTY:4
VIEW DETAILS
|
|
|
48. |
Rubber collar (3828863)
Price: $38.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
49. |
Pressure cap (1674083)
Price: $43.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
50. |
Hose (192618)
Price: $8.90SUGGESTED QTY:1
L=1715mm
VIEW DETAILS
|
|
|
51. |
Adapter (22676775)
Price: $456.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
52. |
Gasket (836169)
Price: $5.20SUGGESTED QTY:4
VIEW DETAILS
|
|
|
53. |
Hose nipple (943268)
Price: $29.30SUGGESTED QTY:1
Alt
VIEW DETAILS
|
|
|
54. |
Coolant pipe, charge air cooler (3825372)
Price: $1,960.00SUGGESTED QTY:1
Alt
VIEW DETAILS
|
|
|
55. |
Coolant pipe, oil cooler-rev.gear (3825383)
Price: $1,920.00SUGGESTED QTY:1
Alt
VIEW DETAILS
|
|
|
56. |
Hex. socket screw (956569)
Price: $2.00SUGGESTED QTY:36
VIEW DETAILS
|
|
|
57. |
Spring washer (941907)
Price: $0.70SUGGESTED QTY:24
VIEW DETAILS
|
|
|
58. |
Gasket (843584)
Price: $46.30SUGGESTED QTY:2
VIEW DETAILS
|
|
|
59. |
Plug (180761)
Price: $5.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
60. |
Gasket (11996)
Price: $2.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
61. |
Plug, 1/2-NPTF (968146)
Price: $5.30SUGGESTED QTY:1
(952077)
VIEW DETAILS
|
|
|
62. |
Plug, 1/4-NPTF (952075)
Price: $3.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
63. |
Clamp (32447)
Price: $35.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
64. |
Hexagon screw (940115)
Price: $3.30SUGGESTED QTY:2
VIEW DETAILS
|
|
|
65. |
Spring washer (942336)
Price: $0.30SUGGESTED QTY:3
VIEW DETAILS
|
|
|
66. |
Hexagon nut (955827)
Price: $0.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
67. |
Bracket (965535)
Price: $3.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
68. |
Flange screw (946544)
Price: $0.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
69. |
Flange nut (945407)
Price: $0.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
70. |
Bracket (847350)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
72 Items
