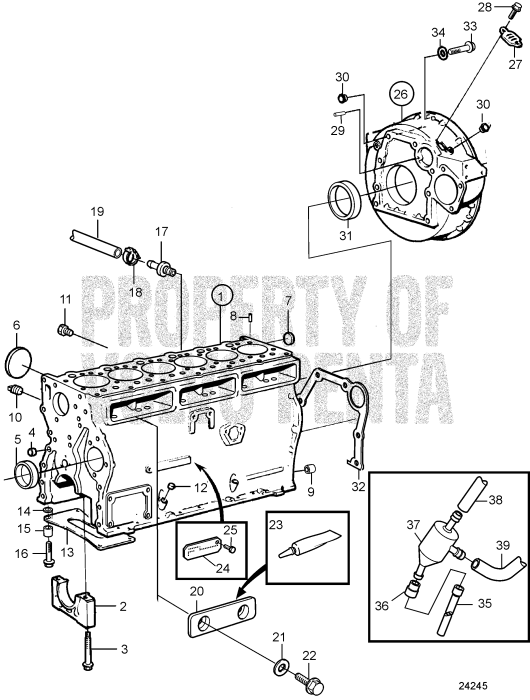

Cylinder Block and Flywheel Housing
|
1. |
Cylinder block (3583103)
Price: $0.00SUGGESTED QTY:1
SN20420116547-
VIEW DETAILS
|
|
|
3. |
Screw (861005)
Price: $53.00SUGGESTED QTY:10
VIEW DETAILS
|
|
|
4. |
Cap plug (955083)
Price: $1.80SUGGESTED QTY:4
VIEW DETAILS
|
|
|
5. |
Camshaft bushing (1542067)
Price: $34.20SUGGESTED QTY:5
VIEW DETAILS
|
|
|
6. |
Expansion plug (463905)
Price: $10.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
7. |
Expansion plug (60112158)
Price: $14.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
8. |
Grooved pin (946402)
Price: $3.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
9. |
Guide sleeve (415311)
Price: $9.20SUGGESTED QTY:3
VIEW DETAILS
|
|
|
10. |
Plug (968146)
Price: $5.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
11. |
Plug (479979)
Price: $7.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
12. |
Cap plug (955082)
Price: $2.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
13. |
Foot plate (1545159)
Price: $119.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
14. |
Spacer (3850090)
Price: $6.00SUGGESTED QTY:4
(1545204)
VIEW DETAILS
|
|
|
15. |
Spacer sleeve (1545160)
Price: $26.10SUGGESTED QTY:4
VIEW DETAILS
|
|
|
16. |
Flange screw (965187)
Price: $2.40SUGGESTED QTY:4
VIEW DETAILS
|
|
|
17. |
Hose nipple (860819)
Price: $29.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
Hose clamp (994556)
Price: $1.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
19. |
Hose (952967)
Price: $22.70SUGGESTED QTY:1
L=900mm
VIEW DETAILS
|
|
|
20. |
Inspection cover (877262)
Price: $0.00SUGGESTED QTY:2
Late type
VIEW DETAILS
|
|
|
21. |
Gasket (18666)
Price: $2.30SUGGESTED QTY:4
Late type
VIEW DETAILS
|
|
|
22. |
Flange screw (965185)
Price: $2.00SUGGESTED QTY:4
Late type
VIEW DETAILS
|
|
|
23. |
Sealant (1161277)
Price: $17.60SUGGESTED QTY:1
Black, 20g, Lat...
VIEW DETAILS
|
|
|
23. |
Sealant (1161231)
Price: $46.30SUGGESTED QTY:1
Late type, 310m...
VIEW DETAILS
|
|
|
26. |
Flywheel housing (3581825)
Price: $773.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
27. |
Cover (407092)
Price: $161.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
28. |
Flange screw (967949)
Price: $0.00SUGGESTED QTY:2
(965175)
VIEW DETAILS
|
|
|
29. |
Pin (404069)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
30. |
Plug (860926)
Price: $9.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
31. |
Sealing ring (3582851)
Price: $333.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
32. |
Gasket (829487)
Price: $10.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
33. |
Flange screw (965185)
Price: $2.00SUGGESTED QTY:4
Late type
VIEW DETAILS
|
|
|
33. |
Flange screw (965220)
Price: $1.20SUGGESTED QTY:2
L=45mm
VIEW DETAILS
|
|
|
34. |
Spring washer (941908)
Price: $0.40SUGGESTED QTY:8
VIEW DETAILS
|
|
|
35. |
Tube (829579)
Price: $61.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
36. |
Rubber hose (843533)
Price: $23.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
37. |
Oil separator (3581104)
Price: $194.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
38. |
Hose (3581202)
SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
39. |
Hose (949995)
Price: $37.10SUGGESTED QTY:1
VIEW DETAILS
|
38 Items
