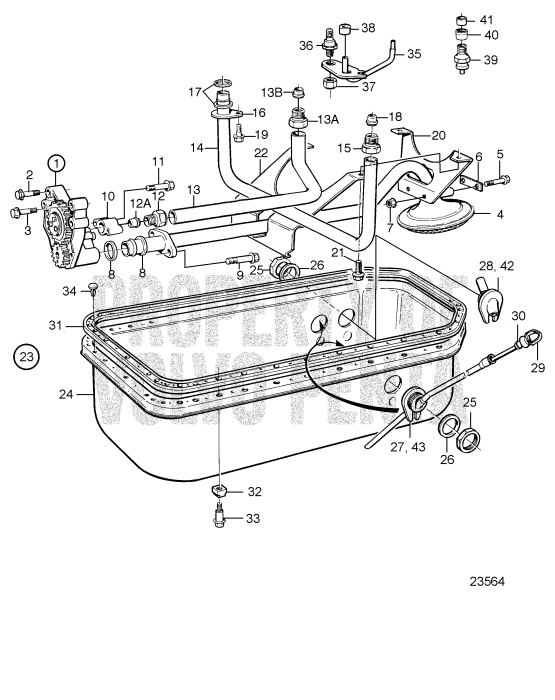

Lubricating System


1.	Oil pump (477547) Price: $1,180.00 SUGGESTED QTY:1 VIEW DETAILS
1.	Oil Pump, Components: 471733 (1036) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 TAMD63L-A, TAMD... VIEW DETAILS
2.	Flange nut (471513) Price: $6.40 SUGGESTED QTY:8 VIEW DETAILS
3.	Flange screw (471734) Price: $2.20 SUGGESTED QTY:2 VIEW DETAILS
4.	Suction pipe (3830716) Price: $579.70 SUGGESTED QTY:1 VIEW DETAILS
5.	Flange screw (965217) Price: $1.10 SUGGESTED QTY:2 VIEW DETAILS
6.	Square washer (421750) Price: $5.30 SUGGESTED QTY:1 VIEW DETAILS
7.	Flange nut (990940) Price: $0.90 SUGGESTED QTY:2 (968862) VIEW DETAILS
8.	Sealing ring (470383) Price: $7.50 SUGGESTED QTY:2 VIEW DETAILS
9.	Flange screw (965183) Price: $1.60 SUGGESTED QTY:1 M8x90mm VIEW DETAILS
10.	Spacer (465846) Price: $110.00 SUGGESTED QTY:1 VIEW DETAILS
11.	Flange screw (968553) Price: $11.30 SUGGESTED QTY:2 (973080) VIEW DETAILS
12.	Oil feed pipe (471588) Price: $27.20 SUGGESTED QTY:1 VIEW DETAILS
12A.	Ferrule (980786) Price: $8.00 SUGGESTED QTY:1 VIEW DETAILS
13B.	Ferrule (980786) Price: $8.00 SUGGESTED QTY:1 VIEW DETAILS
13.	Oil pressure pipe (420994) Price: $285.00 SUGGESTED QTY:1 (864765) VIEW DETAILS
13A.	Pressure pipe connec (471595) Price: $20.60 SUGGESTED QTY:1 (471588) VIEW DETAILS
14.	Oil pressure pipe (420996) Price: $129.00 SUGGESTED QTY:1 (471594) VIEW DETAILS
15.	Pressure pipe connec (471595) Price: $20.60 SUGGESTED QTY:1 (471588) VIEW DETAILS
16.	Clamp (471746) Price: $7.40 SUGGESTED QTY:1 VIEW DETAILS
17.	Gasket (471956) Price: $15.50 SUGGESTED QTY:2 VIEW DETAILS
18.	Ferrule (980786) Price: $8.00 SUGGESTED QTY:1 VIEW DETAILS
19.	Flange screw (946440) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
20.	Bracket (847698) Price: $127.00 SUGGESTED QTY:1 VIEW DETAILS
21.	Flange screw (946173) Price: $1.10 SUGGESTED QTY:2 VIEW DETAILS
22.	Baffle plate (3825820) Price: $203.00 SUGGESTED QTY:1 (866659) VIEW DETAILS
24.	Sump (865755) Price: $842.00 SUGGESTED QTY:1 VIEW DETAILS
25.	Hexagon nut (468948) Price: $36.00 SUGGESTED QTY:3 VIEW DETAILS
26.	Rubber washer (468947) Price: $7.90 SUGGESTED QTY:3 VIEW DETAILS
27.	Pipe (3818664) Price: $194.00 SUGGESTED QTY:2 VIEW DETAILS
28.	Dipstick (866746) This product has been discontinued Price: $85.10 SUGGESTED QTY:2 VIEW DETAILS
29.	O-ring (925054) Price: $5.30 SUGGESTED QTY:2 VIEW DETAILS
30.	Gasket (420941) Price: $212.00 SUGGESTED QTY:1 VIEW DETAILS
31.	Rubber cushion (420991) Price: $4.90 SUGGESTED QTY:34 VIEW DETAILS
32.	Shoulder screw (1556083) Price: $7.50 SUGGESTED QTY:34 VIEW DETAILS
33.	Plastic rivet (943353) Price: $0.70 SUGGESTED QTY:20 VIEW DETAILS
34.	Piston cooling jet (420628) Price: $85.70 SUGGESTED QTY:6 VIEW DETAILS
35.	Stud (471596) Price: $9.60 SUGGESTED QTY:6 VIEW DETAILS
36.	Lock nut (948570) Price: $0.80 SUGGESTED QTY:6 VIEW DETAILS
37.	Sealing ring (466874) Price: $3.00 SUGGESTED QTY:6 VIEW DETAILS
38.	Reduction valve (864533) Price: $284.00 SUGGESTED QTY:1 VIEW DETAILS
39.	Tube (864531) Price: $142.00 SUGGESTED QTY:1 VIEW DETAILS
40.	Pipe (3839159) Price: $195.00 SUGGESTED QTY:1 VIEW DETAILS
41.	Pipe (888477) Price: $236.00 SUGGESTED QTY:1 S.B VIEW DETAILS
42.	Pipe (3818681) Price: $280.00 SUGGESTED QTY:1 S.B VIEW DETAILS

45 Items

Grouped product items
Product Name	Qty
Oil Pump, Components: 471733 Starting at $3.70
Oil pump $1,180.00
Flange nut $6.40
Flange screw $2.20
Suction pipe $579.70
Flange screw $1.10
Square washer $5.30
Flange nut $0.90
Sealing ring $7.50
Flange screw $1.60
Spacer $110.00
Flange screw $11.30
Oil feed pipe $27.20
Oil pressure pipe $285.00
Oil pressure pipe $129.00
Pressure pipe connec $20.60
Clamp $7.40
Gasket $15.50
Ferrule $8.00
Flange screw $1.00
Bracket $127.00
Flange screw $1.10
Baffle plate $203.00
Sump $842.00
Hexagon nut $36.00
Rubber washer $7.90
Pipe $194.00
Dipstick $85.10
O-ring $5.30
Gasket $212.00
Rubber cushion $4.90
Shoulder screw $7.50
Plastic rivet $0.70
Piston cooling jet $85.70
Stud $9.60
Lock nut $0.80
Sealing ring $3.00
Reduction valve $284.00
Tube $142.00
Pipe $195.00
Pipe $236.00
Pipe $280.00
