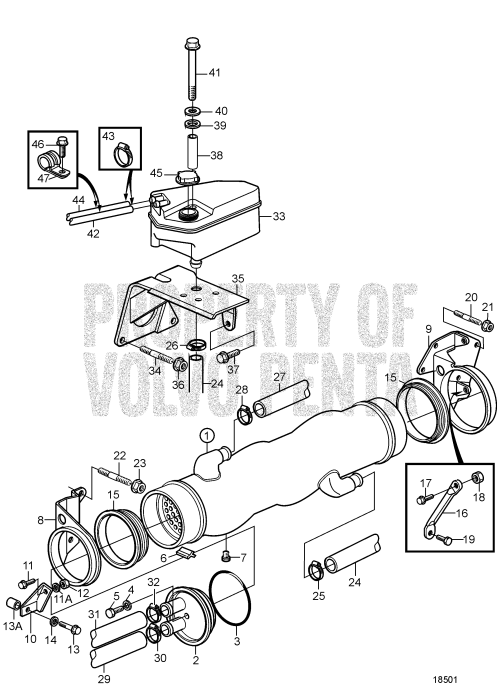

Heat Exchanger
|
1. |
Heat exchanger (3586706)
Price: $5,430.00SUGGESTED QTY:1
(3580886)
VIEW DETAILS
|
|
|
2. |
Cardboard tube (3581033)
Price: $591.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
O-ring (925027)
Price: $12.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
Gasket (964106)
Price: $3.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
5. |
Hexagon screw (963567)
Price: $8.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
6. |
Sealing strip (860127)
Price: $6.80SUGGESTED QTY:3
VIEW DETAILS
|
|
|
7. |
Plug (861551)
Price: $13.90SUGGESTED QTY:1
Early type
VIEW DETAILS
|
|
|
8. |
Bracket (860391)
Price: $1,272.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
9. |
Bracket (860392)
Price: $250.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
10. |
Stay (3581467)
Price: $123.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
11. |
Flange screw (946440)
Price: $1.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
11A. |
Spacer (3850090)
Price: $6.00SUGGESTED QTY:4
(1545204)
VIEW DETAILS
|
|
|
12. |
Flange lock nut (948645)
Price: $2.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
13. |
Flange screw (965226)
Price: $0.00SUGGESTED QTY:2
L=45mm
VIEW DETAILS
|
|
|
13A. |
Spacer sleeve (843122)
Price: $20.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
13. |
Spacer (861554)
Price: $8.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
14. |
Toothed washer (940143)
Price: $0.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
15. |
Adapter (838733)
Price: $55.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
16. |
Stay (860450)
Price: $122.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Flange screw (945444)
Price: $1.10SUGGESTED QTY:1
L=25mm
VIEW DETAILS
|
|
|
18. |
Flange lock nut (948645)
Price: $2.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
19. |
Flange screw (984850)
Price: $3.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
20. |
Stud (953002)
Price: $17.20SUGGESTED QTY:2
For earlier ver...
VIEW DETAILS
|
|
|
21. |
Flange nut (971095)
Price: $0.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
22. |
Stud (17378)
Price: $12.10SUGGESTED QTY:1
L=170mm
VIEW DETAILS
|
|
|
23. |
Flange nut (971095)
Price: $0.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
24. |
Hose (3581099)
Price: $323.00SUGGESTED QTY:1
Heat exchanger-...
VIEW DETAILS
|
|
|
25. |
Hose clamp (994562)
Price: $2.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
26. |
Hose clamp (994559)
Price: $3.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
27. |
Hose (861109)
Price: $276.00SUGGESTED QTY:1
Thermostat hous...
VIEW DETAILS
|
|
|
28. |
Hose clamp (994562)
Price: $2.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
29. |
Hose (861340)
Price: $183.00SUGGESTED QTY:1
Oil cooler - he...
VIEW DETAILS
|
|
|
30. |
Hose clamp (994561)
Price: $1.90SUGGESTED QTY:1
For 860656
VIEW DETAILS
|
|
|
31. |
Hose (861341)
Price: $148.00SUGGESTED QTY:1
Heat exchanger-...
VIEW DETAILS
|
|
|
32. |
Hose clamp (994561)
Price: $1.90SUGGESTED QTY:1
For 860656
VIEW DETAILS
|
|
|
33. |
Expansion tank (3580941)
Price: $105.00SUGGESTED QTY:1
For later versi...
VIEW DETAILS
|
|
|
34. |
Stud (953003)
Price: $19.20SUGGESTED QTY:1
For earlier ver...
VIEW DETAILS
|
|
|
34. |
Stud (953005)
Price: $26.10SUGGESTED QTY:1
L=140mm
VIEW DETAILS
|
|
|
35. |
Bracket (3581040)
Price: $334.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
36. |
Flange nut (971095)
Price: $0.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
37. |
Flange screw (946544)
Price: $0.70SUGGESTED QTY:4
VIEW DETAILS
|
|
|
38. |
Spacer sleeve (3581032)
Price: $26.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
39. |
Spacer sleeve (3285120)
Price: $7.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
40. |
Washer (976944)
Price: $0.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
41. |
Flange screw (968999)
Price: $0.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
42. |
Hose (942700)
Price: $10.70SUGGESTED QTY:1
Turbo-thermosta...
VIEW DETAILS
|
|
|
43. |
Hose clamp (976576)
Price: $2.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
44. |
Hose (942700)
Price: $10.70SUGGESTED QTY:1
Turbo-thermosta...
VIEW DETAILS
|
|
|
45. |
Pressure cap (1674083)
Price: $43.50SUGGESTED QTY:1
(1357775)
VIEW DETAILS
|
|
|
46. |
Flange screw (967949)
Price: $0.00SUGGESTED QTY:2
(965175)
VIEW DETAILS
|
|
|
47. |
Clamp (952627)
Price: $1.80SUGGESTED QTY:1
Early type
VIEW DETAILS
|
51 Items
