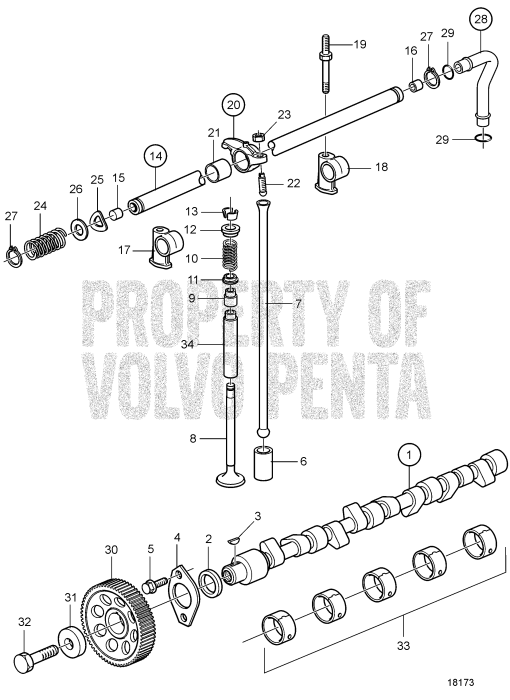

Camshaft and Valve Mechanism


1.	Camshaft (861201) This product has been discontinued Price: $2,900.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Spacer washer (1542221) Price: $50.90 SUGGESTED QTY:1 VIEW DETAILS
3.	Woodruff key (910116) Price: $4.10 SUGGESTED QTY:1 VIEW DETAILS
4.	Thrust washer (838992) Price: $62.90 SUGGESTED QTY:1 VIEW DETAILS
5.	Flange screw (946440) Price: $1.00 SUGGESTED QTY:2 VIEW DETAILS
6.	Valve tappet (1542208) Price: $145.00 SUGGESTED QTY:8 VIEW DETAILS
7.	Push rod (838636) Price: $29.80 SUGGESTED QTY:8 VIEW DETAILS
8.	Exhaust valve, exhaust (838638) Price: $190.00 SUGGESTED QTY:4 VIEW DETAILS
8.	Inlet valve, intake (838637) Price: $114.00 SUGGESTED QTY:4 VIEW DETAILS
9.	Valve stem seal (21501189) Price: $16.30 SUGGESTED QTY:8 VIEW DETAILS
10.	Valve spring (1545198) Price: $24.40 SUGGESTED QTY:8 VIEW DETAILS
11.	Valve spring washer (1332137) Price: $7.00 SUGGESTED QTY:8 VIEW DETAILS
12.	Washer (838639) Price: $43.00 SUGGESTED QTY:8 VIEW DETAILS
13.	Valve collet (1677875) Price: $1.90 SUGGESTED QTY:16 VIEW DETAILS
14.	Rocker arm shaft (838642) Price: $850.00 SUGGESTED QTY:1 VIEW DETAILS
15.	Cap plug (955083) Price: $1.80 SUGGESTED QTY:4 VIEW DETAILS
16.	Sleeve (840444) Price: $22.60 SUGGESTED QTY:1 VIEW DETAILS
17.	Adapter (838726) Price: $88.20 SUGGESTED QTY:1 VIEW DETAILS
18.	Bearing bracket (838647) Price: $79.50 SUGGESTED QTY:3 VIEW DETAILS
19.	Stud (838732) Price: $43.00 SUGGESTED QTY:4 VIEW DETAILS
20.	Rocker arm, exhaust (3581128) Price: $549.00 SUGGESTED QTY:4 No 1,3,5,7 VIEW DETAILS
20.	Rocker arm, intake (3581129) Price: $624.00 SUGGESTED QTY:4 No 2,4,6,8 VIEW DETAILS
21.	Bushing (418297) This product has been discontinued Price: $2.70 SUGGESTED QTY:4 VIEW DETAILS
22.	Ball stud (3581121) Price: $14.90 SUGGESTED QTY:4 VIEW DETAILS
23.	Hexagon nut (921781) Price: $1.40 SUGGESTED QTY:4 VIEW DETAILS
24.	Compression spring (411139) Price: $7.10 SUGGESTED QTY:3 VIEW DETAILS
25.	Spring washer (840686) Price: $14.40 SUGGESTED QTY:2 VIEW DETAILS
26.	Shim (400722) Price: $8.10 SUGGESTED QTY:2 VIEW DETAILS
27.	Snap ring (914456) Price: $1.20 SUGGESTED QTY:2 VIEW DETAILS
28.	Tube (859896) Price: $184.00 SUGGESTED QTY:1 VIEW DETAILS
29.	O-ring (969198) Price: $1.00 SUGGESTED QTY:2 VIEW DETAILS
30.	Gear (1542034) Price: $1,145.00 SUGGESTED QTY:1 VIEW DETAILS
31.	Washer (1542223) Price: $38.60 SUGGESTED QTY:1 VIEW DETAILS
32.	Flange screw (984850) Price: $3.50 SUGGESTED QTY:1 VIEW DETAILS
33.	Cylinder Block and Flywheel Housing (3055) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 KAD32P-A VIEW DETAILS
34.	Cylinder Head (3054) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 KAD32P-A VIEW DETAILS

36 Items

Grouped product items
Product Name	Qty
Camshaft $2,900.00
Spacer washer $50.90
Woodruff key $4.10
Thrust washer $62.90
Flange screw $1.00
Valve tappet $145.00
Push rod $29.80
Exhaust valve, exhaust $190.00
Inlet valve, intake $114.00
Valve stem seal $16.30
Valve spring $24.40
Valve spring washer $7.00
Washer $43.00
Valve collet $1.90
Rocker arm shaft $850.00
Cap plug $1.80
Sleeve $22.60
Adapter $88.20
Bearing bracket $79.50
Stud $43.00
Rocker arm, exhaust $549.00
Rocker arm, intake $624.00
Bushing $2.70
Ball stud $14.90
Hexagon nut $1.40
Compression spring $7.10
Spring washer $14.40
Shim $8.10
Snap ring $1.20
Tube $184.00
O-ring $1.00
Gear $1,145.00
Washer $38.60
Flange screw $3.50
Cylinder Block and Flywheel Housing Starting at $0.00
Cylinder Head Starting at $0.90
