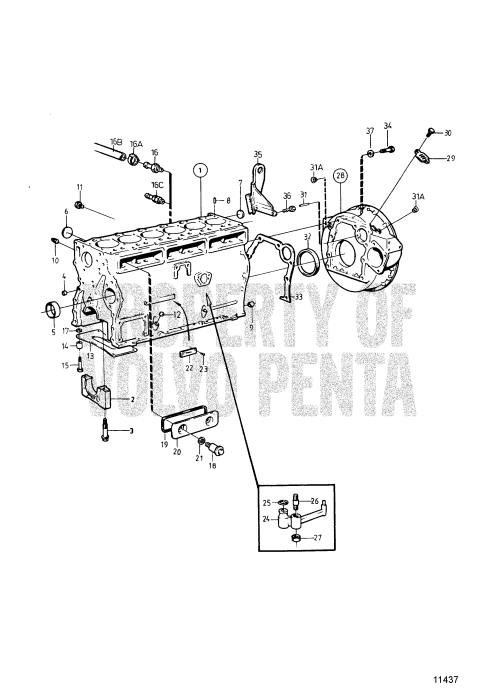

Cylinder Block and Flywheel Housing: B
|
1. |
Cylinder block (3583103)
Price: $0.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Screw (861005)
Price: $53.00SUGGESTED QTY:14
VIEW DETAILS
|
|
|
4. |
Cap plug (955083)
Price: $1.80SUGGESTED QTY:4
VIEW DETAILS
|
|
|
5. |
Camshaft bushing (1542067)
Price: $34.20SUGGESTED QTY:7
VIEW DETAILS
|
|
|
6. |
Expansion plug (463905)
Price: $10.70SUGGESTED QTY:5
VIEW DETAILS
|
|
|
7. |
Expansion plug (60112158)
Price: $14.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
8. |
Grooved pin (946402)
Price: $3.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
9. |
Guide sleeve (415311)
Price: $9.20SUGGESTED QTY:3
VIEW DETAILS
|
|
|
10. |
Plug (968146)
Price: $5.30SUGGESTED QTY:2
VIEW DETAILS
|
|
|
11. |
Plug (479979)
Price: $7.10SUGGESTED QTY:5
VIEW DETAILS
|
|
|
12. |
Cap plug (955082)
Price: $2.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13. |
Foot plate (1545159)
Price: $119.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
14. |
Spacer sleeve (1545160)
Price: $26.10SUGGESTED QTY:4
VIEW DETAILS
|
|
|
15. |
Flange screw (965187)
Price: $2.40SUGGESTED QTY:4
VIEW DETAILS
|
|
|
16. |
Hose nipple (860819)
Price: $29.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
16A. |
Hose clamp (943471)
Price: $3.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
16B. |
Hose (952967)
Price: $22.70SUGGESTED QTY:1
L=900mm
VIEW DETAILS
|
|
|
17. |
Spacer sleeve (3850090)
Price: $6.00SUGGESTED QTY:4
VIEW DETAILS
|
|
|
18. |
Shoulder screw (859447)
Price: $32.61SUGGESTED QTY:6
VIEW DETAILS
|
|
|
19. |
Sealing (1542052)
Price: $10.80SUGGESTED QTY:3
VIEW DETAILS
|
|
|
20. |
Inspection lid (877262)
Price: $0.00SUGGESTED QTY:3
VIEW DETAILS
|
|
|
21. |
Sealing ring (469846)
Price: $4.70SUGGESTED QTY:6
VIEW DETAILS
|
|
|
23. |
Drive screw (950885)
Price: $0.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
24. |
Oil jet (1542320)
Price: $124.00SUGGESTED QTY:6
VIEW DETAILS
|
|
|
25. |
O-ring (955981)
Price: $1.90SUGGESTED QTY:6
VIEW DETAILS
|
|
|
26. |
Stud (1542380)
Price: $17.10SUGGESTED QTY:6
VIEW DETAILS
|
|
|
27. |
Lock nut (990949)
Price: $1.60SUGGESTED QTY:6
VIEW DETAILS
|
|
|
28. |
Flywheel housing (3581855)
Price: $1,380.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
29. |
Cover (407092)
Price: $161.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
30. |
Flange screw (984724)
Price: $0.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
31. |
Pin (404069)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
31A. |
Plug (860926)
Price: $9.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
32. |
Sealing ring (21780376)
Price: $15.00SUGGESTED QTY:1
(421629)
VIEW DETAILS
|
|
|
33. |
Gasket (829487)
Price: $10.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
34. |
Flange screw (965185)
Price: $2.00SUGGESTED QTY:6
L=40mm
VIEW DETAILS
|
|
|
34. |
Flange screw (965220)
Price: $1.20SUGGESTED QTY:2
L=45mm
VIEW DETAILS
|
|
|
35. |
Lifting bracket (860419)
Price: $292.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
36. |
Flange screw (946329)
Price: $1.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
37. |
Spring washer (941908)
Price: $0.40SUGGESTED QTY:8
VIEW DETAILS
|
39 Items
