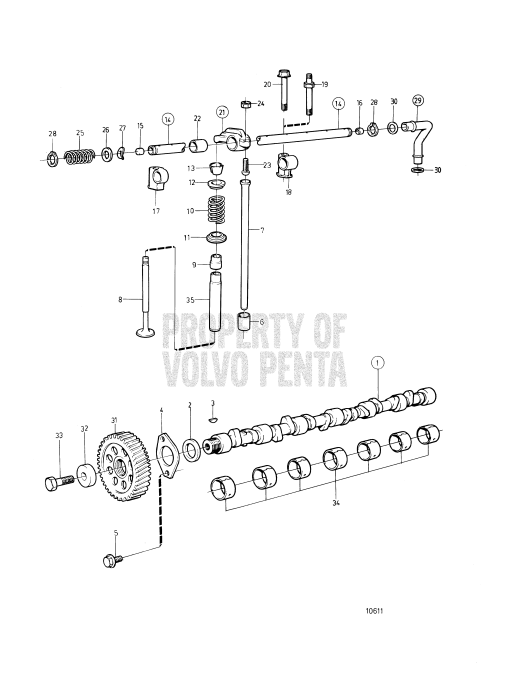

Camshaft and Valve Mechanism
|
1. |
Camshaft (3817142)
Price: $3,889.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Spacer washer (1542221)
Price: $50.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Woodruff key (910116)
Price: $4.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
Thrust washer (838992)
Price: $62.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
5. |
Flange screw (946440)
Price: $1.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
6. |
Valve tappet (1542208)
Price: $145.00SUGGESTED QTY:12
VIEW DETAILS
|
|
|
7. |
Push rod (838636)
Price: $29.80SUGGESTED QTY:12
VIEW DETAILS
|
|
|
8. |
Inlet valve, intake (838637)
Price: $114.00SUGGESTED QTY:6
VIEW DETAILS
|
|
|
8. |
Exhaust valve, exhaust (838638)
Price: $190.00SUGGESTED QTY:6
VIEW DETAILS
|
|
|
9. |
Valve stem seal (21501189)
Price: $16.30SUGGESTED QTY:12
VIEW DETAILS
|
|
|
10. |
Valve spring (1545198)
Price: $24.40SUGGESTED QTY:12
VIEW DETAILS
|
|
|
11. |
Valve spring washer (1332137)
Price: $7.00SUGGESTED QTY:12
VIEW DETAILS
|
|
|
12. |
Washer (838639)
Price: $43.00SUGGESTED QTY:12
VIEW DETAILS
|
|
|
13. |
Valve collet (1677875)
Price: $1.90SUGGESTED QTY:24
VIEW DETAILS
|
|
|
14. |
Rocker arm shaft (840444)
Price: $22.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
15. |
Cap plug (955083)
Price: $1.80SUGGESTED QTY:4
VIEW DETAILS
|
|
|
16. |
Sleeve (840444)
Price: $22.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Adapter (838726)
Price: $88.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
Bearing bracket (838647)
Price: $79.50SUGGESTED QTY:5
VIEW DETAILS
|
|
|
19. |
Stud (838732)
Price: $43.00SUGGESTED QTY:4
VIEW DETAILS
|
|
|
20. |
Flange screw (965188)
Price: $6.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
21. |
Rocker arm (3581128)
Price: $549.00SUGGESTED QTY:6
No 1,3,5,7,9,11...
VIEW DETAILS
|
|
|
21. |
Rocker arm (3581129)
Price: $624.00SUGGESTED QTY:6
No 2,4,6,8,10,1...
VIEW DETAILS
|
|
|
22. |
Bushing (418297)
Price: $2.70SUGGESTED QTY:12
VIEW DETAILS
|
|
|
23. |
Ball stud (3581121)
Price: $14.90SUGGESTED QTY:12
VIEW DETAILS
|
|
|
24. |
Hexagon nut (921781)
Price: $1.40SUGGESTED QTY:12
VIEW DETAILS
|
|
|
25. |
Compression spring (411139)
Price: $7.10SUGGESTED QTY:5
VIEW DETAILS
|
|
|
26. |
Spring washer (840686)
Price: $14.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
27. |
Shim (400722)
Price: $8.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
28. |
Snap ring (914456)
Price: $1.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
29. |
Tube (859896)
Price: $184.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
30. |
O-ring (969198)
Price: $1.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
31. |
Gear, camshaft (1542034)
Price: $1,145.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
32. |
Washer (1542223)
Price: $38.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
33. |
Flange screw (984850)
Price: $3.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
34. |
Camshaft bushing (1542067)
Price: $34.20SUGGESTED QTY:7
VIEW DETAILS
|
|
|
35. |
Valve guide (3582561)
Price: $53.00SUGGESTED QTY:12
VIEW DETAILS
|
37 Items
