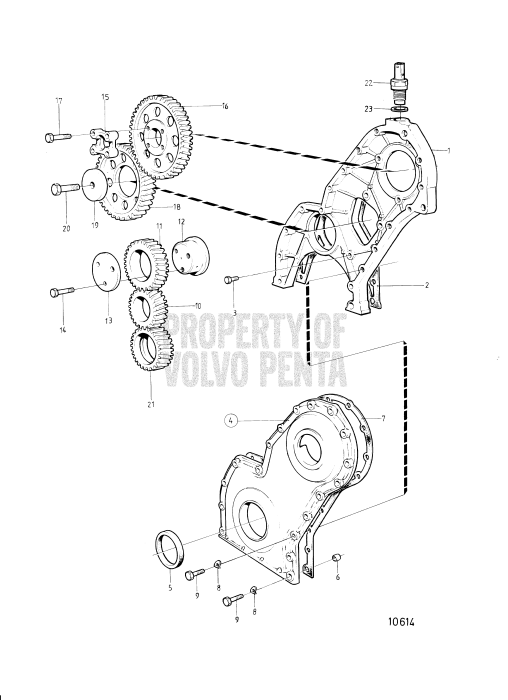

Timing Gear Casing and Gears: B
|
1. |
Timing gear casing (976931)
Price: $6.80SUGGESTED QTY:1
Repl by 3581447...
VIEW DETAILS
|
|
|
1. |
Timing gear casing (3581447)
Price: $1,770.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Gasket (859039)
Price: $62.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Flange screw (946173)
Price: $1.10SUGGESTED QTY:3
L=20mm
VIEW DETAILS
|
|
|
3. |
Flange screw (946671)
Price: $1.10SUGGESTED QTY:1
L=30mm
VIEW DETAILS
|
|
|
4. |
Cover (842991)
Price: $1,908.00SUGGESTED QTY:1
Replaced by 842...
VIEW DETAILS
|
|
|
5. |
Sealing ring (1542318)
Price: $41.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
6. |
Guide sleeve (415311)
Price: $9.20SUGGESTED QTY:3
VIEW DETAILS
|
|
|
7. |
Gasket (859038)
Price: $46.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
8. |
Spring washer (941907)
Price: $0.70SUGGESTED QTY:2
VIEW DETAILS
|
|
|
9. |
Flange screw (965182)
Price: $0.00SUGGESTED QTY:2
L=80mm
VIEW DETAILS
|
|
|
9. |
Flange screw (995500)
Price: $2.00SUGGESTED QTY:1
L=85mm
VIEW DETAILS
|
|
|
9. |
Flange screw (946470)
Price: $1.70SUGGESTED QTY:8
L=35mm
VIEW DETAILS
|
|
|
9. |
Flange screw (947760)
Price: $1.40SUGGESTED QTY:1
L=40mm
VIEW DETAILS
|
|
|
9. |
Flange screw (948217)
Price: $1.00SUGGESTED QTY:1
L=45mm
VIEW DETAILS
|
|
|
9. |
Flange screw (965180)
Price: $3.90SUGGESTED QTY:6
L=70mm
VIEW DETAILS
|
|
|
10. |
Gear, crankshaft (1542305)
Price: $912.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
11. |
Gear (1542061)
Price: $1,071.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
12. |
Bearing spindle (838997)
Price: $449.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13. |
Thrust washer (1542065)
Price: $236.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
14. |
Flange screw (965180)
Price: $3.90SUGGESTED QTY:6
L=70mm
VIEW DETAILS
|
|
|
15. |
Companion flange (829523)
Price: $57.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
16. |
Gear, fuel inj. pump (3581531)
Price: $884.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Hexagon screw (955298)
Price: $2.40SUGGESTED QTY:4
VIEW DETAILS
|
|
|
18. |
Gear, camshaft (1542034)
Price: $1,145.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
19. |
Washer (1542223)
Price: $38.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
20. |
Flange screw (984850)
Price: $3.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
21. |
Oil pump wheel, oil pump (1542215)
Price: $513.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
22. |
Tachometer sensor (862251)
Price: $443.00SUGGESTED QTY:1
For revolution ...
VIEW DETAILS
|
|
|
23. |
Gasket (957181)
Price: $9.90SUGGESTED QTY:1
VIEW DETAILS
|
30 Items
