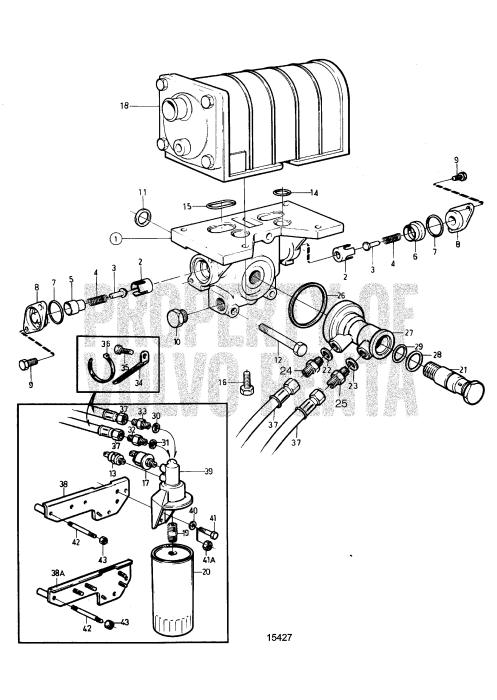

Oil Filter


1.	Housing (3581943) Price: $1,473.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Valve seat (1542265) Price: $12.40 SUGGESTED QTY:2 VIEW DETAILS
3.	Valve cone (471085) Price: $13.90 SUGGESTED QTY:2 VIEW DETAILS
4.	Spring (468087) Price: $7.00 SUGGESTED QTY:2 VIEW DETAILS
5.	Sleeve (3581951) Price: $8.80 SUGGESTED QTY:1 VIEW DETAILS
6.	Sleeve (3581950) Price: $11.70 SUGGESTED QTY:1 VIEW DETAILS
7.	O-ring (949659) Price: $6.50 SUGGESTED QTY:2 VIEW DETAILS
8.	Cover (1542267) Price: $15.60 SUGGESTED QTY:2 VIEW DETAILS
9.	Flange screw (946544) Price: $0.70 SUGGESTED QTY:4 VIEW DETAILS
10.	Plug (968146) Price: $5.30 SUGGESTED QTY:1 (952077) VIEW DETAILS
11.	Sealing ring (469483) Price: $7.50 SUGGESTED QTY:2 VIEW DETAILS
12.	Flange screw (965182) This product has been discontinued Price: $0.00 SUGGESTED QTY:2 L=80mm VIEW DETAILS
13.	Pressure monitor (863169) Price: $112.00 SUGGESTED QTY:1 0,7 bar VIEW DETAILS
14.	Sealing ring (469483) Price: $7.50 SUGGESTED QTY:2 VIEW DETAILS
15.	Sealing ring (859086) Price: $13.20 SUGGESTED QTY:2 VIEW DETAILS
16.	Flange screw (946671) Price: $1.10 SUGGESTED QTY:1 L=30mm VIEW DETAILS
17.	Sensor, oil-engine (866835) Price: $253.00 SUGGESTED QTY:1 0-10 bar VIEW DETAILS
18.	Oil cooler (3808226) Price: $588.00 SUGGESTED QTY:1 See HS1A catalo... VIEW DETAILS
19.	Nipple (423067) Price: $32.90 SUGGESTED QTY:1 VIEW DETAILS
20.	Oil filter (423135) Price: $24.00 SUGGESTED QTY:1 VIEW DETAILS
21.	Screw (860482) Price: $111.00 SUGGESTED QTY:1 VIEW DETAILS
22.	Gasket (947627) Price: $1.60 SUGGESTED QTY:1 VIEW DETAILS
23.	Gasket (947627) Price: $1.60 SUGGESTED QTY:1 VIEW DETAILS
24.	Nipple (947554) Price: $25.00 SUGGESTED QTY:1 VIEW DETAILS
25.	Nipple (3582505) Price: $38.60 SUGGESTED QTY:1 VIEW DETAILS
26.	O-ring (967343) Price: $11.80 SUGGESTED QTY:1 VIEW DETAILS
27.	Adapter (860483) This product has been discontinued Price: $57.70 SUGGESTED QTY:1 VIEW DETAILS
28.	O-ring (949659) Price: $6.50 SUGGESTED QTY:1 VIEW DETAILS
29.	O-ring (949721) Price: $8.20 SUGGESTED QTY:1 VIEW DETAILS
30.	Gasket (947627) Price: $1.60 SUGGESTED QTY:1 VIEW DETAILS
31.	Gasket (947627) Price: $1.60 SUGGESTED QTY:1 VIEW DETAILS
32.	Nipple (3582505) Price: $38.60 SUGGESTED QTY:1 VIEW DETAILS
33.	Nipple (947554) Price: $25.00 SUGGESTED QTY:1 VIEW DETAILS
34.	Bracket (21619824) Price: $59.80 SUGGESTED QTY:1 VIEW DETAILS
35.	Flange screw (946440) Price: $1.00 SUGGESTED QTY:2 VIEW DETAILS
36.	Cable tie (948211) Price: $2.90 SUGGESTED QTY:1 VIEW DETAILS
37.	Oil hose (860527) Price: $393.00 SUGGESTED QTY:2 VIEW DETAILS
38.	Bracket (860529) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Early type, Obs... VIEW DETAILS
38A.	Bracket (861550) Price: $180.00 SUGGESTED QTY:1 Late type VIEW DETAILS
39.	Filter housing (860530) Price: $2,014.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
40.	Spring washer (941907) Price: $0.70 SUGGESTED QTY:2 VIEW DETAILS
41A.	Flange nut (990940) Price: $0.90 SUGGESTED QTY:2 For 861550 VIEW DETAILS
41.	Flange screw (945444) Price: $1.10 SUGGESTED QTY:2 For 860529 VIEW DETAILS
42.	Stud (848306) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
43.	Nut (3852064) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
