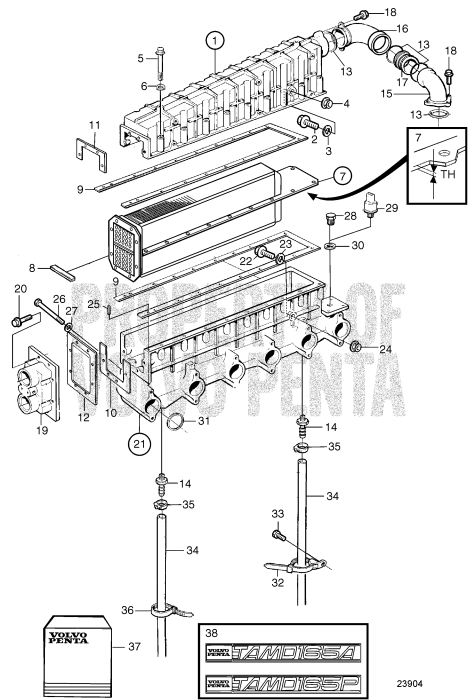

Inlet Manifold and Charge Air Cooler. SN-XXXXXXXXXX/19705
|
1. |
Inlet pipe (3835913)
Price: $7,790.00SUGGESTED QTY:1
Repl by 3835913...
VIEW DETAILS
|
|
|
5. |
Flange screw (995478)
Price: $4.60SUGGESTED QTY:18
(973080)
VIEW DETAILS
|
|
|
6. |
Spring washer (941907)
Price: $0.70SUGGESTED QTY:44
VIEW DETAILS
|
|
|
15. |
Connection pipe, turbo (3825944)
Price: $515.14SUGGESTED QTY:1
TAMD165A
VIEW DETAILS
|
|
|
18. |
Flange screw (946173)
Price: $1.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
19. |
Cover (3828249)
Price: $2,957.00SUGGESTED QTY:1
Replaced by 1ea...
VIEW DETAILS
|
|
|
20. |
Flange screw (945444)
Price: $1.10SUGGESTED QTY:18
L=25mm
VIEW DETAILS
|
|
|
21. |
Inlet pipe, for support screw (3826929)
Price: $6,471.41SUGGESTED QTY:1
Repl by 3826929...
VIEW DETAILS
|
|
|
21. |
Inlet pipe (3826929)
Price: $6,471.41SUGGESTED QTY:1
Spare part desi...
VIEW DETAILS
|
|
|
26. |
Hexagon screw (968303)
Price: $7.20SUGGESTED QTY:1
L=190mm
VIEW DETAILS
|
|
|
27. |
Spring washer (941907)
Price: $0.70SUGGESTED QTY:44
VIEW DETAILS
|
|
|
29. |
Supervising Equipment. Classifiable (5398)
SUGGESTED QTY:1
TAMD165A-A, TAM...
VIEW DETAILS
|
|
|
33. |
6 point socket screw, cylinder block (986214)
Price: $1.00SUGGESTED QTY:1
VIEW DETAILS
|
13 Items
