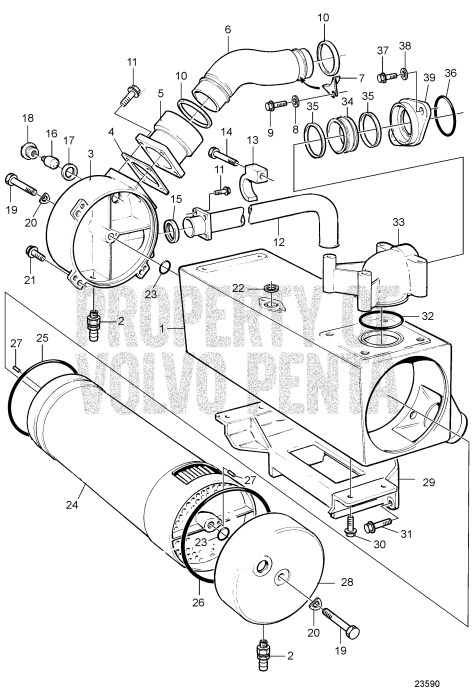

Heat Exchanger


1.	Heat exchanger housi (3825903) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 SN-1101052532/X... VIEW DETAILS
1.	Housing (3826858) Price: $5,570.00 SUGGESTED QTY:1 SN-1101053650/X... VIEW DETAILS
1.	Housing (3826858) Price: $5,570.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Shut-off cock (997641) Price: $40.70 SUGGESTED QTY:1 (947893) VIEW DETAILS
3.	Cardboard tube (849031) Price: $3,509.00 SUGGESTED QTY:1 VIEW DETAILS
4.	Gasket (842137) Price: $9.60 SUGGESTED QTY:1 (862022) VIEW DETAILS
5.	Retainer (864311) Price: $689.00 SUGGESTED QTY:1 VIEW DETAILS
6.	Coolant pipe, charge air cooler (864382) Price: $1,177.00 SUGGESTED QTY:1 VIEW DETAILS
7.	Clamp (864559) Price: $125.00 SUGGESTED QTY:1 VIEW DETAILS
8.	Washer (976944) Price: $0.10 SUGGESTED QTY:1 VIEW DETAILS
9.	Flange screw (944926) Price: $4.10 SUGGESTED QTY:1 VIEW DETAILS
10.	Sealing ring (863209) Price: $38.60 SUGGESTED QTY:2 VIEW DETAILS
11.	Flange screw (946173) Price: $1.10 SUGGESTED QTY:2 VIEW DETAILS
12.	Coolant pipe (866772) Price: $1,738.00 SUGGESTED QTY:1 VIEW DETAILS
13.	Clamp (849401) Price: $423.10 SUGGESTED QTY:2 VIEW DETAILS
14.	Flange screw (965178) Price: $1.00 SUGGESTED QTY:2 VIEW DETAILS
16.	Zinc anode (823661) Price: $25.80 SUGGESTED QTY:2 VIEW DETAILS
17.	Gasket (836169) Price: $5.20 SUGGESTED QTY:2 VIEW DETAILS
18.	Plug (823662) Price: $64.00 SUGGESTED QTY:2 VIEW DETAILS
19.	Hexagon screw (955373) This product has been discontinued Price: $0.00 SUGGESTED QTY:2 VIEW DETAILS
20.	Spring washer (941912) Price: $0.90 SUGGESTED QTY:12 VIEW DETAILS
21.	Flange screw (946472) This product has been discontinued Price: $0.00 SUGGESTED QTY:2 VIEW DETAILS
23.	O-ring (955977) Price: $0.60 SUGGESTED QTY:2 VIEW DETAILS
24.	Heat exchanger (3825961) Price: $20,600.00 SUGGESTED QTY:1 VIEW DETAILS
25.	O-ring, heat exchanger insert (925276) Price: $13.40 SUGGESTED QTY:1 VIEW DETAILS
26.	O-ring (925278) Price: $17.70 SUGGESTED QTY:3 VIEW DETAILS
27.	Pin (950529) Price: $8.20 SUGGESTED QTY:2 VIEW DETAILS
28.	Cardboard tube (849032) Price: $2,099.00 SUGGESTED QTY:1 VIEW DETAILS
29.	Bracket (849053) Price: $1,329.00 SUGGESTED QTY:1 VIEW DETAILS
30.	Flange screw (946472) This product has been discontinued Price: $0.00 SUGGESTED QTY:2 VIEW DETAILS
31.	Flange screw (965190) Price: $2.80 SUGGESTED QTY:4 VIEW DETAILS
32.	O-ring (925079) Price: $3.50 SUGGESTED QTY:1 VIEW DETAILS
33.	Coolant pipe (866577) Price: $1,340.00 SUGGESTED QTY:1 VIEW DETAILS
34.	Connector (3826974) Price: $387.00 SUGGESTED QTY:1 (866563) VIEW DETAILS
35.	Sealing ring (863210) Price: $39.80 SUGGESTED QTY:2 VIEW DETAILS
36.	O-ring, therm. housing (925078) Price: $5.50 SUGGESTED QTY:1 VIEW DETAILS
37.	Flange screw (945444) Price: $1.10 SUGGESTED QTY:18 L=25mm VIEW DETAILS
38.	Washer (976944) Price: $0.10 SUGGESTED QTY:1 VIEW DETAILS
39.	Flange connection, therm. housing (866566) Price: $358.00 SUGGESTED QTY:1 VIEW DETAILS

39 Items

Grouped product items
Product Name	Qty
Housing $5,570.00
Heat exchanger housi $0.00
Housing $5,570.00
Shut-off cock $40.70
Cardboard tube $3,509.00
Gasket $9.60
Retainer $689.00
Coolant pipe, charge air cooler $1,177.00
Clamp $125.00
Flange screw $4.10
Sealing ring $38.60
Flange screw $1.10
Coolant pipe $1,738.00
Clamp $423.10
Flange screw $1.00
Gasket $46.30
Zinc anode $25.80
Gasket $5.20
Plug $64.00
Hexagon screw $0.00
Spring washer $0.90
Sealing ring $5.70
O-ring $0.60
Heat exchanger $20,600.00
O-ring, heat exchanger insert $13.40
O-ring $17.70
Pin $8.20
Cardboard tube $2,099.00
Bracket $1,329.00
Flange screw $0.00
Flange screw $2.80
O-ring $3.50
Coolant pipe $1,340.00
Connector $387.00
Sealing ring $39.80
O-ring, therm. housing $5.50
Flange screw $1.10
Washer $0.10
Flange connection, therm. housing $358.00
