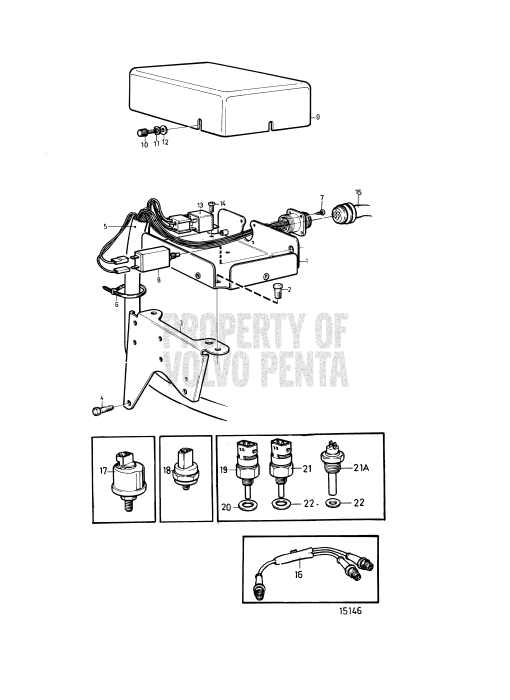

Electrical System


1.	Bracket (860417) Price: $348.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Flange screw (984724) Price: $0.90 SUGGESTED QTY:2 VIEW DETAILS
3.	Bracket (3580668) Price: $85.90 SUGGESTED QTY:1 VIEW DETAILS
4.	Flange screw (947760) Price: $1.40 SUGGESTED QTY:1 L=40mm VIEW DETAILS
4.	Flange screw (948217) Price: $1.00 SUGGESTED QTY:1 L=45mm VIEW DETAILS
5.	Wiring harness (873743) Price: $578.00 SUGGESTED QTY:1 (873056) VIEW DETAILS
6.	Cable tie (948210) Price: $1.20 SUGGESTED QTY:1 VIEW DETAILS
7.	Cross recessed screw (955119) Price: $0.80 SUGGESTED QTY:4 VIEW DETAILS
8.	Fuse (966689) Price: $128.00 SUGGESTED QTY:1 VIEW DETAILS
9.	Cover (860779) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
10.	Lock screw (846736) Price: $13.40 SUGGESTED QTY:3 VIEW DETAILS
11.	Spring washer (941904) Price: $0.10 SUGGESTED QTY:1 W VIEW DETAILS
12.	Washer (960137) Price: $1.00 SUGGESTED QTY:3 VIEW DETAILS
13.	Relay (22637542) Price: $76.30 SUGGESTED QTY:2 12V 50A VIEW DETAILS
13.	Relay (1324492) Price: $35.30 SUGGESTED QTY:1 (853545) 12V 30... VIEW DETAILS
14.	Cross recessed screw (968476) Price: $0.30 SUGGESTED QTY:2 VIEW DETAILS
15.	Extension cable'verl (846648) Price: $205.00 SUGGESTED QTY:1 L=3.0m VIEW DETAILS
15.	Extension cable'verl (846649) Price: $205.00 SUGGESTED QTY:1 L=5.0m VIEW DETAILS
15.	Extension cable'verl (846650) Price: $268.00 SUGGESTED QTY:1 L=7.0m VIEW DETAILS
16.	Distributing contact (1140598) Price: $420.00 SUGGESTED QTY:1 For double stee... VIEW DETAILS
17.	Sensor, oil-engine (866835) Price: $253.00 SUGGESTED QTY:1 0-10 bar VIEW DETAILS
17.	Sensor, oil-engine (866836) Price: $183.00 SUGGESTED QTY:1 For double stee... VIEW DETAILS
18.	Pressure monitor (863169) Price: $112.00 SUGGESTED QTY:1 0,7 bar VIEW DETAILS
19.	Thermo monitor, coolant water temp. (862250) Price: $361.00 SUGGESTED QTY:1 97°C VIEW DETAILS
20.	Gasket (957181) Price: $9.90 SUGGESTED QTY:1 VIEW DETAILS
21A.	Temperature sensor, coolant water temp. (843325) Price: $195.00 SUGGESTED QTY:1 Late type VIEW DETAILS
21.	Temperature sensor (840074) Price: $90.10 SUGGESTED QTY:1 For double inst... VIEW DETAILS
21.	Temperature sensor, coolant water temp. (862154) Price: $141.00 SUGGESTED QTY:1 Early type VIEW DETAILS
21.	Temperature sensor, coolant water temp. (862567) Price: $223.00 SUGGESTED QTY:1 For double inst... VIEW DETAILS
22.	Gasket (957181) Price: $9.90 SUGGESTED QTY:1 VIEW DETAILS
