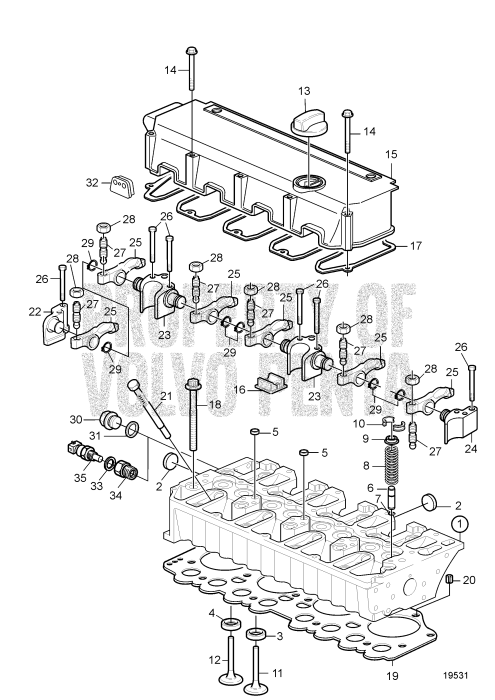

Cylinder Head


1.	Cylinder head (3803988) Price: $6,310.00 SUGGESTED QTY:1 (20405500) VIEW DETAILS
2.	Cap plug (20412745) Price: $5.40 SUGGESTED QTY:3 VIEW DETAILS
3.	Valve seat, intake (20459962) Price: $27.70 SUGGESTED QTY:4 VIEW DETAILS
4.	Valve seat, exhaust (20459963) Price: $27.70 SUGGESTED QTY:4 VIEW DETAILS
5.	Cap plug (20412733) Price: $4.80 SUGGESTED QTY:3 VIEW DETAILS
6.	Valve guide (20405897) Price: $22.90 SUGGESTED QTY:8 Replaced by 213... VIEW DETAILS
7.	O-ring (976013) Price: $9.50 SUGGESTED QTY:8 VIEW DETAILS
8.	Compression spring (11700347) Price: $17.80 SUGGESTED QTY:8 VIEW DETAILS
9.	Valve spring washer (11700346) Price: $24.30 SUGGESTED QTY:8 VIEW DETAILS
10.	Collet (11700345) Price: $6.80 SUGGESTED QTY:16 VIEW DETAILS
11.	Inlet valve, intake (20714469) Price: $65.00 SUGGESTED QTY:4 VIEW DETAILS
12.	Exhaust valve, exhaust (20565912) Price: $54.90 SUGGESTED QTY:4 VIEW DETAILS
13.	Filler cap (20412589) Price: $22.80 SUGGESTED QTY:1 VIEW DETAILS
14.	Flange screw (22278501) Price: $4.60 SUGGESTED QTY:9 VIEW DETAILS
15.	Valve cover (20725337) Price: $1,291.00 SUGGESTED QTY:1 When replacing ... VIEW DETAILS
15.	Valve cover (20725337) Price: $1,291.00 SUGGESTED QTY:1 Metal gasket on... VIEW DETAILS
16.	Cardboard tube (20412590) Price: $19.50 SUGGESTED QTY:1 VIEW DETAILS
17.	Plane gasket (20412588) Price: $54.00 SUGGESTED QTY:1 When replacing ... VIEW DETAILS
17.	Gasket (20725315) Price: $126.00 SUGGESTED QTY:1 Metal gasket on... VIEW DETAILS
18.	Six point screw (11700334) Price: $31.90 SUGGESTED QTY:18 VIEW DETAILS
19.	Cylinder head gasket (11700335) Price: $192.00 SUGGESTED QTY:1 TH=1,54mm, One ... VIEW DETAILS
19.	Cylinder head gasket (11700336) Price: $194.00 SUGGESTED QTY:1 TH=1,64mm, Two ... VIEW DETAILS
19.	Cylinder head gasket (23193385) Price: $120.00 SUGGESTED QTY:1 TH=1,74mm, Thre... VIEW DETAILS
20.	Spring pin (20405521) Price: $11.30 SUGGESTED QTY:2 VIEW DETAILS
21.	Plug (20405895) Price: $33.70 SUGGESTED QTY:4 VIEW DETAILS
22.	Bracket (11700369) Price: $147.00 SUGGESTED QTY:1 VIEW DETAILS
23.	Bracket (11700368) Price: $163.00 SUGGESTED QTY:3 VIEW DETAILS
24.	Bracket (11700367) Price: $147.00 SUGGESTED QTY:1 VIEW DETAILS
25.	Rocker arm (11700370) This product has been discontinued Price: $0.00 SUGGESTED QTY:8 VIEW DETAILS
26.	Screw (955305) Price: $2.80 SUGGESTED QTY:10 VIEW DETAILS
27.	Screw (20913851) Price: $32.20 SUGGESTED QTY:8 VIEW DETAILS
28.	Hexagon nut (11700373) Price: $0.90 SUGGESTED QTY:8 VIEW DETAILS
29.	Snap ring (945495) Price: $2.70 SUGGESTED QTY:8 VIEW DETAILS
30.	Plug (20464451) Price: $18.40 SUGGESTED QTY:1 VIEW DETAILS
31.	Gasket (907137) Price: $15.90 SUGGESTED QTY:1 VIEW DETAILS
32.	Sealing ring (888770) Price: $30.50 SUGGESTED QTY:4 VIEW DETAILS
33.	Gasket (993784) Price: $4.30 SUGGESTED QTY:1 VIEW DETAILS
34.	Adapter (3587775) Price: $139.00 SUGGESTED QTY:1 VIEW DETAILS
35.	Contacts and Sensors (6559) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 D5A-T, D5A-TA, ... VIEW DETAILS

39 Items

Grouped product items
Product Name	Qty
Cylinder head $6,310.00
Cap plug $5.40
Valve seat, intake $27.70
Valve seat, exhaust $27.70
Cap plug $4.80
Valve guide $22.90
O-ring $9.50
Compression spring $17.80
Valve spring washer $24.30
Collet $6.80
Inlet valve, intake $65.00
Exhaust valve, exhaust $54.90
Filler cap $22.80
Flange screw $4.60
Valve cover $1,291.00
Valve cover $1,291.00
Cardboard tube $19.50
Gasket $126.00
Plane gasket $54.00
Six point screw $31.90
Cylinder head gasket $194.00
Cylinder head gasket $120.00
Cylinder head gasket $192.00
Spring pin $11.30
Plug $33.70
Bracket $147.00
Bracket $163.00
Bracket $147.00
Rocker arm $0.00
Screw $2.80
Screw $32.20
Hexagon nut $0.90
Snap ring $2.70
Plug $18.40
Gasket $15.90
Sealing ring $30.50
Gasket $4.30
Adapter $139.00
Contacts and Sensors Starting at $0.00
