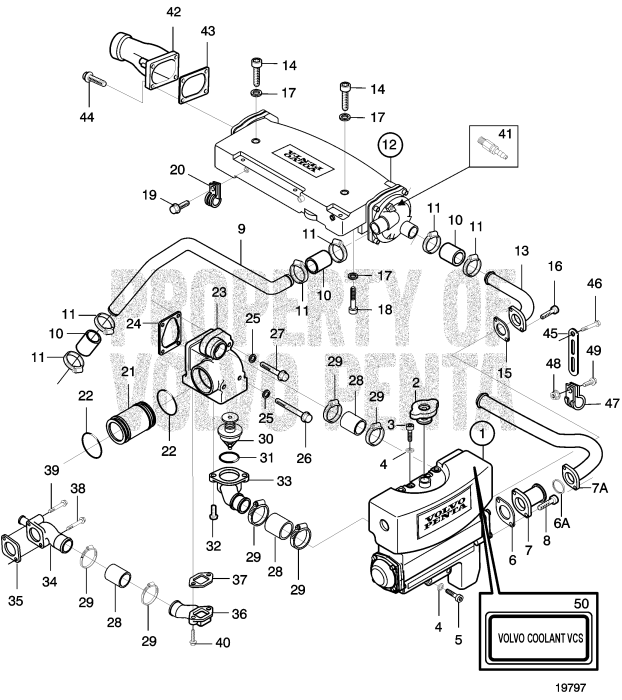

Heat Exchanger, Charge Air Cooler and Thermostat Housing. Sea Water Cooling
|
1. |
Heat exchanger (3838284)
Price: $7,450.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
1. |
Heat Exchanger, Components (6423)
SUGGESTED QTY:1
D5A-T, D5A-TA, ...
VIEW DETAILS
|
|
|
2. |
Pressure cap (3838338)
Price: $182.00SUGGESTED QTY:1
(1 bar)
VIEW DETAILS
|
|
|
3. |
Hexagon screw (970893)
Price: $19.00SUGGESTED QTY:2
L=150mm
VIEW DETAILS
|
|
|
4. |
Washer (20549890)
Price: $1.40SUGGESTED QTY:4
VIEW DETAILS
|
|
|
5. |
Flange screw (975103)
Price: $4.30SUGGESTED QTY:2
L=80mm
VIEW DETAILS
|
|
|
6A. |
Gasket (864491)
Price: $40.80SUGGESTED QTY:1
Later productio...
VIEW DETAILS
|
|
|
6. |
Gasket (3838312)
Price: $4.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
7. |
Flange (3838285)
Price: $323.00SUGGESTED QTY:1
Heat exchanger-...
VIEW DETAILS
|
|
|
7A. |
Water pipe (3836201)
Price: $608.00SUGGESTED QTY:1
Heat exchanger-...
VIEW DETAILS
|
|
|
8. |
Hex. socket screw (959239)
Price: $3.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
9. |
Seawater pipe (888896)
Price: $1,060.00SUGGESTED QTY:1
Sea water pump-...
VIEW DETAILS
|
|
|
10. |
Hose (24007729)
Price: $127.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
11. |
Hose clamp (961671)
Price: $4.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
12. |
After Cooler, Components (6424)
SUGGESTED QTY:1
D5A-TA, D5A-B T...
VIEW DETAILS
|
|
|
12. |
Intercooler (3838414)
Price: $12,800.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13. |
Coolant pipe (3838293)
Price: $409.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
14. |
Screw (20797917)
Price: $26.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
15. |
Gasket (3838312)
Price: $4.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
16. |
Hex. socket screw (959239)
Price: $3.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
17. |
Washer (20405802)
Price: $3.70SUGGESTED QTY:4
VIEW DETAILS
|
|
|
18. |
Hex. socket screw (959223)
Price: $2.10SUGGESTED QTY:2
L=30mm
VIEW DETAILS
|
|
|
19. |
Screw (946440)
Price: $1.00SUGGESTED QTY:1
L=16mm
VIEW DETAILS
|
|
|
20. |
Clamp (888852)
Price: $15.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
21. |
Water pipe (888827)
Price: $98.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
22. |
O-ring (20412325)
Price: $5.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
23. |
Thermostat housing (888844)
Price: $646.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
24. |
Gasket (888845)
Price: $16.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
25. |
Washer (976945)
Price: $1.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
26. |
Hexagon screw (967825)
Price: $6.00SUGGESTED QTY:2
L=165mm
VIEW DETAILS
|
|
|
27. |
Hexagon screw (888847)
Price: $17.10SUGGESTED QTY:2
L=115mm
VIEW DETAILS
|
|
|
28. |
Hose (3838575)
Price: $56.20SUGGESTED QTY:3
VIEW DETAILS
|
|
|
29. |
Hose clamp (961672)
Price: $5.30SUGGESTED QTY:6
VIEW DETAILS
|
|
|
30. |
Thermostat (20450736)
Price: $115.00SUGGESTED QTY:1
83°C
VIEW DETAILS
|
|
|
31. |
Sealing ring (20459961)
Price: $6.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
32. |
Flange screw (984738)
Price: $1.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
33. |
Water outlet pipe (888849)
Price: $347.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
34. |
Water outlet pipe (888817)
Price: $287.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
35. |
Gasket (20412341)
Price: $7.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
36. |
Water inlet pipe (888818)
Price: $299.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
37. |
Gasket (888820)
Price: $6.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
38. |
Flange screw (996778)
Price: $8.40SUGGESTED QTY:1
L=95mm
VIEW DETAILS
|
|
|
39. |
Screw (996812)
Price: $8.80SUGGESTED QTY:10
L=80mm
VIEW DETAILS
|
|
|
40. |
Flange screw (994386)
Price: $10.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
41. |
Shut-off cock (966871)
Price: $85.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
42. |
Charge air pipe (888876)
Price: $366.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
43. |
Intake gasket (888775)
Price: $21.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
44. |
Flange screw (984735)
Price: $1.30SUGGESTED QTY:2
L=25mm
VIEW DETAILS
|
|
|
45. |
Bracket (965544)
Price: $6.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
46. |
Hexagon screw (970891)
Price: $7.20SUGGESTED QTY:1
L=130mm
VIEW DETAILS
|
|
|
47. |
Clamp (969194)
Price: $5.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
48. |
Flange nut (990940)
Price: $0.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
49. |
Flange screw (984734)
Price: $2.00SUGGESTED QTY:22
L=35mm
VIEW DETAILS
|
|
|
50. |
Label (20777630)
Price: $13.50SUGGESTED QTY:1
VIEW DETAILS
|
54 Items
