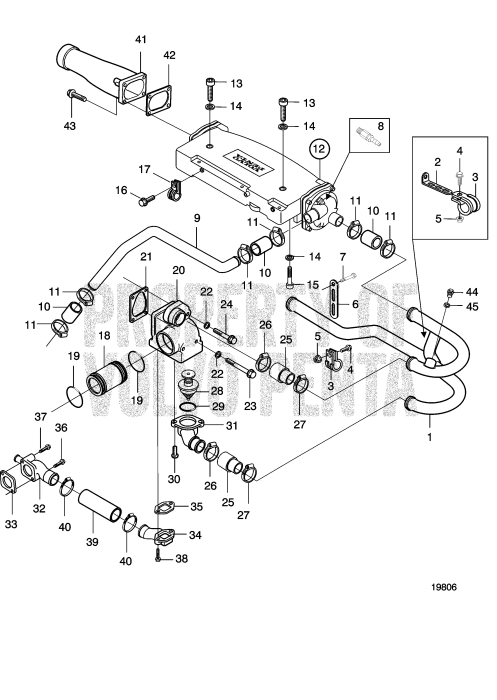

Keel Cooling, 1,5 Circuit with Charge Air Cooler and Thermostat Housing
|
1. |
Water pipe (3839441)
Price: $970.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Bracket (965562)
Price: $4.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Clamp (969194)
Price: $5.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
Flange screw (984734)
Price: $2.00SUGGESTED QTY:22
L=35mm
VIEW DETAILS
|
|
|
5. |
Flange nut (990940)
Price: $0.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
6. |
Bracket (965544)
Price: $6.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
7. |
Hexagon screw (970891)
Price: $7.20SUGGESTED QTY:1
L=130mm
VIEW DETAILS
|
|
|
8. |
Shut-off cock (966871)
Price: $85.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
9. |
Seawater pipe (888851)
Price: $677.00SUGGESTED QTY:1
Sea water pump-...
VIEW DETAILS
|
|
|
10. |
Hose (24007729)
Price: $127.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
11. |
Hose clamp (961671)
Price: $4.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
12. |
Intercooler (3838415)
Price: $8,510.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
12. |
After Cooler, Components (6427)
SUGGESTED QTY:1
D7A-TA, D7A-B T...
VIEW DETAILS
|
|
|
13. |
Screw (20797917)
Price: $26.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
13. |
Hex. socket screw (959239)
Price: $3.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
14. |
Washer (20405802)
Price: $3.70SUGGESTED QTY:4
VIEW DETAILS
|
|
|
15. |
Hex. socket screw (959223)
Price: $2.10SUGGESTED QTY:2
L=30mm
VIEW DETAILS
|
|
|
16. |
Screw (946440)
Price: $1.00SUGGESTED QTY:1
L=16mm
VIEW DETAILS
|
|
|
17. |
Clamp (888852)
Price: $15.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
Water pipe (888827)
Price: $98.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
19. |
O-ring (20412325)
Price: $5.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
20. |
Thermostat housing (888844)
Price: $646.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
21. |
Gasket (888845)
Price: $16.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
22. |
Washer (976945)
Price: $1.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
23. |
Hexagon screw (967825)
Price: $6.00SUGGESTED QTY:2
L=165mm
VIEW DETAILS
|
|
|
24. |
Hexagon screw (888847)
Price: $17.10SUGGESTED QTY:2
L=115mm
VIEW DETAILS
|
|
|
25. |
Collar (3837438)
Price: $51.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
26. |
Hose clamp (994564)
Price: $2.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
27. |
Hose clamp (943478)
Price: $7.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
28. |
Thermostat (20450736)
Price: $115.00SUGGESTED QTY:1
83°C
VIEW DETAILS
|
|
|
29. |
Sealing ring (20459961)
Price: $6.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
30. |
Flange screw (984738)
Price: $1.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
31. |
Water outlet pipe (888849)
Price: $347.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
32. |
Water outlet pipe (888817)
Price: $287.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
33. |
Gasket (20412341)
Price: $7.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
34. |
Water inlet pipe (888818)
Price: $299.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
35. |
Gasket (888820)
Price: $6.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
36. |
Flange screw (996778)
Price: $8.40SUGGESTED QTY:1
L=95mm
VIEW DETAILS
|
|
|
37. |
Screw (996812)
Price: $8.80SUGGESTED QTY:10
L=80mm
VIEW DETAILS
|
|
|
38. |
Flange screw (994386)
Price: $10.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
39. |
Hose (888841)
Price: $67.20SUGGESTED QTY:1
L=205mm
VIEW DETAILS
|
|
|
40. |
Hose clamp (994565)
Price: $4.80SUGGESTED QTY:2
VIEW DETAILS
|
|
|
41. |
Charge air pipe (888771)
Price: $387.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
42. |
Intake gasket (888775)
Price: $21.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
43. |
Flange screw (984735)
Price: $1.30SUGGESTED QTY:2
L=25mm
VIEW DETAILS
|
|
|
44. |
Plug (479956)
Price: $10.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
45. |
Spring washer (941908)
Price: $0.40SUGGESTED QTY:1
VIEW DETAILS
|
47 Items
