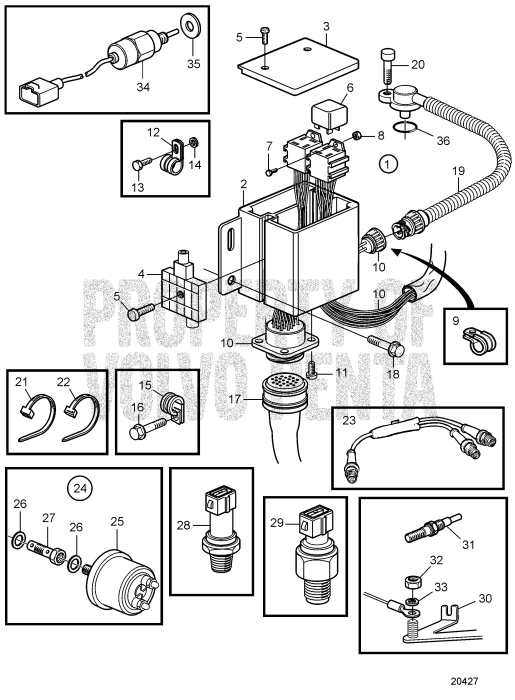

Electrical System


2.	Electrical distribut (861648) Price: $80.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Cardboard tube (861681) Price: $12.30 SUGGESTED QTY:1 VIEW DETAILS
4.	Fuse box (873566) Price: $89.20 SUGGESTED QTY:1 VIEW DETAILS
5.	Cross recessed screw (955142) Price: $0.30 SUGGESTED QTY:1 VIEW DETAILS
6.	Relay (21400091) Price: $30.80 SUGGESTED QTY:1 VIEW DETAILS
7.	Flange screw (948663) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 M5x10mm VIEW DETAILS
8.	Hexagon nut (955780) Price: $1.00 SUGGESTED QTY:4 VIEW DETAILS
9.	Clamp (952627) Price: $1.80 SUGGESTED QTY:1 VIEW DETAILS
10.	Wiring harness (881664) Price: $1,410.00 SUGGESTED QTY:1 VIEW DETAILS
11.	Cross recessed screw (955119) Price: $0.80 SUGGESTED QTY:4 VIEW DETAILS
12.	Clamp (952627) Price: $1.80 SUGGESTED QTY:1 VIEW DETAILS
13.	6 point socket screw (969456) Price: $1.40 SUGGESTED QTY:1 VIEW DETAILS
14.	Washer (960137) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
15.	Clamp (947191) Price: $2.50 SUGGESTED QTY:1 VIEW DETAILS
16.	Flange screw (947107) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
17.	Extension cable'verl (846648) Price: $205.00 SUGGESTED QTY:1 L=3000mm VIEW DETAILS
17.	Extension cable'verl (846649) Price: $205.00 SUGGESTED QTY:1 L=5000mm VIEW DETAILS
17.	Extension cable'verl (846650) Price: $268.00 SUGGESTED QTY:1 L=7000mm VIEW DETAILS
17.	Extension cable'verl (873838) Price: $400.00 SUGGESTED QTY:1 L=9000mm VIEW DETAILS
17.	Extension cable'verl (873839) Price: $474.00 SUGGESTED QTY:1 L=11000mm VIEW DETAILS
18.	Screw (3580269) Price: $1.10 SUGGESTED QTY:2 VIEW DETAILS
19.	Sensor (3944124) Price: $170.00 SUGGESTED QTY:1 VIEW DETAILS
20.	Hex. socket screw (963684) Price: $2.00 SUGGESTED QTY:1 VIEW DETAILS
21.	Cable tie (948616) Price: $1.80 SUGGESTED QTY:1 VIEW DETAILS
22.	Cable tie (948211) Price: $2.90 SUGGESTED QTY:1 VIEW DETAILS
23.	Distributing contact (1140598) Price: $420.00 SUGGESTED QTY:1 For double stee... VIEW DETAILS
24.	Sensor kit (1598753) Price: $8.20 SUGGESTED QTY:1 24V VIEW DETAILS
25.	Oil pressure sensor (3587359) Price: $341.00 SUGGESTED QTY:1 VIEW DETAILS
26.	Gasket (947620) Price: $0.70 SUGGESTED QTY:4 VIEW DETAILS
27.	Hollow screw (3583575) Price: $117.00 SUGGESTED QTY:1 VIEW DETAILS
28.	Thermo monitor (3808797) Price: $106.00 SUGGESTED QTY:1 VIEW DETAILS
29.	Temperature sensor (3583569) Price: $101.00 SUGGESTED QTY:1 VIEW DETAILS
30.	Current bar (3583571) Price: $26.50 SUGGESTED QTY:1 VIEW DETAILS
31.	Glow plug (3583025) Price: $78.40 SUGGESTED QTY:1 VIEW DETAILS
34.	Stop solenoid (3584127) Price: $408.00 SUGGESTED QTY:1 VIEW DETAILS
35.	Sealing ring (21424327) Price: $23.10 SUGGESTED QTY:1 Replaced by 214... VIEW DETAILS
36.	O-ring (974673) Price: $9.40 SUGGESTED QTY:1 VIEW DETAILS

37 Items

Grouped product items
Product Name	Qty
Electrical distribut $80.00
Cardboard tube $12.30
Fuse box $89.20
Cross recessed screw $0.30
Relay $30.80
Flange screw $0.00
Hexagon nut $1.00
Wiring harness $1,410.00
Cross recessed screw $0.80
Clamp $1.80
6 point socket screw $1.40
Washer $1.00
Clamp $2.50
Flange screw $1.00
Extension cable'verl $205.00
Extension cable'verl $400.00
Extension cable'verl $205.00
Extension cable'verl $474.00
Extension cable'verl $268.00
Screw $1.10
Sensor $170.00
Hex. socket screw $2.00
Cable tie $1.80
Cable tie $2.90
Distributing contact $420.00
Sensor kit $8.20
Oil pressure sensor $341.00
Gasket $0.70
Hollow screw $117.00
Thermo monitor $106.00
Temperature sensor $101.00
Current bar $26.50
Glow plug $78.40
Stop solenoid $408.00
Sealing ring $23.10
O-ring $9.40
