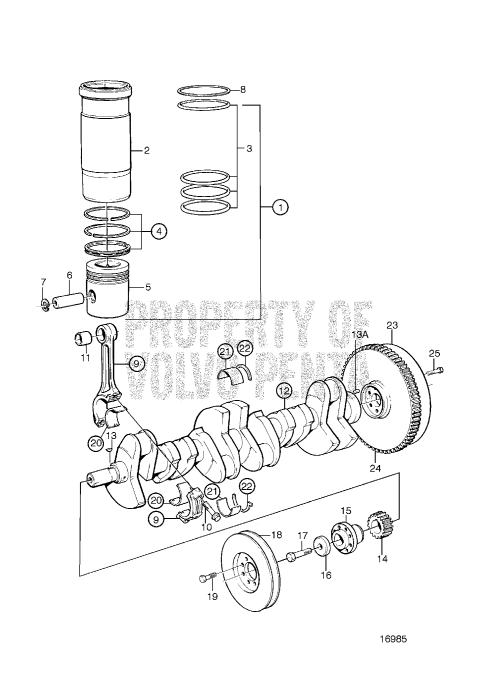

Crank Mechanism: TAMD63L-B
|
1. |
Cylinder liner kit (876723)
Price: $1,421.00SUGGESTED QTY:6
See group 99
VIEW DETAILS
|
|
|
3. |
Sealing ring kit (271161)
Price: $84.90SUGGESTED QTY:6
VIEW DETAILS
|
|
|
4. |
Piston ring kit (276310)
Price: $144.00SUGGESTED QTY:6
VIEW DETAILS
|
|
|
6. |
Piston pin (3978023)
Price: $92.60SUGGESTED QTY:6
Std (420988)
VIEW DETAILS
|
|
|
7. |
Snap ring (914523)
Price: $2.80SUGGESTED QTY:12
VIEW DETAILS
|
|
|
8. |
Adjusting washer (465394)
Price: $16.50SUGGESTED QTY:1
Shims to adjust...
VIEW DETAILS
|
|
|
8. |
Adjusting washer (465395)
Price: $16.50SUGGESTED QTY:1
Shims to adjust...
VIEW DETAILS
|
|
|
8. |
Adjusting washer (465396)
Price: $16.60SUGGESTED QTY:1
Shims to adjust...
VIEW DETAILS
|
|
|
9. |
Connecting rod (3092237)
Price: $1,908.00SUGGESTED QTY:6
Repl by 8192120...
VIEW DETAILS
|
|
|
9. |
Connecting rod (3092237)
Price: $1,908.00SUGGESTED QTY:6
VIEW DETAILS
|
|
|
9. |
Connecting rod (3092237)
Price: $1,908.00SUGGESTED QTY:6
VIEW DETAILS
|
|
|
10. |
Flange screw (465815)
Price: $26.30SUGGESTED QTY:12
VIEW DETAILS
|
|
|
11. |
Bushing (8192121)
Price: $37.20SUGGESTED QTY:6
For 8192120, 30...
VIEW DETAILS
|
|
|
11. |
Bearing (465816)
Price: $70.70SUGGESTED QTY:6
For 465812
VIEW DETAILS
|
|
|
12. |
Crankshaft, 6-hole (24424610)
Price: $12,200.00SUGGESTED QTY:1
SN-XXXXXXXXXX/1...
VIEW DETAILS
|
|
|
12. |
Crankshaft, 9-hole (24427376)
Price: $9,303.00SUGGESTED QTY:1
SNXXXXXXXXXX/10...
VIEW DETAILS
|
|
|
12. |
Crankshaft, 9-hole (24427376)
Price: $9,303.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13. |
Woodruff key (422253)
Price: $22.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13A. |
Pin (950677)
Price: $8.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
14. |
Gear (471528)
Price: $484.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
15. |
Hub (465779)
Price: $679.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
16. |
Washer (420124)
Price: $34.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Flange screw (1543035)
Price: $14.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
Vibration damper (888019)
Price: $3,381.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
19. |
Flange screw (421796)
Price: $11.20SUGGESTED QTY:8
VIEW DETAILS
|
|
|
20. |
Big-end bearing kit (270143)
Price: $82.60SUGGESTED QTY:6
U.S=1,01mm
VIEW DETAILS
|
|
|
20. |
Big end bearing kit (270144)
Price: $99,999.00SUGGESTED QTY:6
U.S=1,27mm, Obs...
VIEW DETAILS
|
|
|
20. |
Big-end bearing kit (270139)
Price: $43.00SUGGESTED QTY:6
Std D
VIEW DETAILS
|
|
|
20. |
Big-end bearing kit (270140)
Price: $43.00SUGGESTED QTY:6
U.S=0,25mm
VIEW DETAILS
|
|
|
20. |
Big-end bearing kit (270141)
Price: $43.00SUGGESTED QTY:6
U.S=0,51mm
VIEW DETAILS
|
|
|
20. |
Big-end bearing kit (270142)
Price: $99,999.00SUGGESTED QTY:6
U.S=0,76mm, Obs...
VIEW DETAILS
|
|
|
21. |
Main bearing kit (271230)
Price: $59.90SUGGESTED QTY:7
Std D
VIEW DETAILS
|
|
|
21. |
Main bearing kit (271231)
Price: $59.90SUGGESTED QTY:7
U.S=0,25mm
VIEW DETAILS
|
|
|
21. |
Main bearing kit (271232)
Price: $59.90SUGGESTED QTY:7
U.S=0,51mm
VIEW DETAILS
|
|
|
21. |
Main bearing kit (271233)
Price: $99,999.00SUGGESTED QTY:7
U.S=0,76mm, Obs...
VIEW DETAILS
|
|
|
21. |
Main bearing kit (271234)
Price: $59.90SUGGESTED QTY:7
U.S=1,01mm
VIEW DETAILS
|
|
|
21. |
Main bearing kit (271235)
Price: $30.30SUGGESTED QTY:7
U.S=1,27mm
VIEW DETAILS
|
|
|
22. |
Thrust washer kit (276751)
Price: $68.80SUGGESTED QTY:1
Std D
VIEW DETAILS
|
|
|
22. |
Thrust washer kit (276752)
Price: $30.80SUGGESTED QTY:1
O.S=0,10mm
VIEW DETAILS
|
|
|
22. |
Thrust washer kit (276753)
Price: $56.50SUGGESTED QTY:1
O.S=0,20mm
VIEW DETAILS
|
|
|
22. |
Thrust washer kit (276754)
Price: $65.60SUGGESTED QTY:1
O.S=0,30mm
VIEW DETAILS
|
|
|
23. |
Flywheel, 6-hole (848350)
Price: $99,999.00SUGGESTED QTY:1
SN-XXXXXXXXXX/1...
VIEW DETAILS
|
|
|
23. |
Flywheel, 9-hole (3827177)
Price: $4,450.00SUGGESTED QTY:1
With hole for a...
VIEW DETAILS
|
|
|
24. |
Ring gear (420314)
Price: $675.00SUGGESTED QTY:1
(420067)
VIEW DETAILS
|
|
|
25. |
Flange screw (465826)
Price: $28.30SUGGESTED QTY:6
For 848350
VIEW DETAILS
|
45 Items
