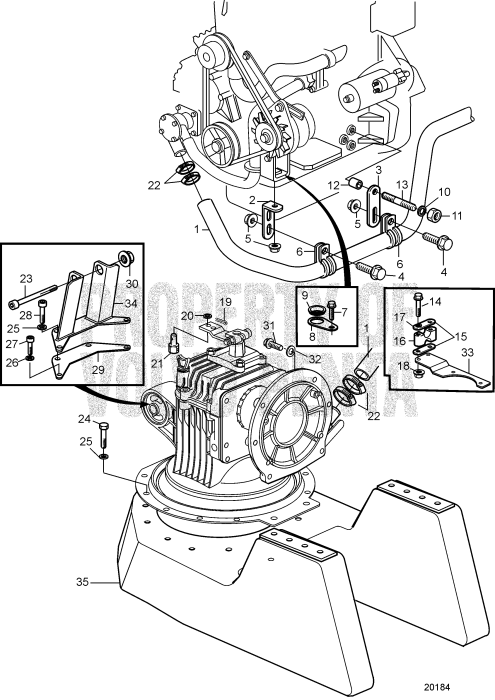

Connecting Components for S-drive MS25S/SR
|
1. |
Hose (3583076)
Price: $270.00SUGGESTED QTY:1
For S-drive MS2...
VIEW DETAILS
|
|
|
2. |
Bracket (965555)
Price: $12.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
3. |
Bracket (965535)
Price: $3.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
Flange screw (946440)
Price: $1.00SUGGESTED QTY:2
VIEW DETAILS
|
|
|
5. |
Flange nut (990940)
Price: $0.90SUGGESTED QTY:2
VIEW DETAILS
|
|
|
6. |
Clamp (949850)
Price: $17.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
7. |
Flange screw (946671)
Price: $1.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
8. |
Stay (3580250)
Price: $269.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
9. |
Grommet (3580251)
Price: $15.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
10. |
Spacer sleeve (845988)
Price: $54.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
11. |
Nut (3583789)
Price: $8.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
12. |
Adapter (3582401)
Price: $69.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13. |
Stud (924083)
Price: $6.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
14. |
6 point socket screw (969439)
Price: $2.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
15. |
Washer (872076)
Price: $4.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
16. |
Retainer (872074)
Price: $6.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Washer (940090)
Price: $0.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
18. |
Flange lock nut (990948)
Price: $1.00SUGGESTED QTY:1
(946577)
VIEW DETAILS
|
|
|
19. |
Split pin (17276)
Price: $3.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
20. |
Spring washer (941906)
Price: $0.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
21. |
Cube (22336734)
Price: $5.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
22. |
Hose clamp (961669)
Price: $5.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
23. |
Hex. socket screw (959268)
Price: $0.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
24. |
Hexagon screw (946730)
Price: $6.30SUGGESTED QTY:8
VIEW DETAILS
|
|
|
25. |
Washer (941670)
Price: $0.40SUGGESTED QTY:10
VIEW DETAILS
|
|
|
26. |
Washer (853095)
Price: $6.40SUGGESTED QTY:2
VIEW DETAILS
|
|
|
27. |
Hex. socket screw (959240)
Price: $3.20SUGGESTED QTY:2
VIEW DETAILS
|
|
|
28. |
Hexagon screw (963568)
Price: $5.50SUGGESTED QTY:2
VIEW DETAILS
|
|
|
29. |
Spacer washer (3581556)
Price: $139.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
30. |
Lock nut (966172)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
31. |
Hexagon screw (940160)
Price: $3.80SUGGESTED QTY:4
VIEW DETAILS
|
|
|
32. |
Washer (955896)
Price: $1.00SUGGESTED QTY:6
VIEW DETAILS
|
|
|
33. |
Bracket (3852649)
Price: $99,999.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
34. |
Bracket (3841849)
Price: $258.00SUGGESTED QTY:1
Replaced by 384...
VIEW DETAILS
|
|
|
34. |
Bracket (3841849)
Price: $258.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
35. |
Engine bed (3842285)
Price: $2,692.00SUGGESTED QTY:1
VIEW DETAILS
|
36 Items
