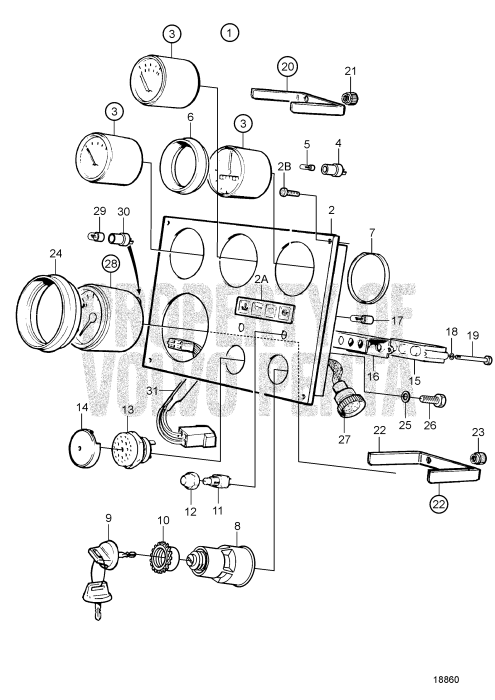

Instrument Panel 12V
|
1. |
Instrument panel (23577077)
Price: $1,579.00SUGGESTED QTY:1
Repl by 3587074...
VIEW DETAILS
|
|
|
1. |
Instrument panel (23577077)
Price: $1,579.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2. |
Instrument panel (860182)
Price: $131.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2A. |
Symbol strip (858645)
Price: $20.90SUGGESTED QTY:1
VIEW DETAILS
|
|
|
2B. |
Screw (828647)
Price: $3.80SUGGESTED QTY:4
Not included in...
VIEW DETAILS
|
|
|
3. |
Thermometer (873195)
Price: $334.00SUGGESTED QTY:1
40-120°C
VIEW DETAILS
|
|
|
3. |
Oil pressure gauge (873197)
Price: $345.00SUGGESTED QTY:1
10x100kPa
VIEW DETAILS
|
|
|
3. |
Voltmeter (873199)
Price: $290.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
4. |
Lamp socket (863945)
Price: $15.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
5. |
Bulb (863946)
Price: $9.30SUGGESTED QTY:1
12V, 1,2W red
VIEW DETAILS
|
|
|
6. |
Front ring (858643)
Price: $17.50SUGGESTED QTY:1
Alt, D=52mm
VIEW DETAILS
|
|
|
7. |
Guide ring (828803)
Price: $15.10SUGGESTED QTY:3
VIEW DETAILS
|
|
|
8. |
Starter switch (3587072)
Price: $353.00SUGGESTED QTY:1
Repl by 3587072...
VIEW DETAILS
|
|
|
8. |
Starter switch (3587072)
Price: $353.00SUGGESTED QTY:1
(864277)
VIEW DETAILS
|
|
|
9. |
Key (859953)
Price: $118.00SUGGESTED QTY:2
State key code ...
VIEW DETAILS
|
|
|
10. |
Plastic nut (859955)
Price: $22.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
11. |
Toggle switch (828584)
Price: $78.40SUGGESTED QTY:1
Alarm test
VIEW DETAILS
|
|
|
11. |
Toggle switch (828585)
Price: $76.30SUGGESTED QTY:1
Instr. light
VIEW DETAILS
|
|
|
12. |
Nut (828586)
Price: $27.60SUGGESTED QTY:2
VIEW DETAILS
|
|
|
13. |
Buzzer (828587)
Price: $254.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
14. |
Protecting casing (858795)
Price: $8.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
15. |
Electronic unit (22354203)
Price: $666.00SUGGESTED QTY:1
(873209)
VIEW DETAILS
|
|
|
16. |
Reflector (828784)
Price: $49.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
17. |
Bulb (19923)
Price: $6.00SUGGESTED QTY:1
12V
VIEW DETAILS
|
|
|
18. |
Spring washer (941904)
Price: $0.10SUGGESTED QTY:1
W
VIEW DETAILS
|
|
|
19. |
Cross recessed screw (941615)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
20. |
Brace kit (873207)
Price: $21.10SUGGESTED QTY:1
VIEW DETAILS
|
|
|
22. |
Brace kit (873208)
Price: $46.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
23. |
Nut (3852064)
Price: $99,999.00SUGGESTED QTY:2
Obsolete part
VIEW DETAILS
|
|
|
24. |
Ring (873517)
Price: $18.40SUGGESTED QTY:1
Alt., D=72mm
VIEW DETAILS
|
|
|
25. |
Spring washer (941904)
Price: $0.10SUGGESTED QTY:1
W
VIEW DETAILS
|
|
|
26. |
Cross recessed screw (949947)
Price: $0.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
27. |
Cable trunk (828646)
Price: $759.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
28. |
Tachometer kit (873998)
Price: $861.00SUGGESTED QTY:1
3400 rpm
VIEW DETAILS
|
|
|
29. |
Bulb (863946)
Price: $9.30SUGGESTED QTY:1
12V, 1,2W red
VIEW DETAILS
|
|
|
29. |
Bulb (863947)
Price: $16.70SUGGESTED QTY:1
24V, 1,2W red
VIEW DETAILS
|
|
|
30. |
Lamp socket (863945)
Price: $15.30SUGGESTED QTY:1
VIEW DETAILS
|
|
|
31. |
Diode cable (873695)
Price: $105.00SUGGESTED QTY:1
VIEW DETAILS
|
38 Items
