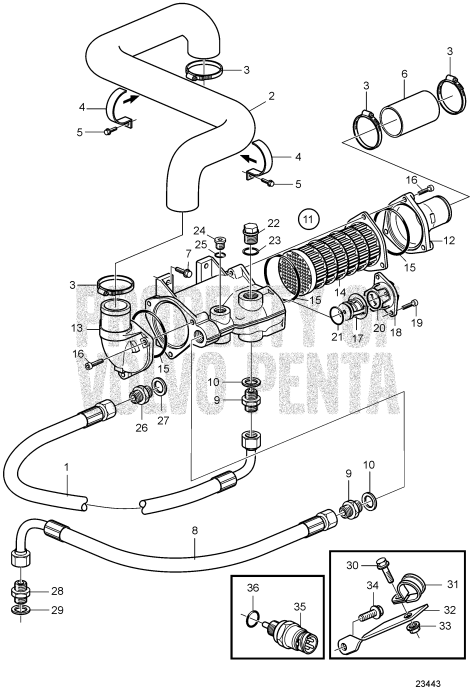

Oil Cooler for ZF280AE, ZF280IVE, ZF286IVE, ZF305AE


1.	Hose (3588029) Price: $139.00 SUGGESTED QTY:1 L=950mm VIEW DETAILS
2.	Hose (3817425) Price: $300.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Hose clamp (961672) Price: $5.30 SUGGESTED QTY:4 VIEW DETAILS
4.	Clamp (948560) Price: $6.40 SUGGESTED QTY:2 VIEW DETAILS
5.	Flange screw (967949) This product has been discontinued Price: $0.00 SUGGESTED QTY:2 VIEW DETAILS
6.	Rubber hose (943371) Price: $169.00 SUGGESTED QTY:1 VIEW DETAILS
7.	Flange screw (984735) Price: $1.30 SUGGESTED QTY:2 VIEW DETAILS
8.	Hose (3588801) Price: $126.00 SUGGESTED QTY:1 L=570mm VIEW DETAILS
9.	Nipple (984670) Price: $82.60 SUGGESTED QTY:4 VIEW DETAILS
10.	Gasket (977937) Price: $7.70 SUGGESTED QTY:2 VIEW DETAILS
11.	Oil cooler (3808061) Price: $3,456.00 SUGGESTED QTY:1 VIEW DETAILS
12.	Cardboard tube (3817251) Price: $1,224.00 SUGGESTED QTY:1 VIEW DETAILS
13.	Cover (3817250) Price: $579.00 SUGGESTED QTY:1 VIEW DETAILS
14.	Insert (3817249) Price: $1,749.00 SUGGESTED QTY:1 VIEW DETAILS
15.	O-ring (3581070) Price: $27.60 SUGGESTED QTY:3 VIEW DETAILS
16.	Screw (3838337) Price: $6.80 SUGGESTED QTY:8 VIEW DETAILS
17.	Thermostat (3817248) Price: $169.00 SUGGESTED QTY:1 VIEW DETAILS
18.	Cover (888622) Price: $175.00 SUGGESTED QTY:1 (3817247) VIEW DETAILS
19.	Screw (3855736) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:2 Obsolete part VIEW DETAILS
20.	O-ring (3583830) Price: $11.60 SUGGESTED QTY:1 VIEW DETAILS
21.	O-ring (3586514) Price: $20.10 SUGGESTED QTY:1 VIEW DETAILS
22.	Plug (3817245) Price: $107.00 SUGGESTED QTY:1 VIEW DETAILS
23.	Gasket (3817240) Price: $23.10 SUGGESTED QTY:1 VIEW DETAILS
24.	Plug (968610) Price: $5.30 SUGGESTED QTY:1 VIEW DETAILS
25.	O-ring (968559) Price: $12.50 SUGGESTED QTY:2 VIEW DETAILS
26.	Nipple (984667) Price: $17.90 SUGGESTED QTY:1 VIEW DETAILS
26.	Nipple (943986) Price: $30.80 SUGGESTED QTY:1 For ZF305AE VIEW DETAILS
27.	Gasket (11996) Price: $2.20 SUGGESTED QTY:1 VIEW DETAILS
27.	Gasket (943908) Price: $12.70 SUGGESTED QTY:1 For ZF305AE VIEW DETAILS
28.	Nipple (984669) Price: $14.40 SUGGESTED QTY:1 VIEW DETAILS
29.	Gasket (977937) Price: $7.70 SUGGESTED QTY:2 VIEW DETAILS
30.	Flange screw (984725) Price: $0.70 SUGGESTED QTY:2 VIEW DETAILS
31.	Clamp (952632) Price: $6.60 SUGGESTED QTY:1 VIEW DETAILS
32.	Bracket (354842) Price: $14.90 SUGGESTED QTY:1 VIEW DETAILS
33.	Flange lock nut (990949) Price: $1.60 SUGGESTED QTY:1 VIEW DETAILS
34.	Screw (3857693) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
35.	Sensor (874313) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 VIEW DETAILS
36.	Gasket (976931) Price: $6.80 SUGGESTED QTY:1 VIEW DETAILS

38 Items
