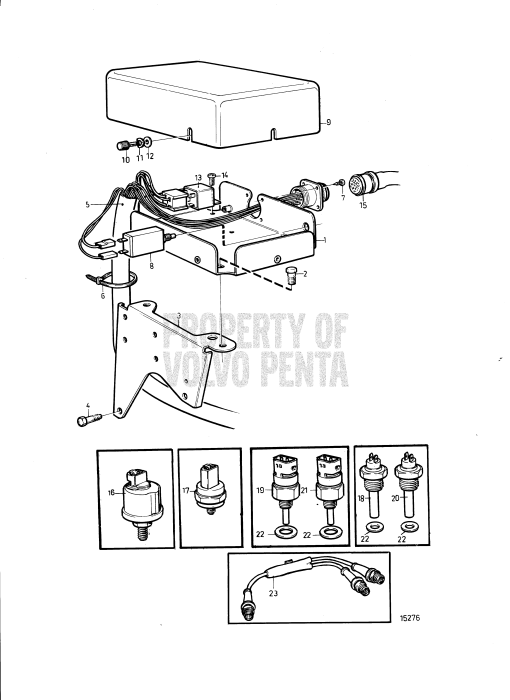

Electrical System


1.	Bracket (860417) Price: $348.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Flange screw (984724) Price: $0.90 SUGGESTED QTY:2 VIEW DETAILS
3.	Bracket (3580668) Price: $85.90 SUGGESTED QTY:1 VIEW DETAILS
4.	Flange screw (946470) Price: $1.70 SUGGESTED QTY:8 L=35mm VIEW DETAILS
4.	Flange screw (948217) Price: $1.00 SUGGESTED QTY:6 VIEW DETAILS
5.	Wiring harness (873744) Price: $498.00 SUGGESTED QTY:1 12V, (873053) VIEW DETAILS
5.	Wiring harness (873745) Price: $1,166.00 SUGGESTED QTY:1 24V, (873054) VIEW DETAILS
6.	Cable tie (948210) Price: $1.20 SUGGESTED QTY:1 VIEW DETAILS
7.	Cross recessed screw (955119) Price: $0.80 SUGGESTED QTY:4 VIEW DETAILS
8.	Fuse (966689) Price: $128.00 SUGGESTED QTY:1 12V VIEW DETAILS
9.	Cover (860779) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
10.	Lock screw (846736) Price: $13.40 SUGGESTED QTY:3 VIEW DETAILS
11.	Spring washer (941904) Price: $0.10 SUGGESTED QTY:3 VIEW DETAILS
12.	Washer (960137) Price: $1.00 SUGGESTED QTY:3 VIEW DETAILS
13.	Relay (873611) Price: $50.90 SUGGESTED QTY:1 (837878) 24V, 2... VIEW DETAILS
13.	Relay (22637542) Price: $76.30 SUGGESTED QTY:1 12V, 50A VIEW DETAILS
13.	Relay (838955) Price: $188.00 SUGGESTED QTY:1 24V, 50A VIEW DETAILS
14.	Cross recessed screw (968476) Price: $0.30 SUGGESTED QTY:1 VIEW DETAILS
15.	Extension cable'verl (846648) Price: $205.00 SUGGESTED QTY:1 L=3.0m VIEW DETAILS
15.	Extension cable'verl (846649) Price: $205.00 SUGGESTED QTY:1 L=5.0m VIEW DETAILS
15.	Extension cable'verl (846650) Price: $268.00 SUGGESTED QTY:1 L=7.0m VIEW DETAILS
16.	Sensor, oil-engine (866835) Price: $253.00 SUGGESTED QTY:1 0-10BAR VIEW DETAILS
16.	Sensor, oil-engine (866836) Price: $183.00 SUGGESTED QTY:1 For double inst... VIEW DETAILS
17.	Pressure monitor, coolant water temp. (863169) Price: $112.00 SUGGESTED QTY:1 0,7bar VIEW DETAILS
18.	Thermo monitor, coolant water temp. (873066) Price: $148.00 SUGGESTED QTY:1 Alt, 12V 97°C VIEW DETAILS
19.	Thermo monitor, coolant water temp. (862250) Price: $361.00 SUGGESTED QTY:1 Alt, 24V 97°C VIEW DETAILS
20.	Temperature sensor, coolant water temp. (827151) Price: $117.00 SUGGESTED QTY:1 40-120°C VIEW DETAILS
20.	Temperature sensor, coolant water temp. (840074) Price: $90.10 SUGGESTED QTY:1 For double inst... VIEW DETAILS
20.	Temperature sensor, coolant water temp. (843325) Price: $195.00 SUGGESTED QTY:1 24V 120°C late... VIEW DETAILS
21.	Temperature sensor, coolant water temp. (862154) Price: $141.00 SUGGESTED QTY:1 24V 120°C VIEW DETAILS
22.	Gasket (957181) Price: $9.90 SUGGESTED QTY:2 Early type VIEW DETAILS
23.	Distributing contact (1140598) Price: $420.00 SUGGESTED QTY:1 For double stee... VIEW DETAILS

32 Items

Grouped product items
Product Name	Qty
Bracket $348.00
Flange screw $0.90
Bracket $85.90
Flange screw $1.70
Flange screw $1.00
Wiring harness $498.00
Wiring harness $1,166.00
Cable tie $1.20
Cross recessed screw $0.80
Fuse $128.00
Cover $99,999.00
Lock screw $13.40
Spring washer $0.10
Washer $1.00
Relay $76.30
Relay $188.00
Relay $50.90
Cross recessed screw $0.30
Extension cable'verl $268.00
Extension cable'verl $205.00
Extension cable'verl $205.00
Sensor, oil-engine $183.00
Sensor, oil-engine $253.00
Pressure monitor, coolant water temp. $112.00
Thermo monitor, coolant water temp. $148.00
Thermo monitor, coolant water temp. $361.00
Temperature sensor, coolant water temp. $195.00
Temperature sensor, coolant water temp. $117.00
Temperature sensor, coolant water temp. $90.10
Temperature sensor, coolant water temp. $141.00
Gasket $9.90
Distributing contact $420.00
