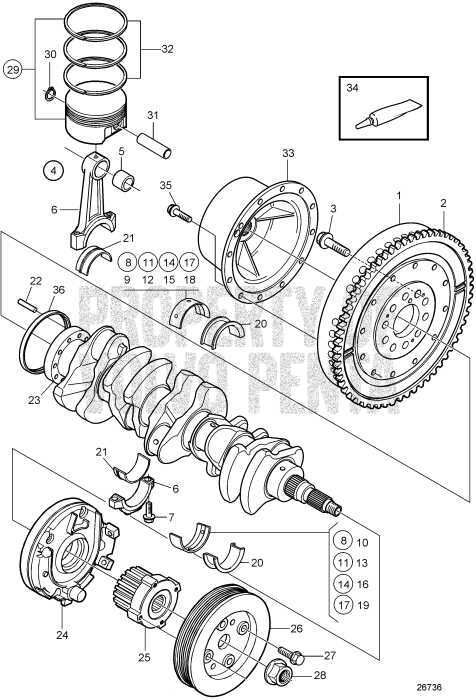

Crank Mechanism


1.	Flywheel (21517500) Price: $2,056.00 SUGGESTED QTY:1 VIEW DETAILS
2.	Gear ring (3818641) Price: $440.00 SUGGESTED QTY:1 VIEW DETAILS
3.	Screw (9454743) Price: $4.50 SUGGESTED QTY:10 VIEW DETAILS
4.	Connecting rod (8631505) Price: $126.00 SUGGESTED QTY:5 VIEW DETAILS
6.	Connecting rod (30777189) Price: $112.00 SUGGESTED QTY:5 VIEW DETAILS
7.	Screw (9497858) Price: $5.60 SUGGESTED QTY:2 VIEW DETAILS
8.	Main bearing kit, complete (274482) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part, ... VIEW DETAILS
8.	Main bearing (31251577) Price: $68.50 SUGGESTED QTY:5 Without flange,... VIEW DETAILS
8.	Main bearing (31330321) Price: $56.40 SUGGESTED QTY:5 Without flange,... VIEW DETAILS
9.	Main bearing (31330321) Price: $56.40 SUGGESTED QTY:5 Red, Without fl... VIEW DETAILS
10.	Main bearing (30777951) Price: $39.20 SUGGESTED QTY:5 Red, Without fl... VIEW DETAILS
11.	Main bearing (31251578) Price: $65.10 SUGGESTED QTY:5 Without flange,... VIEW DETAILS
11.	Main bearing (31330322) Price: $34.80 SUGGESTED QTY:5 Without flange,... VIEW DETAILS
12.	Main bearing (31330322) Price: $34.80 SUGGESTED QTY:5 Yellow, Without... VIEW DETAILS
13.	Main bearing (30777952) Price: $39.20 SUGGESTED QTY:5 Yellow, Without... VIEW DETAILS
14.	Main bearing (31330323) Price: $15.40 SUGGESTED QTY:5 Without flange,... VIEW DETAILS
14.	Main bearing (31330323) Price: $15.40 SUGGESTED QTY:5 Without flange,... VIEW DETAILS
15.	Main bearing (31330323) Price: $15.40 SUGGESTED QTY:5 Blue, Without f... VIEW DETAILS
16.	Main bearing (30777953) Price: $39.20 SUGGESTED QTY:5 Blue, Without f... VIEW DETAILS
17.	Main bearing (31330324) Price: $34.80 SUGGESTED QTY:5 Without flange ... VIEW DETAILS
17.	Main bearing (31330324) Price: $34.80 SUGGESTED QTY:5 Without flange ... VIEW DETAILS
18.	Main bearing (31330324) Price: $34.80 SUGGESTED QTY:5 Green, Without ... VIEW DETAILS
19.	Main bearing (30777954) Price: $39.20 SUGGESTED QTY:5 Green, Without ... VIEW DETAILS
20.	Thrust bearing (31216061) Price: $36.80 SUGGESTED QTY:1 With flange, re... VIEW DETAILS
20.	Thrust bearing (31216062) Price: $39.10 SUGGESTED QTY:1 With flange, ye... VIEW DETAILS
20.	Thrust bearing (31216063) Price: $33.80 SUGGESTED QTY:1 With flange, bl... VIEW DETAILS
21.	Big-end bearing kit (31251996) Price: $51.20 SUGGESTED QTY:5 VIEW DETAILS
22.	Spring pin (973660) Price: $1.00 SUGGESTED QTY:1 VIEW DETAILS
23.	Crankshaft (9465781) Price: $2,936.00 SUGGESTED QTY:1 VIEW DETAILS
24.	Lubricating System (9514) This product has been discontinued Price: $0.00 SUGGESTED QTY:1 D3-110I-B, D3-1... VIEW DETAILS
25.	Pulley (1275366) Price: $355.00 SUGGESTED QTY:1 VIEW DETAILS
26.	Vibration damper (30731865) Price: $614.00 SUGGESTED QTY:1 (30637335) VIEW DETAILS
27.	Nut (3531111) Price: $8.90 SUGGESTED QTY:1 VIEW DETAILS
28.	Flange screw (969445) Price: $1.90 SUGGESTED QTY:4 VIEW DETAILS
29.	Piston kit (30750764) Price: $795.00 SUGGESTED QTY:1 Class C VIEW DETAILS
29.	Piston kit (30750675) Price: $510.00 SUGGESTED QTY:1 Class D VIEW DETAILS
29.	Piston kit (30750765) Price: $1,007.00 SUGGESTED QTY:1 Class D VIEW DETAILS
29.	Piston kit (30750676) Price: $625.00 SUGGESTED QTY:1 Class E VIEW DETAILS
29.	Piston kit (30750766) Price: $507.00 SUGGESTED QTY:1 Class E VIEW DETAILS
29.	Piston kit (30731891) Price: $509.00 SUGGESTED QTY:1 Class C VIEW DETAILS
30.	Lock ring (8631473) Price: $8.80 SUGGESTED QTY:1 VIEW DETAILS
32.	Piston ring kit (30731740) Price: $159.00 SUGGESTED QTY:1 Std VIEW DETAILS
32.	Piston ring kit (30750678) Price: $147.00 SUGGESTED QTY:1 Std, SN20030045... VIEW DETAILS
33.	Flexible coupling (21373176) Price: $1,134.00 SUGGESTED QTY:1 VIEW DETAILS
33.	Flexible coupling (21373176) Price: $1,134.00 SUGGESTED QTY:1 From 160HP VIEW DETAILS
34.	Grease (598034) This product has been discontinued Price: $99,999.00 SUGGESTED QTY:1 Obsolete part VIEW DETAILS
35.	Flange screw (946671) Price: $1.10 SUGGESTED QTY:12 VIEW DETAILS
36.	Sealing ring (9458178) Price: $61.30 SUGGESTED QTY:1 VIEW DETAILS

48 Items

Grouped product items
Product Name	Qty
Flywheel $2,056.00
Gear ring $440.00
Screw $4.50
Connecting rod $126.00
Connecting rod $112.00
Screw $5.60
Main bearing $68.50
Main bearing $56.40
Main bearing kit, complete $99,999.00
Main bearing $56.40
Main bearing $39.20
Main bearing $65.10
Main bearing $34.80
Main bearing $34.80
Main bearing $39.20
Main bearing $15.40
Main bearing $15.40
Main bearing $15.40
Main bearing $39.20
Main bearing $34.80
Main bearing $34.80
Main bearing $34.80
Main bearing $39.20
Thrust bearing $33.80
Thrust bearing $36.80
Thrust bearing $39.10
Big-end bearing kit $51.20
Spring pin $1.00
Crankshaft $2,936.00
Lubricating System Starting at $0.40
Pulley $355.00
Vibration damper $614.00
Nut $8.90
Flange screw $1.90
Piston kit $509.00
Piston kit $795.00
Piston kit $510.00
Piston kit $507.00
Piston kit $625.00
Piston kit $1,007.00
Lock ring $8.80
Piston ring kit $159.00
Piston ring kit $147.00
Flexible coupling $1,134.00
Flexible coupling $1,134.00
Grease $99,999.00
Flange screw $1.10
Sealing ring $61.30
