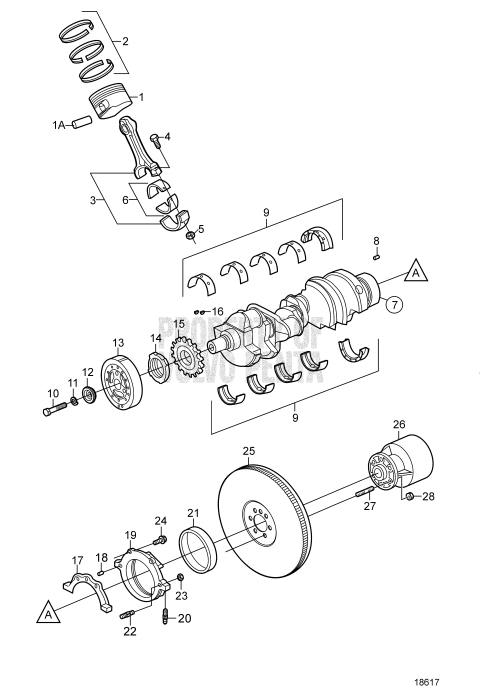

Crankshaft and Related Parts
|
1. |
Piston (21179952)
Price: $353.00SUGGESTED QTY:8
Std
VIEW DETAILS
|
|
|
1. |
Piston (3855743)
Price: $99,999.00SUGGESTED QTY:1
O.S=0.50mm
VIEW DETAILS
|
|
|
2. |
Piston ring (21179959)
Price: $161.00SUGGESTED QTY:8
Std
VIEW DETAILS
|
|
|
2. |
Piston ring (3855741)
Price: $99,999.00SUGGESTED QTY:1
O.S=0.50mm, Obs...
VIEW DETAILS
|
|
|
3. |
Connecting rod (3853957)
Price: $396.00SUGGESTED QTY:8
VIEW DETAILS
|
|
|
4. |
Bolt (3853162)
Price: $68.20SUGGESTED QTY:16
VIEW DETAILS
|
|
|
5. |
Nut (3853413)
Price: $4.90SUGGESTED QTY:16
VIEW DETAILS
|
|
|
6. |
Bearing (3853149)
Price: $97.80SUGGESTED QTY:8
VIEW DETAILS
|
|
|
7. |
Crankshaft (3856923)
Price: $99,999.00SUGGESTED QTY:1
Obsolete part
VIEW DETAILS
|
|
|
8. |
Pin (3855969)
Price: $6.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
9. |
Bearing kit (3862360)
Price: $588.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
10. |
Hexagon screw (949518)
Price: $44.50SUGGESTED QTY:1
VIEW DETAILS
|
|
|
11. |
Spring washer (3852046)
Price: $10.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
12. |
Washer (3858177)
Price: $15.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
13. |
Vibration damper (3862261)
Price: $365.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
14. |
Ring (3862363)
Price: $45.40SUGGESTED QTY:1
VIEW DETAILS
|
|
|
15. |
Sprocket (3852690)
Price: $219.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
16. |
Woodruff key (3852663)
Price: $3.10SUGGESTED QTY:2
VIEW DETAILS
|
|
|
17. |
Gasket (3852656)
Price: $14.80SUGGESTED QTY:1
VIEW DETAILS
|
|
|
18. |
Pin (3856140)
Price: $5.60SUGGESTED QTY:1
VIEW DETAILS
|
|
|
19. |
Housing (3856925)
Price: $187.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
20. |
Stud (3853202)
Price: $9.30SUGGESTED QTY:2
VIEW DETAILS
|
|
|
21. |
Sealing (3856926)
Price: $79.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
22. |
Stud (3853205)
Price: $11.20SUGGESTED QTY:1
VIEW DETAILS
|
|
|
23. |
Nut (3853206)
Price: $6.70SUGGESTED QTY:1
VIEW DETAILS
|
|
|
24. |
Bolt (3853203)
Price: $14.40SUGGESTED QTY:2
L=.875'' (22.2m...
VIEW DETAILS
|
|
|
24. |
Bolt (3853204)
Price: $4.90SUGGESTED QTY:1
L=1.75'' (44.5m...
VIEW DETAILS
|
|
|
25. |
Gear (3855970)
Price: $292.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
25. |
Flywheel (3853958)
Price: $863.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
26. |
Rubber coupling (3858437)
Price: $412.00SUGGESTED QTY:1
VIEW DETAILS
|
|
|
27. |
Stud (3853274)
Price: $22.70SUGGESTED QTY:6
VIEW DETAILS
|
|
|
28. |
Nut (22746891)
Price: $4.30SUGGESTED QTY:6
VIEW DETAILS
|
32 Items
