Understanding Marine Electronic Engine Management

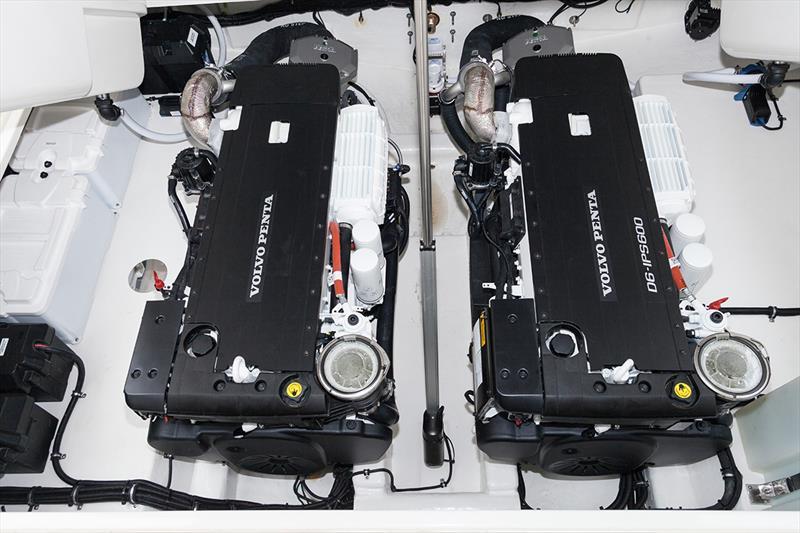

Contemporary Volvo Penta engines utilize integrated electronic control systems that monitor dozens of parameters and adjust engine operation in real-time. These systems consist of:

Core Electronic Components:

  • Engine Control Module (ECM) managing fuel injection, timing, and emissions
  • Marine Diagnostic Interface (MDI) module facilitating communication and diagnostics
  • Electronic throttle control systems replacing mechanical linkages
  • Sensor networks monitoring temperature, pressure, speed, and position
  • Actuators controlling injection, air intake, and emission systems
  • Dashboard displays and instrumentation clusters
  • Wiring harnesses interconnecting all components

The Marine Diagnostic Interface (MDI) module deserves particular attention as it serves as the critical communication gateway between the ECM, diagnostic equipment, and vessel instrumentation. In D1 and D2 series engines, MDI module failures represent one of the most common electronic system problems, often leaving owners frustrated by complete engine shutdown or inability to diagnose other issues.

Root Causes of Electrical and MDI Failures

Corrosion From Saltwater Exposure

The marine environment presents extreme challenges for electronic systems. Saltwater is highly conductive and aggressively corrosive, creating multiple failure mechanisms:

Direct Corrosion Effects:

  • Salt deposits on circuit boards creating conductive paths between traces
  • Corrosion of connector pins reducing electrical contact quality
  • Oxidation of solder joints leading to intermittent connections
  • Deterioration of protective coatings on electronic assemblies
  • Galvanic corrosion between dissimilar metals in connectors

Atmospheric Salt Exposure:

  • Salt spray penetrating inadequately sealed enclosures
  • Hygroscopic salt crystals absorbing moisture from air
  • Condensation accelerated by salt crystal presence
  • Accumulation over time even in "sealed" components

Even freshwater vessels face corrosion challenges, as atmospheric humidity, bilge water, and occasional saltwater exposure during trailering or coastal cruising introduce corrosive elements. Electronic modules in engine compartments experience temperature cycling that promotes condensation, particularly when engines cool after operation.

Vibration Damage to Electronic Components

Marine engines operate in high-vibration environments that stress electronic assemblies designed for more stable applications:

Vibration-Induced Failures:

  • Solder joint fatigue from constant flexing of circuit boards
  • Component lead fractures as parts vibrate against mounting points
  • Connector loosening from vibration working against retention mechanisms
  • Internal component damage in sensors and modules
  • Wire strand breakage at termination points and through flex points

Contributing Factors:

  • Improper mounting of modules without adequate vibration isolation
  • Direct mounting to engine blocks transmitting maximum vibration
  • High-RPM operation increasing vibration frequency and amplitude
  • Worn engine mounts allowing excessive engine movement
  • Resonance frequencies matching electronic component natural frequencies

The cumulative effect of millions of vibration cycles over an engine's service life causes failures that may appear sudden but result from progressive damage.

Poor Battery Connections and Inadequate Voltage

Electronic engine control systems require stable, clean electrical power within specific voltage ranges to function correctly:

Voltage-Related Problems:

  • Low battery voltage during cranking causing ECM resets or shutdowns
  • Voltage spikes from alternator regulation failures damaging sensitive electronics
  • Voltage sag under load causing intermittent control system operation
  • Inadequate charging system capacity for electrical loads
  • Battery degradation reducing available cranking voltage

Connection Issues:

  • Corroded battery terminals increasing resistance and reducing voltage
  • Loose connections creating intermittent power delivery
  • Undersized cables causing excessive voltage drop
  • Poor ground connections preventing proper circuit completion
  • Multiple grounds creating ground loops and voltage differences

Modern electronic engine controls are far less tolerant of voltage variations than older mechanical systems. Voltage outside the specified 12.6-14V operating range can cause erratic operation, false fault codes, or complete system failure.

Water Intrusion Into Electrical Connections

Water infiltration represents one of the most insidious causes of marine electrical failures:

Water Entry Pathways:

  • Inadequately sealed connector backshells allowing water migration along wires
  • Cracked or damaged module housings compromising environmental protection
  • Condensation forming inside supposedly sealed enclosures during temperature cycling
  • Bilge water spray reaching electrical components during rough conditions
  • Rain and spray entering through inadequate engine compartment drainage
  • Hose leaks or cooling system failures directly wetting electrical systems

Water-Induced Damage:

  • Short circuits between adjacent conductors
  • Corrosion accelerated by electrolytic action when voltage is present
  • Connector pin degradation from constant wet/dry cycling
  • Mold and biological growth on circuit boards creating conductive paths
  • Freeze damage in cold climates when water trapped in connectors freezes

Even small amounts of water can cause failures, as marine water contains dissolved salts and minerals that remain after evaporation, creating conductive deposits.

Age-Related Component Degradation

Electronic components have finite service lives affected by operating conditions and environmental exposure:

Component Aging Mechanisms:

  • Capacitor degradation reducing filtering effectiveness and causing voltage irregularities
  • Semiconductor junction degradation from thermal cycling
  • Solder joint fatigue from expansion/contraction cycles
  • Connector contact degradation from insertion/removal cycles and corrosion
  • Circuit board delamination from moisture absorption
  • Rubber and plastic housing deterioration losing sealing effectiveness

Accelerating Factors:

  • High engine compartment temperatures accelerating all degradation mechanisms
  • Humidity promoting corrosion and insulation breakdown
  • UV exposure degrading plastic housings and wire insulation
  • Chemical exposure from fuel, oil, and cleaning products

Components may function normally for years before reaching end-of-life thresholds where failure becomes inevitable. MDI modules in D1 and D2 engines typically show age-related failures after 7-12 years regardless of operating hours, particularly in harsh marine environments.

Improper Installation or Mounting

Installation quality significantly impacts electrical system reliability and service life:

Installation Problems:

  • Mounting modules in locations exposed to excessive heat, vibration, or moisture
  • Inadequate vibration isolation transmitting engine vibration to sensitive electronics
  • Mounting in bilge areas where water accumulation is likely
  • Installing without proper drainage paths for condensation
  • Routing wiring harnesses without adequate support or protection
  • Creating harness routing that traps water or allows chafing
  • Using improper connectors or termination techniques

Environmental Considerations:

  • Mounting too close to heat sources (exhaust components, turbochargers)
  • Insufficient air circulation for cooling
  • Exposure to direct spray or splash
  • Proximity to battery compartments with acid fumes

Proper installation following manufacturer guidelines and marine best practices dramatically extends electrical system service life.

Recognizing Electrical System and MDI Failure Symptoms

Engine Dashboard Malfunctions or Blank Displays

Dashboard and instrument failures often indicate communication problems between the ECM, MDI module, and display systems:

Display Problems:

  • Completely blank screens despite power being present
  • Partial display function with some gauges working, others dead
  • Flickering or intermittent displays
  • Frozen displays showing outdated information
  • Error messages or warning symbols without corresponding engine problems
  • Backlight failures making displays unreadable

Diagnostic Considerations:

  • Distinguish between display unit failures and communication failures
  • Check for power and ground at display units
  • Verify communication bus integrity between modules
  • Consider both MDI and ECM as possible failure points
  • Examine wiring harnesses for damage or corrosion

Dashboard failures may be annoyances that don't affect engine operation, or they may indicate serious problems preventing proper engine monitoring and diagnostics.

Intermittent Starting Problems

Electrical system issues frequently manifest as unpredictable starting difficulties:

Starting Problem Patterns:

  • Engine cranks normally but ECM fails to energize fuel system
  • Starting attempts that succeed on second or third try without intervention
  • Starts that work in certain conditions (temperature, time of day) but not others
  • No-start conditions that resolve after disconnecting/reconnecting battery
  • Starting problems accompanied by dashboard warning lights or error codes

Underlying Causes:

  • MDI module failures preventing ECM communication during startup sequence
  • Voltage drops during cranking causing ECM resets
  • Corroded connections creating intermittent circuits
  • Sensor failures confusing ECM about engine conditions
  • Software glitches in ECM requiring power reset

Intermittent starting problems are particularly frustrating because they often don't occur when diagnostic equipment is connected or when seeking professional assistance.

Engine Shutdown Without Warning

Unexpected engine shutdown represents one of the most serious electrical system failure modes:

Shutdown Scenarios:

  • Complete loss of power at cruising speed without warning
  • Immediate shutdown upon shifting or throttle change
  • Engine runs normally for predictable time period then shuts down
  • Shutdown followed by inability to restart for period of time
  • Progressive power loss followed by shutdown

Potential Causes:

  • MDI module complete failure interrupting communication between ECM and systems
  • ECM power supply problems causing processor resets
  • Critical sensor failures causing ECM to shut down engine protectively
  • Loose battery connections causing complete power interruption
  • Overheating or short circuits in electronic modules

Unexpected shutdowns can create dangerous situations, particularly in challenging navigation conditions, strong currents, or heavy traffic areas. Immediate diagnosis and repair is essential.

Incorrect Gauge Readings

Inaccurate instrumentation can indicate sensor failures, communication problems, or module malfunctions:

Reading Anomalies:

  • Temperature gauges showing impossible readings (too high, too low, or erratic)
  • Tachometers showing incorrect RPM or jumping erratically
  • Fuel level gauges showing full when tank is empty (or vice versa)
  • Oil pressure readings not corresponding to actual conditions
  • Multiple gauges failing simultaneously
  • Readings that freeze at specific values regardless of actual conditions

Diagnostic Approach:

  • Determine if sensors themselves are faulty or if signal transmission is compromised
  • Check for voltage supply to sensors
  • Verify sensor ground connections
  • Inspect wiring between sensors and control modules
  • Consider calibration issues versus actual failures
  • Test sensor outputs directly to isolate problem location

Incorrect readings can mask serious engine problems, making accurate diagnosis essential for both safety and engine protection.

Failure of Electronic Engine Controls

Modern engine control system failures affect multiple operational aspects:

Control System Failures:

  • Electronic throttle not responding to control inputs
  • Engine stuck in "limp mode" with reduced power output
  • Inability to access engine functions through control panel
  • Emission system controls not functioning properly
  • Failure of electronic starting sequence
  • Communication loss preventing diagnostic access

Symptomatic Behaviors:

  • Multiple warning lights illuminated simultaneously
  • Engine running but without normal control responsiveness
  • Safety shutdown systems activating inappropriately
  • Inability to clear fault codes or perform ECM functions

Control system failures may render engines inoperable even when mechanical systems are functioning perfectly, highlighting the critical importance of maintaining electronic components.

Comprehensive Solutions and Repair Approaches

MDI Module Replacement Procedures

When MDI modules fail, replacement is the only solution—these units are not field-repairable:

Replacement Process:

  • Obtain correct MDI module for your specific engine model and year
  • Document existing electrical connections with photos before disconnection
  • Disconnect battery negative terminal before beginning work
  • Remove old MDI module carefully, noting mounting location and orientation
  • Inspect mounting location for corrosion, moisture, or damage
  • Clean and prepare mounting surface
  • Install new MDI module with proper vibration isolation
  • Reconnect all electrical connections ensuring proper seating and locking
  • Apply dielectric grease to all connections before mating
  • Verify all connections are secure and properly routed
  • Reconnect battery and test system operation
  • Clear any stored fault codes that accumulated during failure
  • Perform complete system diagnostic scan to verify proper operation

Important Considerations:

  • Only use genuine Volvo Penta MDI modules—aftermarket units often have reliability issues
  • Consider upgrading mounting location if original location proved problematic
  • Address any underlying issues (corrosion, moisture, vibration) that caused original failure
  • Expect to invest $800-1,500 for genuine modules plus installation
  • Keep old module for core exchange if required

Battery and Charging System Optimization

Ensuring proper electrical power supply is fundamental to electronic system reliability:

Battery System Requirements:

  • Maintain battery voltage between 12.6-14V during all operating conditions
  • Battery capacity must be adequate for cranking and house loads
  • Starting batteries should maintain at least 12.4V at rest when fully charged
  • Voltage during cranking should not drop below 10.5V for electronic systems

Battery Maintenance:

  • Load test batteries annually to verify capacity
  • Replace batteries proactively every 3-5 years in marine service
  • Maintain proper electrolyte levels in serviceable batteries
  • Keep battery terminals clean and tight
  • Apply corrosion inhibitor to terminals and cable connections
  • Ensure battery mounting prevents movement during rough conditions

Charging System Verification:

  • Test alternator output voltage at battery terminals (should be 13.8-14.4V at cruising RPM)
  • Verify charging system can maintain voltage under all electrical loads
  • Check for voltage spikes that might damage electronics
  • Ensure proper alternator belt tension
  • Test voltage regulator function across RPM range

Connection Integrity:

  • Use marine-grade tinned copper cables sized appropriately for current and length
  • Install gold-plated or tinned terminals crimped and soldered for maximum reliability
  • Verify all ground connections are clean, tight, and corrosion-free
  • Consider installing a dedicated ground bus for engine electronics
  • Test voltage drop from battery to starter and from battery to ground (should be under 0.5V)

Proper Component Mounting and Vibration Isolation

Protecting electronic modules from vibration extends service life dramatically:

Mounting Best Practices:

  • Install electronic modules away from direct engine mounting points
  • Use vibration-isolating mounts or grommets between modules and mounting surfaces
  • Avoid mounting directly to engine blocks, cylinder heads, or other high-vibration locations
  • Mount in locations protected from heat sources (exhaust, turbochargers)
  • Ensure mounting locations allow airflow for cooling
  • Orient modules to prevent water accumulation if condensation occurs
  • Provide drainage paths for any moisture that enters mounting areas

Optimal Mounting Locations:

  • Forward bulkheads with vibration isolation
  • Stringers or structural members away from engine
  • Protected areas of engine compartment with good air circulation
  • Locations easily accessible for service and inspection

What to Avoid:

  • Mounting in bilge areas where water accumulation is likely
  • Locations exposed to direct spray or splash
  • Areas without adequate ventilation leading to heat buildup
  • Positions where wiring harnesses experience excessive tension or movement

Electrical Connection Maintenance and Protection

Regular connection maintenance prevents most electrical problems:

Inspection Schedule:

  • Monthly visual inspection of accessible connections
  • Quarterly detailed inspection including removal of connector boots
  • Annual complete system inspection with connection cleaning

Cleaning Procedures:

  • Disconnect battery before cleaning any electrical connections
  • Spray connections with electrical contact cleaner
  • Use brass wire brush on corroded terminals (never steel which can embed particles)
  • Clean connector shells and pins with appropriate tools
  • Rinse with fresh water if salt deposits are present
  • Dry thoroughly with compressed air or lint-free cloth
  • Inspect for damaged pins, corroded terminals, or cracked housings

Protection Methods:

  • Apply dielectric grease to all connections before mating
  • Use marine-grade heat shrink tubing over splices and repairs
  • Install corrosion-preventive spray on exposed connections
  • Ensure connector boots are properly seated and sealing
  • Apply self-amalgamating tape over critical connections for additional moisture protection
  • Consider conformal coating for circuit boards in harsh environments

Connection Types:

  • Replace crimp connections showing any corrosion or looseness
  • Use marine-grade heat-shrink crimp terminals exclusively
  • Solder after crimping for maximum reliability in critical applications
  • Use gold-plated or tinned terminals for corrosion resistance
  • Replace plastic electrical tape with marine-grade heat shrink

Using Marine-Grade Components Exclusively

Component quality directly impacts reliability in marine environments:

Marine-Grade Requirements:

  • Tinned copper wire throughout to resist corrosion
  • Sealed connectors with proper environmental ratings (IP67 or better)
  • Marine-rated circuit breakers and fuses
  • Corrosion-resistant terminals and connectors
  • UV-resistant wire insulation and heat shrink
  • Ignition-protected components where required

Quality Indicators:

  • ABYC (American Boat and Yacht Council) compliance
  • UL marine listing where applicable
  • ISO marine standards compliance
  • Manufacturer specifications for marine use
  • Tinned vs. bare copper construction
  • Environmental sealing ratings

Component Sources:

  • Purchase from marine electrical suppliers rather than automotive sources
  • Use OEM Volvo Penta components for critical systems
  • Verify marine ratings rather than assuming suitability
  • Invest in quality—cheap electrical components fail quickly in marine environments

Advanced Diagnostic Procedures

Professional-level diagnostics can identify problems before complete failure:

Diagnostic Equipment:

  • Volvo Penta VODIA diagnostic software and interface
  • Digital multimeter for voltage, resistance, and continuity testing
  • Oscilloscope for analyzing communication signals and voltage patterns
  • Infrared thermometer for identifying hot spots indicating electrical problems
  • Megohmmeter for testing insulation resistance

Testing Procedures:

  • Read and document all fault codes stored in ECM
  • Test voltage at all critical points under load conditions
  • Verify communication bus signal quality and timing
  • Measure sensor outputs and compare to specifications
  • Test actuator response to ECM commands
  • Perform insulation resistance tests on wiring harnesses
  • Check ground integrity throughout system

Interpretation:

  • Intermittent fault codes often indicate connection problems
  • Multiple unrelated codes may point to MDI or ECM failure
  • Voltage irregularities suggest power supply issues
  • Communication errors indicate wiring or module problems

Preventive Maintenance: Protecting Electronic Systems

Environmental Protection Strategies

Proactive environmental management prevents most electronic failures:

Moisture Control:

  • Install and maintain bilge pumps ensuring dry bilge conditions
  • Repair all water leaks immediately (cooling, exhaust, hull penetrations)
  • Ensure proper engine compartment ventilation to reduce condensation
  • Install dehumidifiers in enclosed engine compartments during storage
  • Use moisture-absorbing products during extended storage periods
  • Verify deck drains and hatches seal properly preventing rain intrusion

Temperature Management:

  • Install heat shields between exhaust components and electrical systems
  • Ensure adequate engine compartment ventilation during operation
  • Consider ventilation fans in enclosed engine rooms
  • Monitor engine compartment temperatures with thermometers
  • Avoid running engines with closed compartments in hot weather

Corrosion Prevention:

  • Flush engine compartments with fresh water after saltwater exposure
  • Apply corrosion-preventive sprays to electrical connections quarterly
  • Install sacrificial anodes on underwater metals affecting stray current
  • Maintain proper galvanic isolation systems
  • Monitor and correct any stray current problems immediately

Regular Inspection and Testing Protocols

Systematic inspection identifies developing problems before failure:

Monthly Inspections:

  • Visual examination of all visible electrical connections
  • Check battery terminals for corrosion and tightness
  • Verify battery voltage with multimeter
  • Look for new corrosion, moisture, or damage
  • Check engine compartment for leaks or standing water

Quarterly Inspections:

  • Remove connector boots and inspect connection quality
  • Clean and protect all connections
  • Test battery capacity under load
  • Verify charging system voltage regulation
  • Inspect wiring harnesses for chafing, cracking, or damage
  • Document any changes or developing issues

Annual Comprehensive Service:

  • Complete electrical system testing including voltage drop tests
  • Professional diagnostic scan of all engine systems
  • Load testing of batteries and charging system
  • Detailed inspection of MDI and ECM mounting and connections
  • Wiring harness continuity and insulation resistance testing
  • Update any available ECM software or calibration files
  • Replace components showing signs of degradation before failure

Documentation:

  • Maintain log of all inspections with findings
  • Track voltage readings over time to identify declining trends
  • Photograph connections showing corrosion progression
  • Record all fault codes even if intermittent
  • Document environmental conditions and any water intrusion events

Seasonal Maintenance for Stored Vessels

Proper storage procedures prevent damage during inactive periods:

Pre-Storage Preparation:

  • Fully charge batteries before storage
  • Apply corrosion inhibitor to all electrical connections
  • Disconnect batteries or install battery maintainers
  • Clean and dry engine compartment thoroughly
  • Install moisture absorbers in engine compartment
  • Verify all hatches and compartment covers seal properly
  • Document pre-storage condition with photos

During Storage:

  • Check batteries monthly and maintain charge
  • Inspect for moisture accumulation or water intrusion
  • Verify ventilation is adequate
  • Check for evidence of rodent activity around wiring
  • Test battery maintainers are functioning properly

Spring Recommissioning:

  • Fully charge batteries and load test
  • Inspect all electrical connections for corrosion developed during storage
  • Clean and protect any corroded connections
  • Remove moisture absorbers
  • Verify all systems function before launching
  • Perform diagnostic scan to verify electronic systems
  • Clear any fault codes that accumulated during storage

Upgrade Considerations for Aging Systems

Proactive upgrades can prevent catastrophic failures:

When to Consider Upgrades:

  • MDI modules over 10 years old in service
  • Repeated electrical problems despite maintenance
  • Plans for extended cruising where reliability is critical
  • After major electrical system repairs
  • When related components (ECM, sensors) are replaced

Upgrade Options:

  • Replacement of aging MDI modules proactively
  • Improved mounting systems with better vibration isolation
  • Enhanced corrosion protection for connections
  • Battery system upgrades for improved voltage stability
  • Addition of voltage stabilizers or conditioners
  • Installation of remote monitoring systems for early problem detection
  • Wiring harness replacement if showing widespread degradation

Cost-Benefit Analysis:

  • Compare proactive replacement cost versus emergency repair during breakdown
  • Consider value of reliability for your usage patterns
  • Account for improvements in newer component designs
  • Factor in labor costs for multiple repair attempts versus single upgrade
  • Consider peace of mind for cruising plans

Advanced Troubleshooting Techniques

Isolating MDI vs. ECM Failures

Distinguishing between MDI and ECM problems prevents unnecessary replacements:

Diagnostic Indicators:

MDI Failure Patterns:

  • Complete loss of communication with diagnostic equipment
  • Dashboard displays blank while engine runs normally
  • Inability to read or clear fault codes
  • Engine operates but with no control over functions
  • No response from electronic controls

ECM Failure Patterns:

  • Diagnostic communication works but engine won't start
  • Fault codes related to sensor or actuator circuits
  • Engine runs in limp mode with reduced power
  • Multiple sensor readings out of range simultaneously
  • Engine protection shutdowns with appropriate codes

Testing Procedures:

  • Attempt communication with diagnostic software
  • Monitor communication bus signals with oscilloscope
  • Test power supply to both MDI and ECM
  • Verify all connections between modules
  • Substitute known-good MDI if available for testing
  • Check for voltage irregularities during problem occurrence

Dealing With Intermittent Electrical Problems

Intermittent failures require systematic diagnostic approaches:

Documentation Strategy:

  • Record exact conditions when problems occur (temperature, time, load conditions)
  • Note if problems correlate with specific operations (starting, shifting, high RPM)
  • Track environmental factors (rough seas, rain, temperature extremes)
  • Document any patterns in problem frequency or timing

Testing Approaches:

  • Perform testing under conditions that trigger problems
  • Use data logging equipment to capture events
  • Vibration testing by running engine while monitoring for faults
  • Thermal cycling testing by allowing engine to cool then retest
  • Moisture testing by misting connections while monitoring

Common Intermittent Causes:

  • Corroded connections showing high resistance when warm
  • Cracked solder joints that separate during vibration or thermal expansion
  • Loose connectors that disconnect momentarily during vibration
  • Moisture that enters connections only during specific conditions
  • Voltage drops during high-load situations

Communication Bus Diagnostics

Modern Volvo Penta engines use CAN bus communication requiring specialized diagnosis:

Bus Communication Basics:

  • CAN (Controller Area Network) allows multiple modules to communicate on shared wires
  • Communication uses differential signaling requiring two wires (CAN-High and CAN-Low)
  • Termination resistors at bus ends prevent signal reflections
  • Any interruption or corruption affects entire system communication

Testing CAN Bus:

  • Measure resistance between CAN-High and CAN-Low (should be 60 ohms with proper termination)
  • Test voltage on CAN-High and CAN-Low relative to ground (should be approximately 2.5V at rest)
  • Monitor signal quality with oscilloscope during operation
  • Verify all module connections to bus
  • Check for corroded or damaged bus wiring
  • Test termination resistors for proper value

Common Bus Problems:

  • Corroded connectors creating high resistance
  • Damaged wiring creating short circuits or opens
  • Failed termination resistors causing signal reflections
  • Module failures loading bus and preventing communication
  • Aftermarket equipment improperly connected to bus

Electrical System Reliability Through Vigilance

Modern Volvo Penta engines deliver exceptional performance and efficiency through sophisticated electronic control systems, but this technology demands proper understanding, maintenance, and environmental protection to achieve reliable service. The MDI module, while a known weak point in D1 and D2 series engines, represents just one component in a complex electrical ecosystem that requires comprehensive care.

Key Principles for Electrical System Longevity:

  • Environmental protection is paramount: Keep connections clean, dry, and protected from corrosion
  • Quality components matter: Marine-grade materials withstand harsh conditions far better than automotive parts
  • Proper installation prevents problems: Correct mounting and wiring practices eliminate many failure modes
  • Regular maintenance finds problems early: Systematic inspection and testing identifies issues before catastrophic failure
  • Voltage stability is essential: Clean, stable power within specifications ensures proper electronic system operation
  • Professional diagnosis saves time and money: Complex electronic problems often require specialized equipment and expertise

Proactive Approach Benefits:

Electrical system failures can strand vessels in dangerous situations, while proactive maintenance provides:

  • Reliable engine starting and operation
  • Early problem detection before catastrophic failures
  • Extended component service life
  • Reduced overall maintenance costs
  • Confidence for extended cruising
  • Maintained vessel value

The investment in proper electrical system maintenance—quality components, regular inspection, environmental protection, and timely replacement of aging modules—far exceeds the cost and inconvenience of unexpected failures. Modern marine electronic systems are remarkably reliable when properly maintained, but unforgiving when neglected.

By understanding the vulnerabilities of electronic engine management systems, recognizing early warning signs, and implementing comprehensive preventive maintenance protocols, Volvo Penta owners can ensure their engines deliver the reliable performance these advanced powerplants are engineered to provide. The electronic systems that seem mysterious and intimidating become manageable and dependable when approached with knowledge, proper tools, and commitment to systematic care.

Success with modern marine electronics requires accepting that these systems demand different maintenance approaches than purely mechanical engines. The reward for this vigilance is exceptional reliability, superior performance, and the confidence to venture further, knowing your engine's electronic systems will function flawlessly when you need them most.
